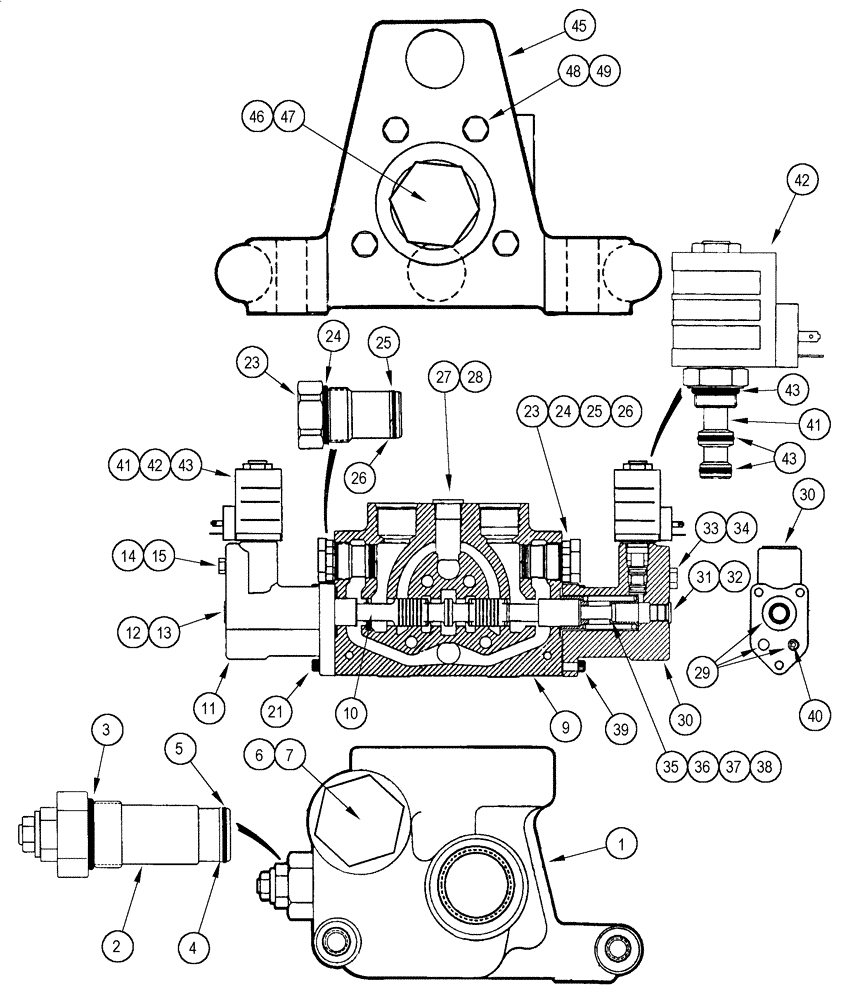

227084A1
VALVE
Consists Of: Ref. 1 - 49
1шт.
245496A1
LARGE PLATE
PLATE, LARGE Inlet, Consists Of: Ref. 1 - 8
1шт.
1
245501A1
LARGE PLATE
PLATE, LARGE
1шт.
Part of large plate P/N 245496A1
1шт.
245502A1
VALVE
Consists Of: Ref. 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
BODY
1шт.
Part of large plate P/N 245496A1
1шт.
Part of valve P/N 245502A1
1шт.
3
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
Part of large plate P/N 245496A1
1шт.
Part of valve P/N 245502A1
1шт.
4
D51530
RING
1шт.
Part of large plate P/N 245496A1
1шт.
Part of valve P/N 245502A1
1шт.
5
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
1шт.
Part of large plate P/N 245496A1
1шт.
Part of valve P/N 245502A1
1шт.
6
273916
PLUG,Hex, 1-5/16" - 12 ORB
Includes Ref. 7
1шт.
Part of large plate P/N 245496A1
1шт.
7
237-6016
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
Part of large plate P/N 245496A1
1шт.
Part of plug P/N 218-5160
1шт.
8
245503A1
SEAL KIT
See note, Not Illustrated
1шт.
Part of large plate P/N 245496A1
1шт.
245497A1
ELEMENT
Consists Of: Ref. 9 - 15
1шт.
9
NSS
NOT SOLD SEPARAT
BODY
1шт.
Part of element P/N 245497A1
1шт.
10
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
Part of element P/N 245497A1
1шт.
245504A1
SOLENOID
Port B End, Consists Of: Ref. 11 - 22
1шт.
12
76349
PLUG,9/16" - 18 ORB
Incl. Ref 13
1шт.
Part of element P/N 245497A1
1шт.
Part of solenoid P/N 245504A1
1шт.
13
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of element P/N 245497A1
1шт.
Part of solenoid P/N 245504A1
1шт.
Part of plug P/N 218-5155
1шт.
14
9672438
PLUG,7/16" - 20 ORB
Incl. Ref. 15
1шт.
Part of element P/N 245497A1
1шт.
Part of solenoid P/N 245504A1
1шт.
15
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
Part of element P/N 245497A1
1шт.
Part of solenoid P/N 245504A1
1шт.
Part of plug P/N 218-5153
1шт.
245510A1
SPRING
Consists Of: Ref. 16 - 20, Not Illustrated
1шт.
16
NSS
NOT SOLD SEPARAT
SEAT Spring
1шт.
Part of solenoid P/N 245504A1
1шт.
Part of spring P/N 245510A1
1шт.
17
NSS
NOT SOLD SEPARAT
SPRING
1шт.
Part of solenoid P/N 245504A1
1шт.
Part of spring P/N 245510A1
1шт.
18
NSS
NOT SOLD SEPARAT
PLUNGER
1шт.
Part of solenoid P/N 245504A1
1шт.
Part of spring P/N 245510A1
1шт.
19
NSS
NOT SOLD SEPARAT
STOP
1шт.
Part of solenoid P/N 245504A1
1шт.
Part of spring P/N 245510A1
1шт.
20
NSS
NOT SOLD SEPARAT
COLLAR
1шт.
Part of solenoid P/N 245504A1
1шт.
Part of spring P/N 245510A1
1шт.
21
193-558
SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"
1/4 x 7/8
3шт.
Part of solenoid P/N 245504A1
1шт.
22
245511A1
SET SCREW
Not Illustrated
1шт.
Part of solenoid P/N 245504A1
1шт.
245506A1
PLUG
Consists Of: Ref. 23 - 26
2шт.
23
NSS
NOT SOLD SEPARAT
PLUG
1шт.
Part of plug P/N 245506A1
1шт.
24
238-6023
O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro
1шт.
Part of plug P/N 245506A1
1шт.
25
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
Part of plug P/N 245506A1
1шт.
26
L35295
SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk
1шт.
Part of plug P/N 245506A1
1шт.
27
86512512
PLUG,7/8" - 14 ORB
Incl. 28
1шт.
28
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Part of plug P/N 218-5157
1шт.
29
245507A1
SEAL KIT
See Note
2шт.
245505A1
SOLENOID
Port A End, Consists Of: Ref. 30 - 40
1шт.
30
245512A1
BODY
1шт.
Part of solenoid P/N 245505A1
1шт.
31
76349
PLUG,9/16" - 18 ORB
Incl. Ref 32
1шт.
Part of solenoid P/N 245505A1
1шт.
32
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of plug P/N 218-5155
1шт.
Part of solenoid P/N 245505A1
1шт.
33
9672438
PLUG,7/16" - 20 ORB
Incl. Ref. 34
1шт.
Part of solenoid P/N 245505A1
1шт.
34
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
Part of plug P/N 218-5153
1шт.
Part of solenoid P/N 245505A1
1шт.
245513A1
SPRING
Consists Of: Ref. 35 - 38
1шт.
35
NSS
NOT SOLD SEPARAT
SEAT Spring
1шт.
Part of solenoid P/N 245505A1
1шт.
Part of spring P/N 245513A1
1шт.
36
NSS
NOT SOLD SEPARAT
SPRING
1шт.
Part of solenoid P/N 245505A1
1шт.
Part of spring P/N 245513A1
1шт.
37
NSS
NOT SOLD SEPARAT
PLUNGER
1шт.
Part of solenoid P/N 245505A1
1шт.
Part of spring P/N 245513A1
1шт.
38
NSS
NOT SOLD SEPARAT
COLLAR
1шт.
Part of solenoid P/N 245505A1
1шт.
Part of spring P/N 245513A1
1шт.
39
193-558
SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"
1/4 x 7/8
3шт.
Part of solenoid P/N 245505A1
1шт.
245508A1
SOLENOID VALVE
Consists Of: Ref. 41, 42 and 43
2шт.
245516A1
SET OF PARTS
Consists Of: Ref. 42 and 43
1шт.
41
NSS
NOT SOLD SEPARAT
TUBE
1шт.
Part of solenoid P/N 245508A1
1шт.
245514A1
SOLENOID
Consists Of Ref. 42
1шт.
42
245515A1
COIL ASSY.
12V
1шт.
Part of solenoid P/N 245508A1
1шт.
Part of set of parts P/N 245516A1
1шт.
Part of set of parts P/N 245514A1
1шт.
43
245517A1
SEAL KIT
Seal
1шт.
Part of solenoid P/N 245508A1
1шт.
Part of set of parts P/N 245516A1
1шт.
44
245503A1
SEAL KIT
See note, Not Illustrated
1шт.
Part of large plate P/N 245498A1
1шт.
245498A1
LARGE PLATE
PLATE, LARGE Outlet, Consists Of: Ref. 44, 45 and 46
1шт.
45
245518A1
LARGE PLATE
PLATE, LARGE
1шт.
Part of large plate P/N 245498A1
1шт.
46
273916
PLUG,Hex, 1-5/16" - 12 ORB
Includes Ref. 47
1шт.
Part of large plate P/N 245498A1
1шт.
47
237-6016
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
Part of plug P/N 218-5160
1шт.
245499A1
SET OF PARTS
Consists Of: Ref. 48 and 49
1шт.
48
NSS
NOT SOLD SEPARAT
BOLT
4шт.
Part of set of parts P/N 245499A1
1шт.
49
NSS
NOT SOLD SEPARAT
WASHER Lock
4шт.
Part of set of parts P/N 245499A1
1шт.
Note : 245507A1 Seal Package Is Used Between The Solenoid Valves and The Control Valve Body. 245503A1 Seal Package Is Used Between The Valve Covers and The Control Valve Body.
1шт.
