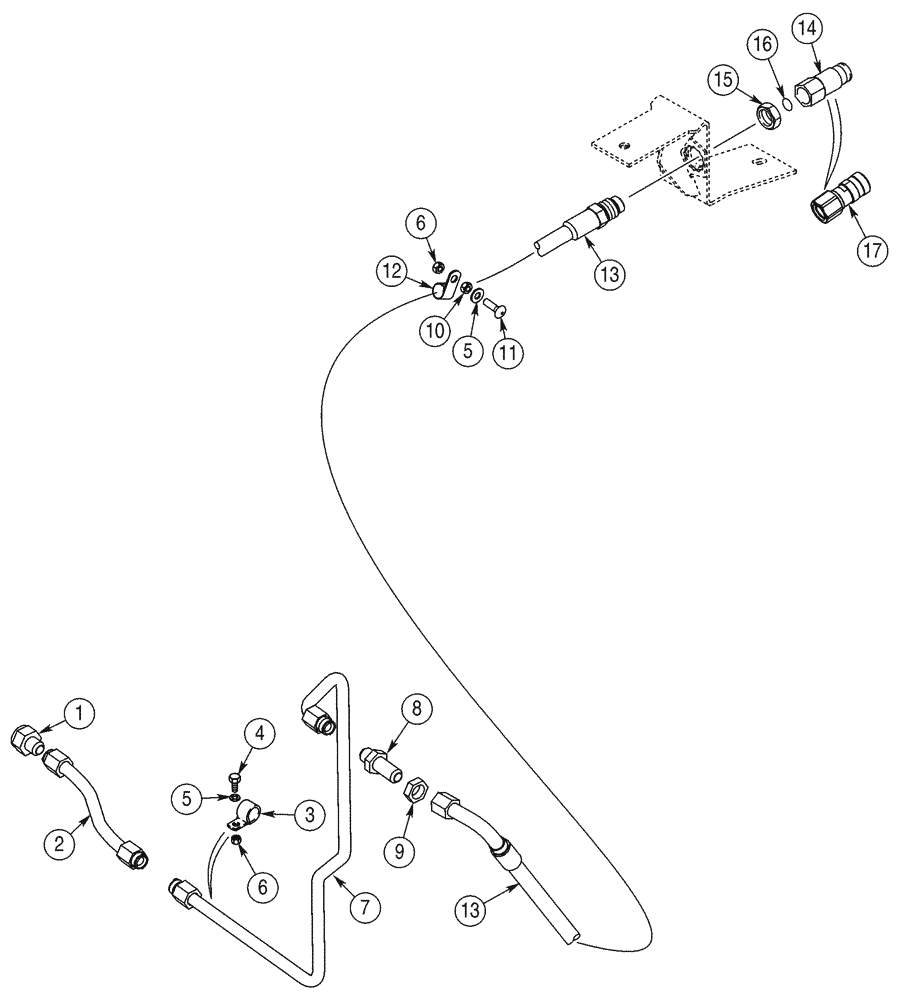

Запчасти Case 85XT (08-36) - HYD, ATTACHMENT HI FLOW, GEAR, DRAIN LINES TO COUPLING, N AMERICAN JAF0352234-, EUROPEAN JAF0352715- (08) - HYDRAULICS

1

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8

1шт.

2

426612A1

TUBE

1шт.

3

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

7

426610A2

TUBE

Case Drain

1шт.

8

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

Fit stl bulkhd .625MJ .625MJ

1шт.

9

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

13

294188A1

HOSE

3050 mm (120-1/8 in.)

1шт.

14

393397A1

COUPLING

Male, Component Parts Not Serviced Separately

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

436434A1

COUPLING, QUICK, FEM

Female

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
