Запчасти Case 85XT (08-34) - HYD, ATTACH HI FLO, GEAR, CHARGE PRESSURE/PILOT RELIEF LINES, N AMER JAF0352234-, EURO JAF0352715- (08) - HYDRAULICS

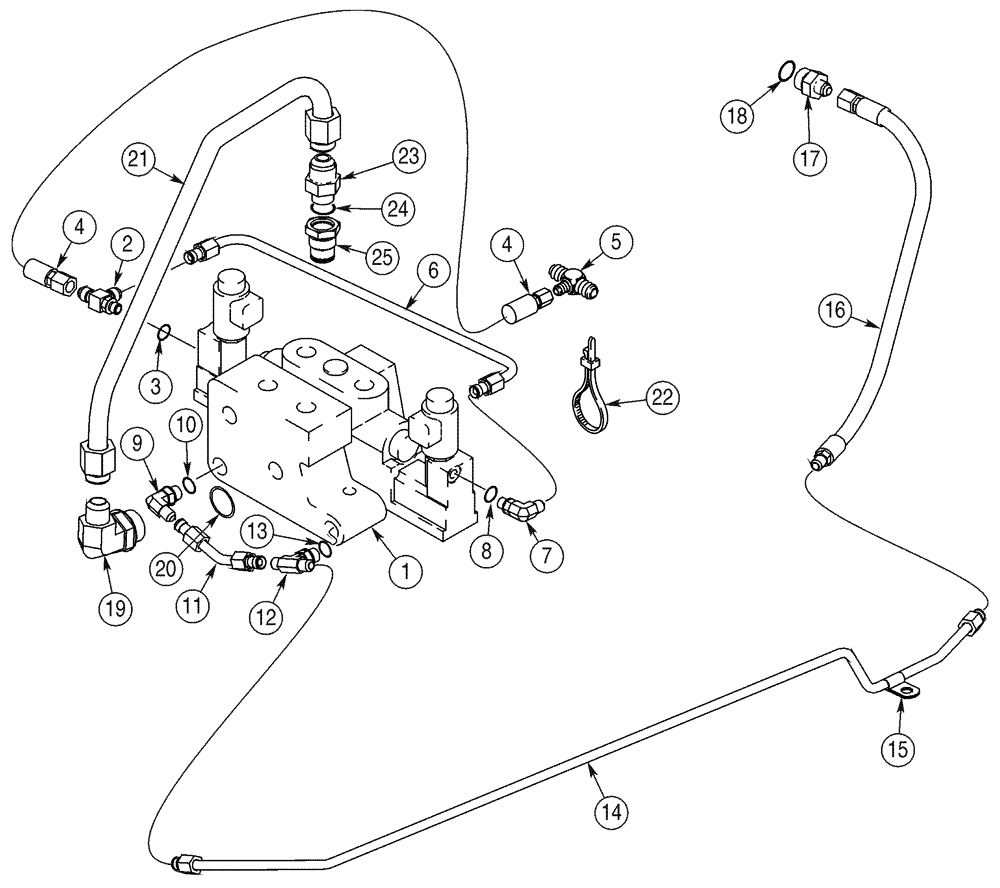

Схема запчастей Case 85XT - (08-34) - HYD, ATTACH HI FLO, GEAR, CHARGE PRESSURE/PILOT RELIEF LINES, N AMER JAF0352234-, EURO JAF0352715- (08) - HYDRAULICS
22
12
23
4
16
21
19
10
24
2
1
15
20
9
4
25
17
3
7
11
18
14
5
8
13
6

Артикул

Название

Примечание

Количество

1

227084A1

VALVE

See Figure 08-37

1шт.

2

255403A1

TEE

Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of tee P/N 255403A1

1шт.

4

416706A1

HOSE ASSY.

Pilot Return, 433 mm (17 in.)

1шт.

5

218-1581

TEE,37º, 3/4"-16 x 7/16"-20, Br

For Attaching Parts, See Page 8-137, Ref. 2 and 7

1шт.

6

254835A4

TUBE,9.53 mm OD, 406, 71 mm Length

Pilot Relief Jumper

1шт.

7

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5278

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes: Ref. 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.

11

236528A4

TUBE,9.53 mm OD

Charge Jumper

1шт.

12

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes: Ref. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of tee P/N 218-5182

1шт.

14

416407A1

TUBE

Charge Pressure

1шт.

15

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

16

416423A1

HOSE ASSY.

540 mm (21-1/4 in.)

1шт.

17

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5354

1шт.

19

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5118

1шт.

21

416154A2

TUBE

Power Beyond

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

23

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5065

1шт.

25

417368A1

SLEEVE

1шт.
