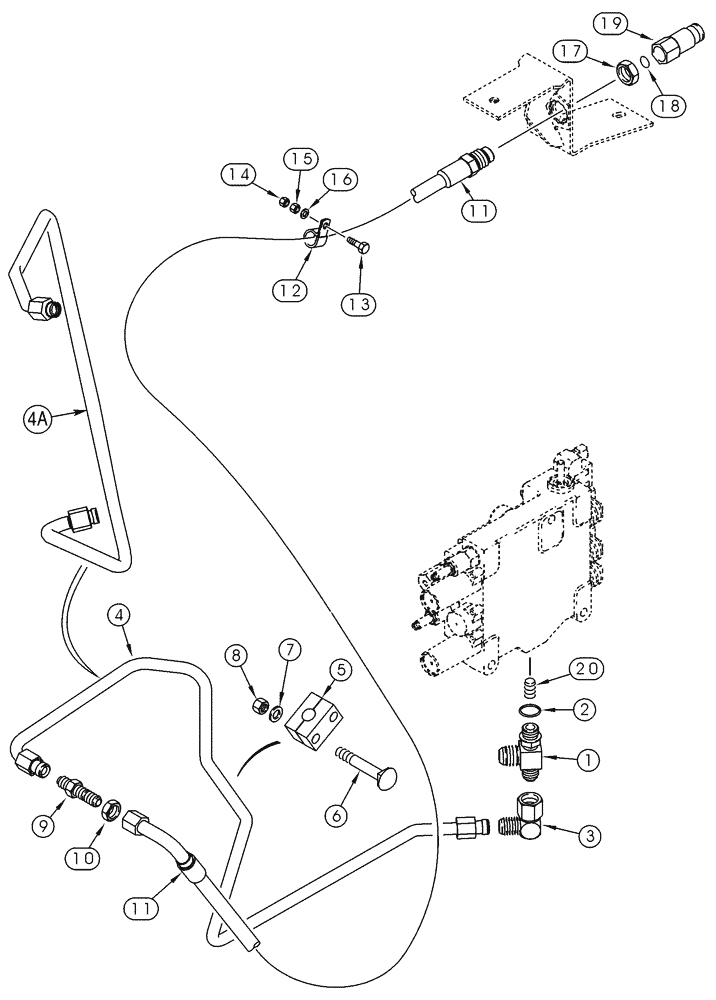

Запчасти Case 85XT (08-31) - HYD, ATTACHMENT HIGH FLOW, GEAR, DRAIN LINES TO COUPLING, N. AMER. -JAF0352233, EURO. -JAF0352714 (08) - HYDRAULICS

1

257868A1

TEE

Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of tee P/N 257868A1

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

4

259784A5

PIPE

Replaces: 259784A3, 259784A4, No Longer Used, Order 259784A6, Ref. 4A

1шт.

4a

259784A6

TUBE,843.44, 550.64 mm Length

1шт.

5

254830A1

CLAMP BRACKET

2-Piece

1шт.

6

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

7

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

8

832-41306

NUT,M6 x 1, Cl 10

2шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

Fit stl bulkhd .625MJ .625MJ

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

11

294188A1

HOSE

3050 mm (120-1/8 in.)

1шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

13

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

14

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

17

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

122180A1

COUPLING, BREAK AWAY

Male, See Figure 08-26

1шт.

20

217-434

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 PT

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
