Запчасти Case 85XT (08-28) - HYD, ATTACHMENT HI FLOW, GEAR, SPLY & RETURN TO PUMP, N. AMERICAN -JAF0352233, EUROPEAN -JAF0352714 (08) - HYDRAULICS

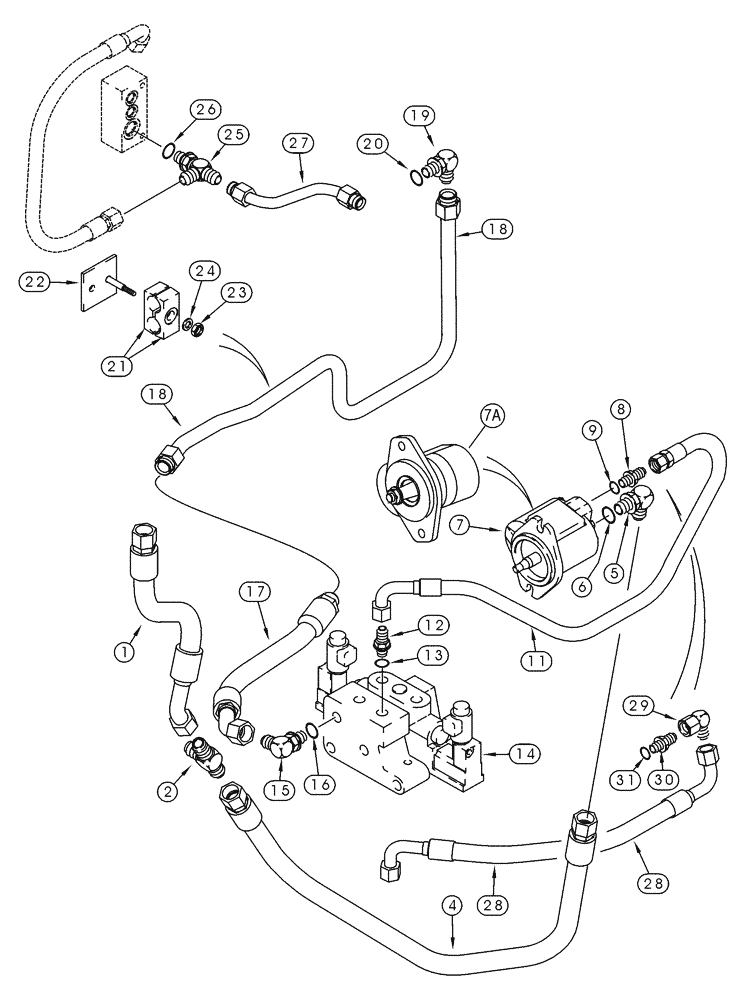

Схема запчастей Case 85XT - (08-28) - HYD, ATTACHMENT HI FLOW, GEAR, SPLY & RETURN TO PUMP, N. AMERICAN -JAF0352233, EUROPEAN -JAF0352714 (08) - HYDRAULICS
8
14
27
31
6
24
2
28
5
11
15
13
30
22
23
18
12
9
18
21
4
16
20
19
7
26
29
25
28
1
7a
17

Артикул

Название

Примечание

Количество

1

282076A1

HOSE,585.00 mm

1шт.

2

218-558

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

4

278513A1

HOSE ASSY.

1195 mm (47 in.)

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5110

1шт.

7

254521A1

PUMP, HYDRAULIC

See Figure 08-27, Ref. 1, No Longer Available, Order 323427A1, Ref. 7A

1шт.

7a

323427A1

PUMP, HYDRAULIC

See Figure 08-27, Ref. 1A

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or, -JAF0236483, Includes: Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5063

1шт.

11

279877A1

HOSE ASSY.

1160 mm (45-3/4 in.), -JAF0236483

1шт.

12

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5077

1шт.

14

227084A1

VALVE

See Figure 08-37

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5110

1шт.

17

258888A1

HYDRAULIC HOSE

584 mm (23 in.)

1шт.

18

304347A1

PIPE

To Filter, See Page(s) 6-5, Replaces: 275235A3

1шт.

19

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5110

1шт.

21

225529A1

CLAMP,Dual, 25.4mm ID

2-Piece

1шт.

22

278886A1

RETAINER

1шт.

23

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

25

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x Or, See Page(s) 6-9, Replaces: Ref. 2, Includes: 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5239

1шт.

27

275241A3

PIPE

Replaces: 275241A2

1шт.

28

303841A1

HOSE ASSY.

635 mm (25 in.), JAF0236484-

1шт.

29

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

JAF0236484-

1шт.

30

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x Or, JAF0236484-, Includes: Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5030

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 37
