(08-22) - AUXILIARY VALVE AND MOUNTING

Запчасти Case 85XT (08-22) - AUXILIARY VALVE AND MOUNTING (08) - HYDRAULICS

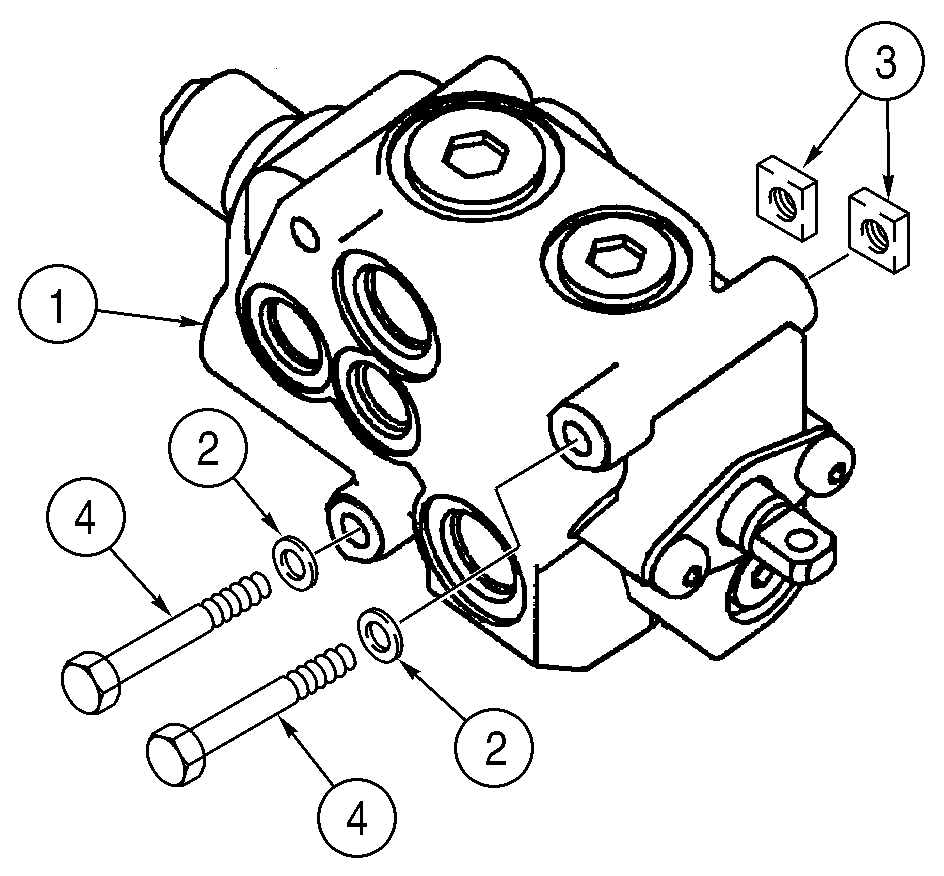

Схема запчастей Case 85XT - (08-22) - AUXILIARY VALVE AND MOUNTING (08) - HYDRAULICS
2
1
2
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

417369A1

VALVE

1-Spool, Auxiliary, See Figure 08-08, Component Parts Not Serviced Separately

1шт.

3

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

2шт.

4

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 x 95

2шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
