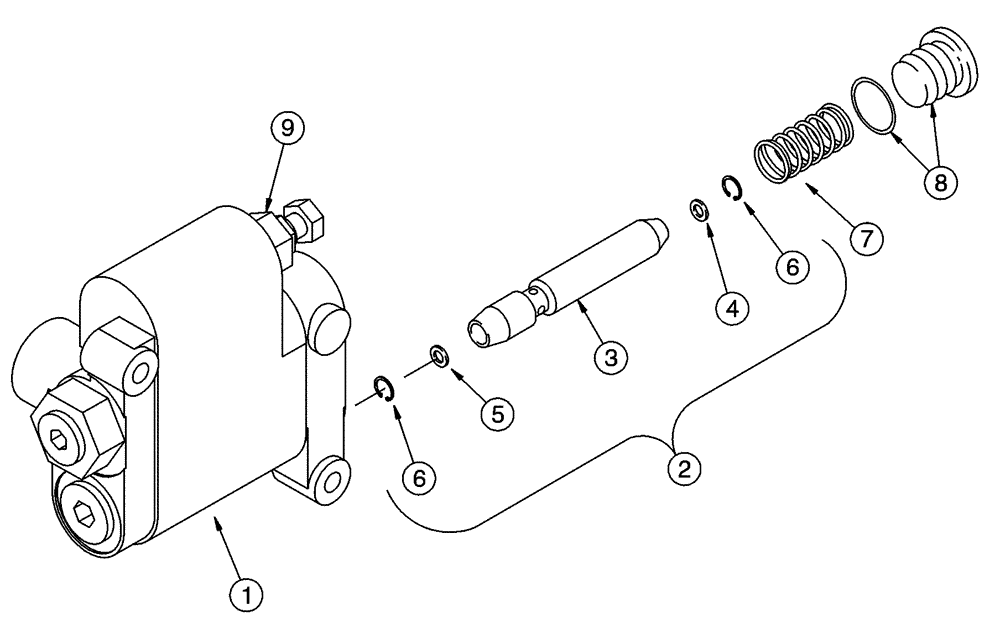

Запчасти Case 85XT (08-21) - VALVE, SELF LEVEL (08) - HYDRAULICS

280126A2

VALVE

Consists Of: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

345684A1

SEAL KIT

Consists Of: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

Part of seals package P/N 345684A1

1шт.

304131A1

SET OF PARTS

Consists Of: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

ORIFICE Outer

1шт.

Part of seals package P/N 345684A1

1шт.

Part of set of parts P/N 304131A1

1шт.

5

NSS

NOT SOLD SEPARAT

ORIFICE Inner

1шт.

Part of seals package P/N 345684A1

1шт.

Part of set of parts P/N 304131A1

1шт.

6

NSS

NOT SOLD SEPARAT

RING Retaining

2шт.

Part of seals package P/N 345684A1

1шт.

Part of set of parts P/N 304131A1

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING

1шт.

Part of set of parts P/N 304131A1

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG

1шт.

Part of set of parts P/N 304131A1

1шт.

9

345682A1

VALVE

1шт.
