Запчасти Case 85XT (08-20) - VALVE, CONTROL VALVES, RELIEF, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352715 (08) - HYDRAULICS

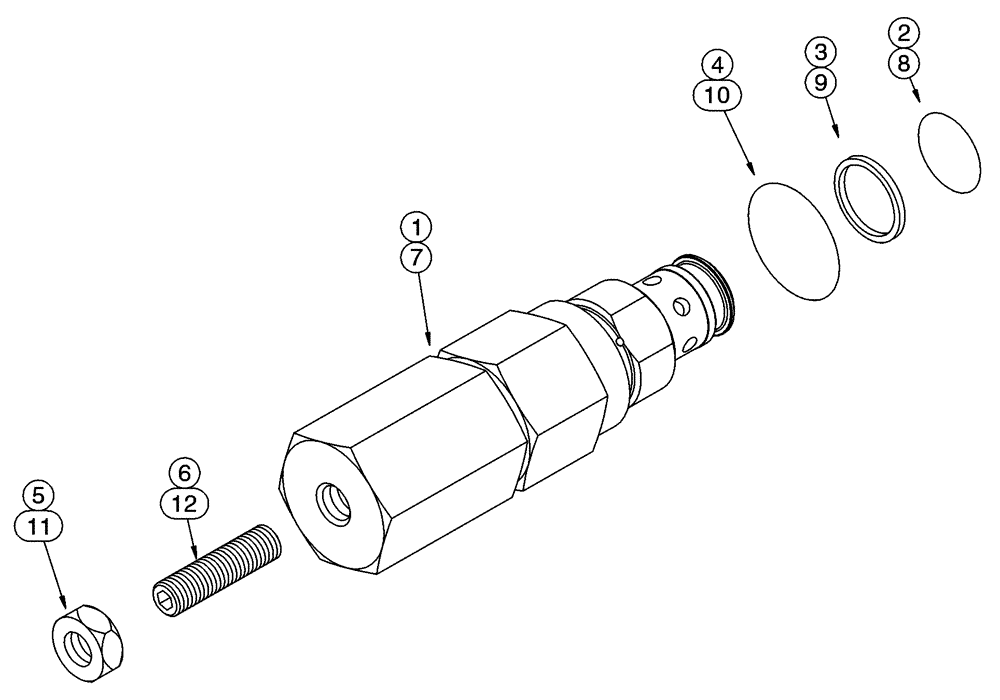

Схема запчастей Case 85XT - (08-20) - VALVE, CONTROL VALVES, RELIEF, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352715 (08) - HYDRAULICS
3
6
1
11
10
9
5
2
12
8
7
4

Артикул

Название

Примечание

Количество

234828A1

VALVE

3100 psi, For Service Of External Seals, Internal Component Parts Are Serviced Separately, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of valve P/N 234828A1

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of valve P/N 234828A1

1шт.

3

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

Part of valve P/N 234828A1

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of valve P/N 234828A1

1шт.

5

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

Part of valve P/N 234828A1

1шт.

6

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NFx1-1/4

1шт.

Part of valve P/N 234828A1

1шт.

186709A1

VALVE

3800 psi, For Service Of External Seals, Internal Component Parts Are Serviced Separately, Includes: Ref. 7 - 12

2шт.

7

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of valve P/N 186709A1

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of valve P/N 186709A1

1шт.

9

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

Part of valve P/N 186709A1

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of valve P/N 186709A1

1шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

Part of valve P/N 186709A1

1шт.

12

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NFx1-1/4

1шт.

Part of valve P/N 186709A1

1шт.

249533A1

SEAL KIT

Seal, Consists Of: Ref. 7, 12 (8-67); Ref. 18 - 20 (8-69); Ref. 1, 7, 9 (8-75); Ref. 18, 21 (8-77); Ref. 37, 38, 39 (8-81); Ref. 2 - 4, 8 - 10 (8-91)

1шт.

Выбрано товаров: 27
