Запчасти Case 85XT (08-19) - VALVE ASSY, CONTROL SPOOLS & DETENTS, LOADER, N. AMERICAN JAF0352234-, EUROPEAN JAF0352715- (08) - HYDRAULICS

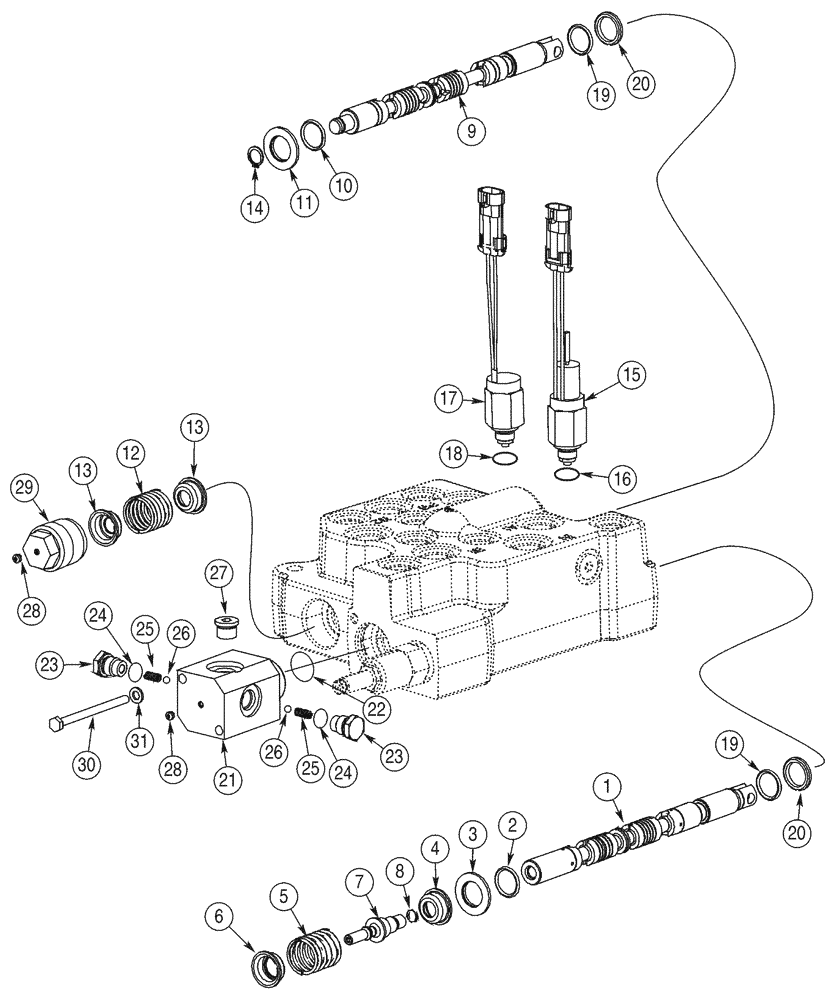

Схема запчастей Case 85XT - (08-19) - VALVE ASSY, CONTROL SPOOLS & DETENTS, LOADER, N. AMERICAN JAF0352234-, EUROPEAN JAF0352715- (08) - HYDRAULICS
20
27
9
24
11
19
30
2
14
10
18
26
23
21
22
3
25
29
6
13
26
5
31
8
1
12
19
24
15
25
4
13
28
20
28
16
7
23
17

Артикул

Название

Примечание

Количество

409062A2

VALVE

Loader, Two-Spool, Consists Of: Ref. 1 - 31, Also Includes 8-73, 8-73B, If Used

1шт.

Used with lift spool P/N 388170A3

1шт.

Used with loader bucket spool P/N 388173A3

1шт.

Used with spool lock solenoid P/N 411874A2

1шт.

Used with spool lock solenoid P/N 411875A2

1шт.

Used with block P/N 417360A1

1шт.

388170A2

SPOOL

Lift, With Manual Detent, Used With 409063A1, Consists Of: Ref. 1 - 8

1шт.

388170A3

SPOOL

Lift, With Manual Detent, Used With 409063A2, 409062A2, Consists Of: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL Loader Lift

1шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

2

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

3

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

4

375708A1

SPRING WASHER

1шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

5

380571A1

TENSION SPRING

1шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

6

375707A1

RETAINER

1шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

383471A1

Manual Detent, Not Serviced As An Assembly, Order Components, Consists Of: Ref. 7 - 8

1шт.

7

383472A1

DETENT

Use Loctite

1шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

Part of manual detent P/N 383471A1

1шт.

345-601

LOCTITE

No. 203, 1 ml

1шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

388173A2

SPOOL

Loader Bucket, Auxiliary, Used With 409063A1, Consists Of: Ref. 9 - 14

1шт.

388173A3

SPOOL

Loader Bucket, Auxiliary, Used With 409063A2, 409062A2, Consists Of: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

Part of loader bucket spool P/N 388173A2

1шт.

Part of loader bucket spool P/N 388173A3

1шт.

10

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

Part of loader bucket spool P/N 388173A2

1шт.

Part of loader bucket spool P/N 388173A3

1шт.

11

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

Part of loader bucket spool P/N 388173A2

1шт.

Part of loader bucket spool P/N 388173A3

1шт.

12

380571A1

TENSION SPRING

1шт.

Part of loader bucket spool P/N 388173A2

1шт.

Part of loader bucket spool P/N 388173A3

1шт.

13

375708A1

SPRING WASHER

2шт.

Part of loader bucket spool P/N 388173A2

1шт.

Part of loader bucket spool P/N 388173A3

1шт.

14

100-1647

SNAP RING,#47, Ext

1шт.

Part of loader bucket spool P/N 388173A2

1шт.

Part of loader bucket spool P/N 388173A3

1шт.

15

411874A1

SOLENOID

Spool Lock, Used With 409063A1, Includes: Ref. 16

1шт.

15

411874A2

SOLENOID

Spool Lock, Used Eith 409063A2, 409062A2, Includes: Ref. 16

1шт.

17

411875A1

SOLENOID

Spool Lock, Used With 409063A1, Includes: Ref. 18

1шт.

17

411875A2

SOLENOID

Spool Lock, Used With 409063A2, 409062A2, Includes: Ref. 18

1шт.

19

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

20

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

21

409026A1

BODY

Used With 409063A1

1шт.

21

417360A1

BLOCK

Used With 409063A2, 409062A2

1шт.

22

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

1шт.

23

409916A1

PLUG

Includes: Ref. 24

2шт.

25

399853A1

TENSION SPRING

Detent

2шт.

26

211-1007

BALL,7/32" Dia

Gr 24, CRS

2шт.

27

9625178

PLUG,9/16" - 18 ORB

1шт.

28

G107780

VALVE, CHECK

2шт.

29

375714A2

CAP

Centering Spring, Use Loctite

1шт.

B17423

LOCTITE

Loctite, No. 271, 50 ml

1шт.

30

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

Part of lift spool P/N 388170A2

1шт.

Part of lift spool P/N 388170A3

1шт.

Part of manual detent P/N 383471A1

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of spool lock solenoid P/N 411874A1

1шт.

Part of spool lock solenoid P/N 411874A2

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of spool lock solenoid P/N 411875A1

1шт.

Part of spool lock solenoid P/N 411875A2

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of plug P/N 409916A1

1шт.

Выбрано товаров: 82
