Запчасти Case 85XT (08-18) - VALVE, CONTROL SPOOLS AND DETENTS, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (08) - HYDRAULICS

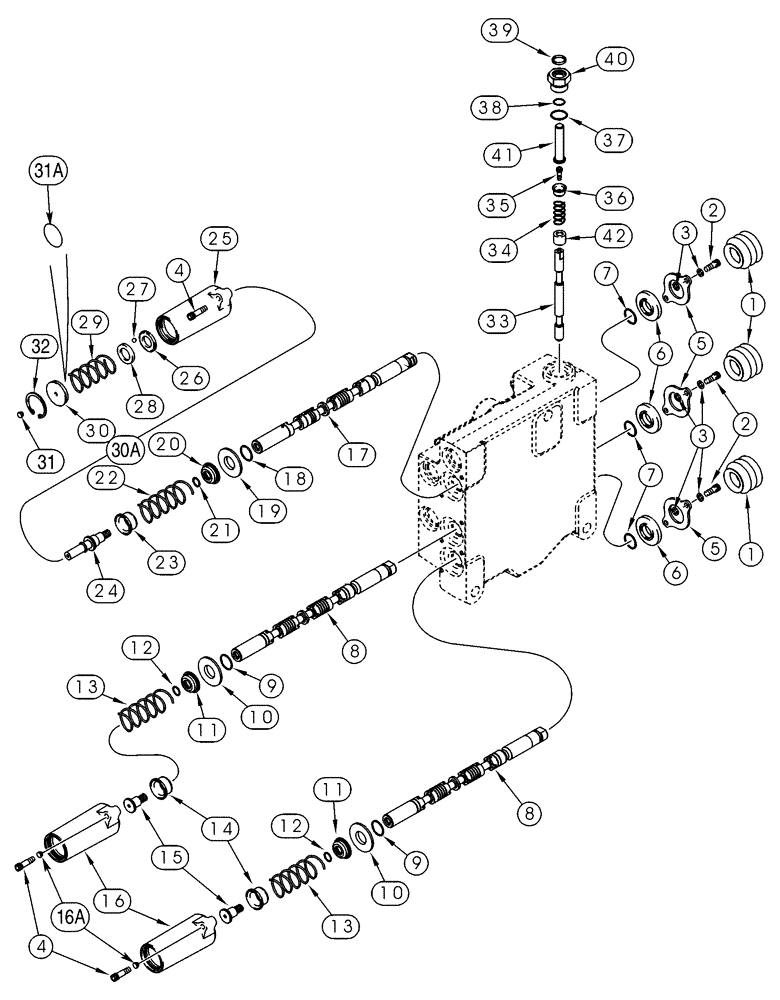

Схема запчастей Case 85XT - (08-18) - VALVE, CONTROL SPOOLS AND DETENTS, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (08) - HYDRAULICS
9
9
19
7
41
2
3
12
21
31a
26
37
2
8
10
20
14
30
16
3
40
1
4
11
29
33
10
15
11
28
22
32
42
13
34
5
13
6
24
25
23
16a
1
27
8
18
31
36
38
17
12
35
6
39
4
7
5
30a

Артикул

Название

Примечание

Количество

228188A5

VALVE

3-Spool, Replaces: 228188A2, 228188A3, 228188A4, Part Number Stamped On Part, Consists Of: Ref. 1 - 42, Also Includes 8-67, 8-69

1шт.

Used with spring P/N 311022A1

1шт.

Used with detent P/N 311616A2

1шт.

1

183707A1

BOOT

If Not Equipped On Control Valve, Order Separately

3шт.

2

61-3106

HEX SOC SCREW,#10 - 24 x 3/8"

No. 10 x 3/8

6шт.

3

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

12шт.

4

61-31016

HEX SOC SCREW,#10 - 24 x 1"

6шт.

5

183715A1

LARGE PLATE

PLATE, LARGE

3шт.

6

183711A1

RETAINER

3шт.

7

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

Replaces: G110391

3шт.

8

NSS

NOT SOLD SEPARAT

SPOOL Loader Bucket, Auxiliary

2шт.

9

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

Replaces: G110391

2шт.

10

G108630

HOLDER

2шт.

11

G108914

SPRING CUP

2шт.

12

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2шт.

13

G108915

SPRING

2шт.

14

G108913

SPRING CUP

2шт.

15

183712A1

STUD

Use Loctite

2шт.

B17577

LOCTITE

No. 242, 6 ml, Blue, If Used

1шт.

345-601

LOCTITE

No. 203, 1 ml, Silver, If Used

1шт.

326839A1

DOOR COVER

Consists Of Ref. 16 and 16A

2шт.

16

183705A2

DOOR COVER

Replaces: 183705A1

2шт.

16a

G107780

VALVE, CHECK

1шт.

322074A1

SET OF PARTS

Consists Of: Ref. 17 - 24

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL Loader Lift

1шт.

Part of set of parts P/N 322074A1

1шт.

18

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

Part of set of parts P/N 322074A1

1шт.

19

G108630

HOLDER

1шт.

Part of set of parts P/N 322074A1

1шт.

20

G108914

SPRING CUP

1шт.

Part of set of parts P/N 322074A1

1шт.

22

G108915

SPRING

1шт.

Part of set of parts P/N 322074A1

1шт.

23

G108913

SPRING CUP

1шт.

Part of set of parts P/N 322074A1

1шт.

24

307335A1

STUD

Use Loctite, Replaces: 183708A1

1шт.

Part of set of parts P/N 322074A1

1шт.

21

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

Part of set of parts P/N 322074A1

1шт.

B17577

LOCTITE

No. 242, 6 ml, Blue, If Used

1шт.

345-601

LOCTITE

No. 203, 1 ml, Silver, If Used

1шт.

183717A2

DETENT

Used In 228188A2, 228188A3, Consists Of: Ref. 25 - 32

1шт.

311616A1

DETENT

Used In 228188A4, Consists Of: Ref. 25 - 32

1шт.

311616A2

DETENT

Used In 228188A5, Consists Of: Ref. 25 - 32

1шт.

25

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

26

G108912

WASHER

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

27

511-1060

BALL,6mm Dia

Used with 321361A1

8шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

27

211-1107

BALL,7/32" Dia

7/32; 48,CRS, Used In 228188A2, 228188A3, 228188A4

8шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

28

G108911

WASHER

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

29

246844A1

SPRING

Used In 228188A2, 228188A3

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

29

311022A1

SPRING

Used In 228188A4, 228188A5

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

30

1341975C1

SPRING CUP

Used In 228188A2, 228188A3, 228188A4, No Longer Available, Order 321361A1

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

321361A1

RETAINER

Consists Of Ref. 30A, 31 and 31A

1шт.

Used with ball P/N 511-1060

1шт.

30a

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

Part of retainer P/N 321361A1

1шт.

31

G107780

VALVE, CHECK

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

Part of retainer P/N 321361A1

1шт.

31a

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

Part of retainer P/N 321361A1

1шт.

32

100-21118

SNAP RING,1.188", Int, #118

1шт.

Part of detent P/N 183717A2

1шт.

Part of detent P/N 311616A1

1шт.

Part of detent P/N 311616A2

1шт.

33

223925A2

STEM

Replaces: 223925A1

1шт.

34

256109A1

SPRING

1шт.

35

61-3106

HEX SOC SCREW,#10 - 24 x 3/8"

No. 10 x 3/8, Use Loctite No. 242

1шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

36

256108A1

RETAINER

1шт.

282881A1

PLUG

Consists Of: Ref. 37 - 40

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of plug P/N 282881A1

1шт.

38

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

Part of plug P/N 282881A1

1шт.

39

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

Part of plug P/N 282881A1

1шт.

40

282286A1

PLUG

1шт.

Part of plug P/N 282881A1

1шт.

41

282285A1

STEM

1шт.

42

282346A1

STOP

1шт.

249533A1

SEAL KIT

Seal, Consists of: Ref. 7, 12, (8-67); Ref. 18 - 20 (8-69); Ref. 1, 7, 9 (8-75); Ref. 18, 21 (8-77); Ref. 37, 38, 39 (8-81); Ref. 2 - 4, 8 - 10 (8-91)

1шт.
