(08-17) - VALVE ASSY, CONTROL LOADER, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715-

Запчасти Case 85XT (08-17) - VALVE ASSY, CONTROL LOADER, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (08) - HYDRAULICS

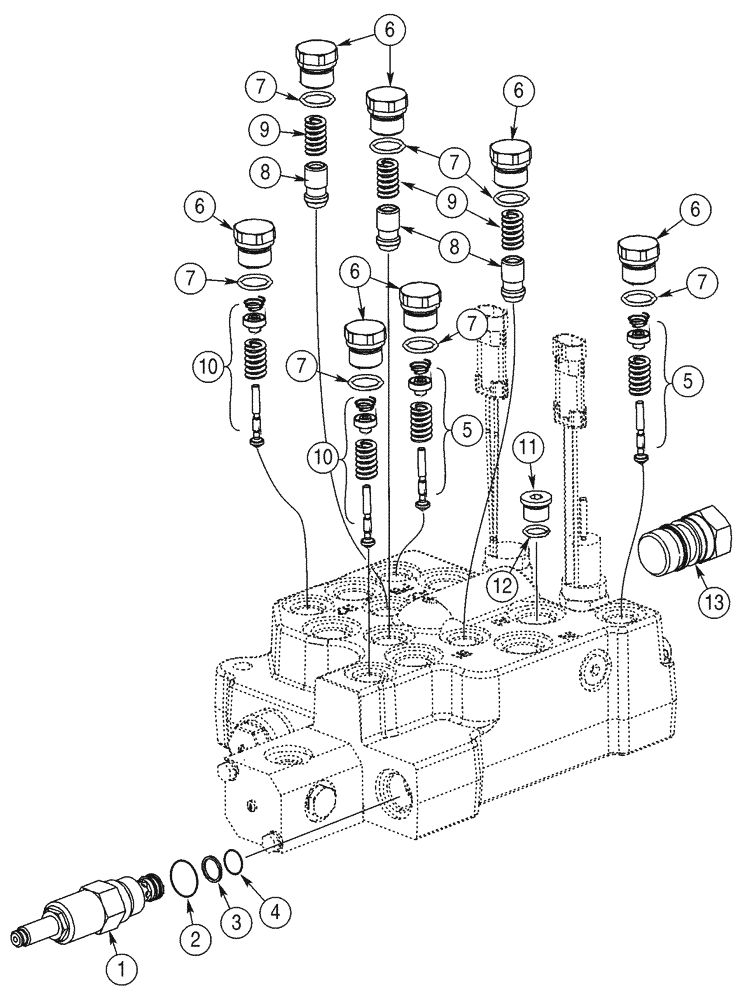

Схема запчастей Case 85XT - (08-17) - VALVE ASSY, CONTROL LOADER, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (08) - HYDRAULICS
9
7
7
10
2
6
8
5
3
11
5
7
12
6
7
6
6
7
4
8
13
1
7
10
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

409062A2

VALVE

Loader, Two-Spool, Consists Of: Ref. 1 - 13, Also Includes 8-83 - 8-89

1шт.

87431787

VALVE

Control; Incl. 1 - 13; Replaces 409062A2

1шт.

129842A2

VALVE, PRESSURE RELI

EF Consists Of: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

G110098

KIT

SEAL, Consists Of: Ref. 2 - 4

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

1шт.

4

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

5

383088A2

VALVE, PRESSURE RELI

EF 3800 psi, Component Parts Not Serviced Separately

2шт.

409025A1

PLUG,Hex, 3/4" - 16 ORB

Consists Of: Ref. 6 and 7

7шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

392956A1

VALVE POPPET

3шт.

9

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

3шт.

10

383121A2

VALVE, PRESSURE RELI

EF 3100 psi, Component Parts Not Serviced Separately

2шт.

11

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 12

1шт.

13

411343A1

PLUG

Counterbalance Valve, Includes: 396978A1

1шт.

396978A1

SEAL KIT

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
