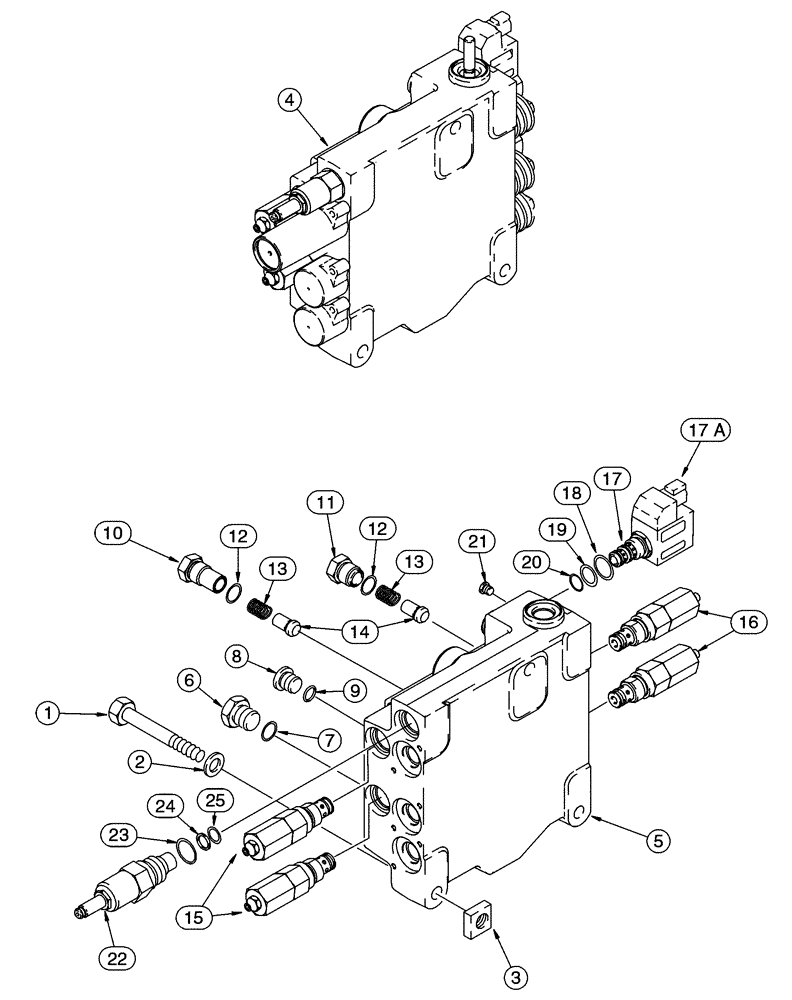

Запчасти Case 85XT (08-15) - VALVE, CONTROL MOUNTING, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (08) - HYDRAULICS

1

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

3шт.

3

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

3шт.

4

228188A5

VALVE

3-Spool, Replaces: 228188A2, 228188A3, 228188A4, Also Includes 8-75 - 8-81, Consists Of: Ref. 4 - 25

1шт.

5

NSS

NOT SOLD SEPARAT

BODY

1шт.

6

86625138

PLUG,7/18" - 14

Includes Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of plug P/N 218-5211

1шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 9

1шт.

293788A1

PLUG

Consists Of: Ref. 10 and 12

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG, Replaces: 227212A1

1шт.

Part of plug P/N 293788A1

1шт.

293787A1

PLUG,ORB

Consists Of Ref. 11 and 12

3шт.

11

NSS

NOT SOLD SEPARAT

PLUG, Replaces: G109644

1шт.

Part of plug P/N 293787A1

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of plug P/N 293788A1

1шт.

Part of plug P/N 293787A1

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

4шт.

14

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

4шт.

15

234828A1

VALVE

3100 psi, See Figure 08-20

2шт.

16

186709A1

VALVE

3800 psi, See Figure 08-20

2шт.

349295A1

SOLENOID VALVE

Valve, Without Screen, Replaces: 184505A1, Consists Of: Ref. 17 - 20A, Includes: Ref. 20A

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE Solenoid

1шт.

Part of solenoid valve P/N 349295A1

1шт.

17a

NSS

NOT SOLD SEPARAT

COIL

1шт.

Part of solenoid valve P/N 349295A1

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of solenoid valve P/N 349295A1

1шт.

19

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

Part of solenoid valve P/N 349295A1

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

Part of solenoid valve P/N 349295A1

1шт.

20a

NSS

NOT SOLD SEPARAT

SCREEN, not shown

1шт.

Part of solenoid valve P/N 349295A1

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG Expansion

1шт.

129842A2

VALVE, PRESSURE RELI

EF Consists Of: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of pressure relief valve P/N 129842A2

1шт.

G110098

KIT

Consists Of: Ref. 23 - 25

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of pressure relief valve P/N 129842A2

1шт.

Part of kit P/N G110098

1шт.

24

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

1шт.

Part of pressure relief valve P/N 129842A2

1шт.

Part of kit P/N G110098

1шт.

25

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

Part of pressure relief valve P/N 129842A2

1шт.

Part of kit P/N G110098

1шт.

249533A1

SEAL KIT

Consists Of: Ref. 7, 12 (8-67); Ref. 18 - 20 (8-69); Ref. 1, 7, 9 (8-75); Ref. 18, 21 (8-77); Ref. 37, 38, 39 (8-81); Ref. 2 - 4, 8 - 10 (8-91)

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of plug P/N 218-5209

1шт.
