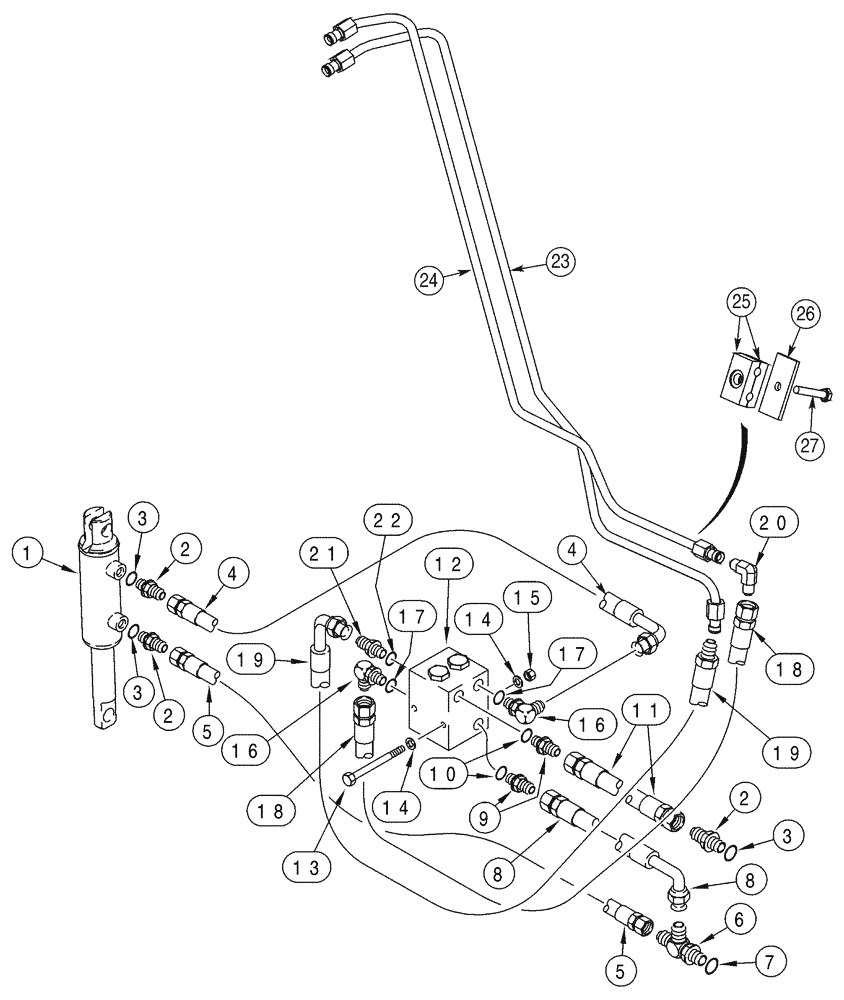

Запчасти Case 85XT (08-14) - HYD COUPLER SYSTEM, HOSE MTG BRACKET TO CYLINDERS, N. AMERICAN JAF0352234-, EUROPEAN JAF0352715- (08) - HYDRAULICS

1

255866A1

CYLINDER ASSY.

56 mm strk, No Service Parts

2шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 3

3шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5053

1шт.

4

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

176 mm (7 in.), See Page(s) 9-15

1шт.

5

257764A1

HYDRAULIC HOSE

638 mm (25-1/8 in.), See Page(s) 9-15

1шт.

6

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes: Ref. 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5289

1шт.

8

275452A2

HOSE ASSY.

500 mm (19-3/4 in.), See Page(s) 9-15

1шт.

9

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 10

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5089

1шт.

11

294884A1

HOSE ASSY.

506 mm (20 in.), See Page(s) 9-15

1шт.

12

294741A1

CHECK VALVE

1шт.

13

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

832-41406

NUT,M6 x 1, Cl 8

2шт.

16

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 Or, Includes: Ref. 17

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5283

1шт.

18

294882A1

HOSE ASSY.

815 mm (32-1/8 in.)

1шт.

19

294883A1

HOSE ASSY.

807 mm (31-7/8 in.)

1шт.

20

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

9/16 fl x fl

1шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 22

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.

23

436649A1

TUBE

For Attaching Parts, See Page 8-49, Ref. 2

1шт.

24

436651A1

TUBE

See Page(s) 8-49, Ref. 1

1шт.

25

1546024C1

CLAMP

2-Piece

1шт.

26

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

27

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.
