Запчасти Case 85XT (08-11) - HYD COUP SYS, GEAR PUMP TO HOSE MTG BRACKET, MODELS W/7/16" & 9/16" HYD. LINES TO SOLENOID VALVE (08) - HYDRAULICS

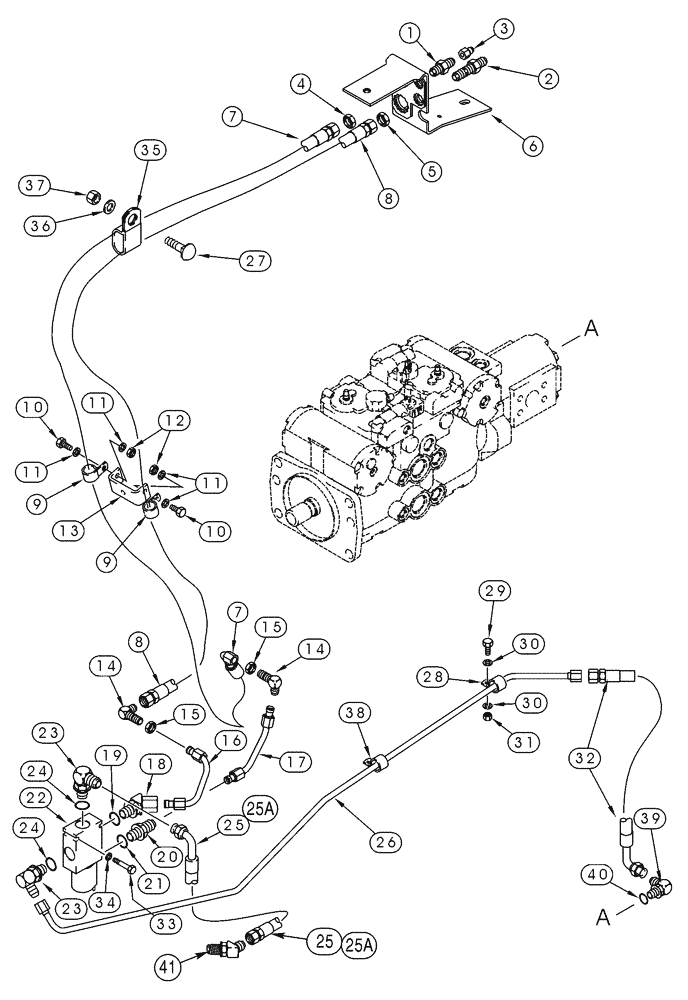

Схема запчастей Case 85XT - (08-11) - HYD COUP SYS, GEAR PUMP TO HOSE MTG BRACKET, MODELS W/7/16" & 9/16" HYD. LINES TO SOLENOID VALVE (08) - HYDRAULICS
20
24
10
16
23
37
35
15
34
31
17
9
14
15
36
40
8
7
24
25a
19
8
25
22
1
18
6
26
23
11
14
2
3
9
29
11
39
12
25a
30
32
30
12
7
41
33
28
27
38
10
13
5
11
4
25

Артикул

Название

Примечание

Количество

1

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

7/16 fl x blkhd fl, Used With 301868A1, See Figure 08-13, Ref. 24A

1шт.

2

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Fit stl bulkhd .375MJ .375MJ

1шт.

3

296606A1

REDUCER

1шт.

4

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

1-1/16

1шт.

5

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

6

301874A1

BRACKET

1шт.

7

296681A1

HOSE ASSY.

Upper, 3094 mm (121-7/8 in.)

1шт.

8

278589A1

HOSE ASSY.

Lower, 3094 mm (121-7/8 in.)

1шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

13

276726A1

SUPPORT

1шт.

14

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

16

257754A2

TUBE

1шт.

17

301865A1

TUBE,98, 113 mm Length

1шт.

18

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Replaces 295069A1

1шт.

22

187505C91

VALVE

See Figure 08-25

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes: Ref. 24

2шт.

25

278749A1

HOSE ASSY.

362 mm (14-1/4 in.), If Used, See Page(s) 6-3, Ref. 6

1шт.

25a

335962A1

HOSE ASSY.

1200 mm (47-1/4 in.), If Used

1шт.

Used with elbow P/N 218-5136

1шт.

26

280181A2

TUBE,1205, 222 mm Length

1шт.

27

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

28

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

31

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

32

275379A1

HOSE ASSY.

390 mm (15-3/8 in.), See Page(s) 6-5, Ref. 27

1шт.

33

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

35

D47783

CLAMP

1шт.

37

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

38

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

39

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Replaces: adapter 218-5057, Includes: Ref. 40

1шт.

41

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Use with 335962A1, Ref 25A

1шт.

42

394910A1

HARNESS

Flyback Diode Jumper, Not Illustrated

1шт.

43

259347A1

HARNESS

Hydraulic Coupler, See Figure 04-13, Not Illustrated

1шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5135

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.

Выбрано товаров: 49
