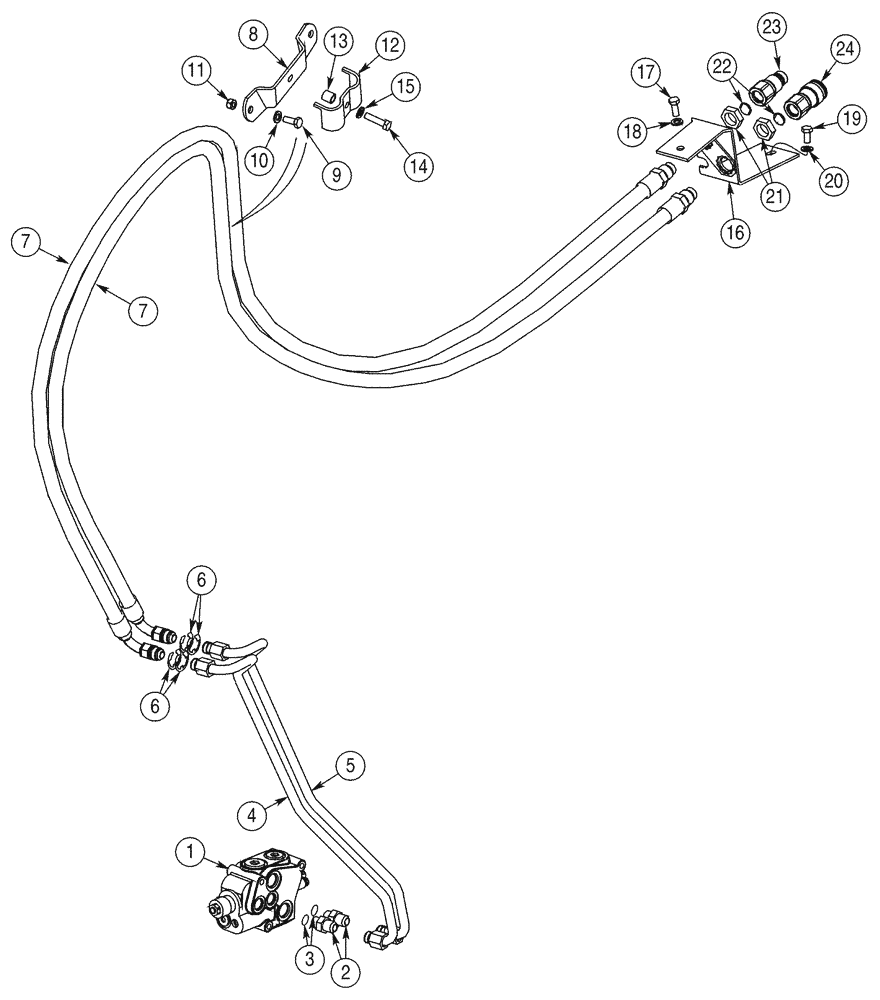

Запчасти Case 85XT (08-08) - HYDRAULICS AUXILIARY SYSTEM, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (08) - HYDRAULICS

1

417369A1

VALVE

Auxiliary, 1-Spool, See Figure 08-22, Component Parts Not Serviced Separately

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5062

1шт.

4

418994A1

HYD TUBE

1шт.

5

418996A1

HYD TUBE

1шт.

6

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

7

242480A2

HOSE ASSY.,15.88mm ID x 3050mm L

3050 mm (120-1/8 in.)

2шт.

8

253476A1

BAR

1шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

12

256688A2

CLAMP BRACKET

1шт.

13

P24576

SPACER,3/8" Pipe x 11/16"

1шт.

14

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

16

197624A2

BRACKET

1шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

21

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

23

393397A1

COUPLING

Male, Component Parts Not Serviced Separately

1шт.

24

393396A1

COUPLING

Female, Component Parts Not Serviced Separately

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
