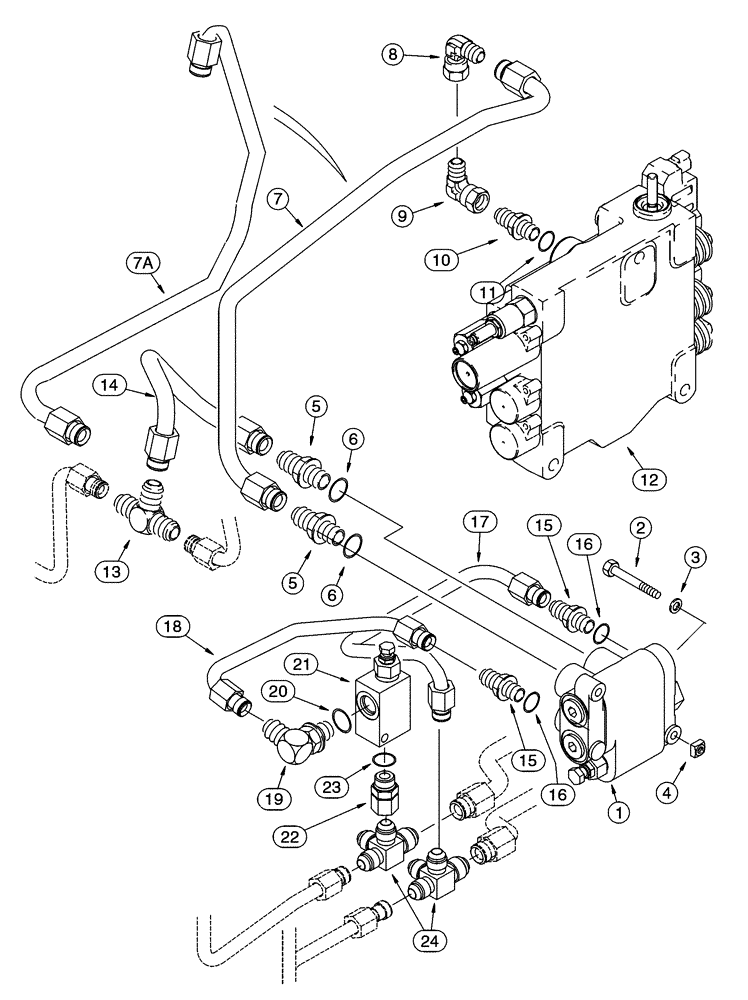

Запчасти Case 85XT (08-06) - HYDRAULICS SELF-LEVELING (08) - HYDRAULICS

1

280126A2

VALVE

See Figure 08-21

1шт.

2

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

4

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5066

1шт.

7

259508A4

PIPE

-JAF0255768

1шт.

7a

307974A1

PIPE

JAF0255768-

1шт.

8

218-5377

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

5/8 fl x 3/4 sw

1шт.

9

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5065

1шт.

12

REF

INSTRUCTION

VALVE Control, 3-Spool, See Page(s) 8-67, 8-69, 8-75 - 8-81, North American Models -JAF0352233, European Models -JAF0352714

1шт.

12

REF

INSTRUCTION

VALVE Control, 3-Spool, See Page(s) 8-73, 8-73B, 8-83 - 8-89, North American Models JAF0352234-, European Models JAF0352715-

1шт.

13

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

1шт.

14

284832A2

PIPE

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

17

276038A3

PIPE

1шт.

18

297773A1

PIPE

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5106

1шт.

21

294650A1

VALVE

1шт.

22

1327736C1

ELBOW

3/4 fl x 3/4 Or, Includes: Ref. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of fitting P/N 1327736C1

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
