Запчасти Case 85XT (08-05) - HYDRAULICS LOADER BUCKET, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (08) - HYDRAULICS

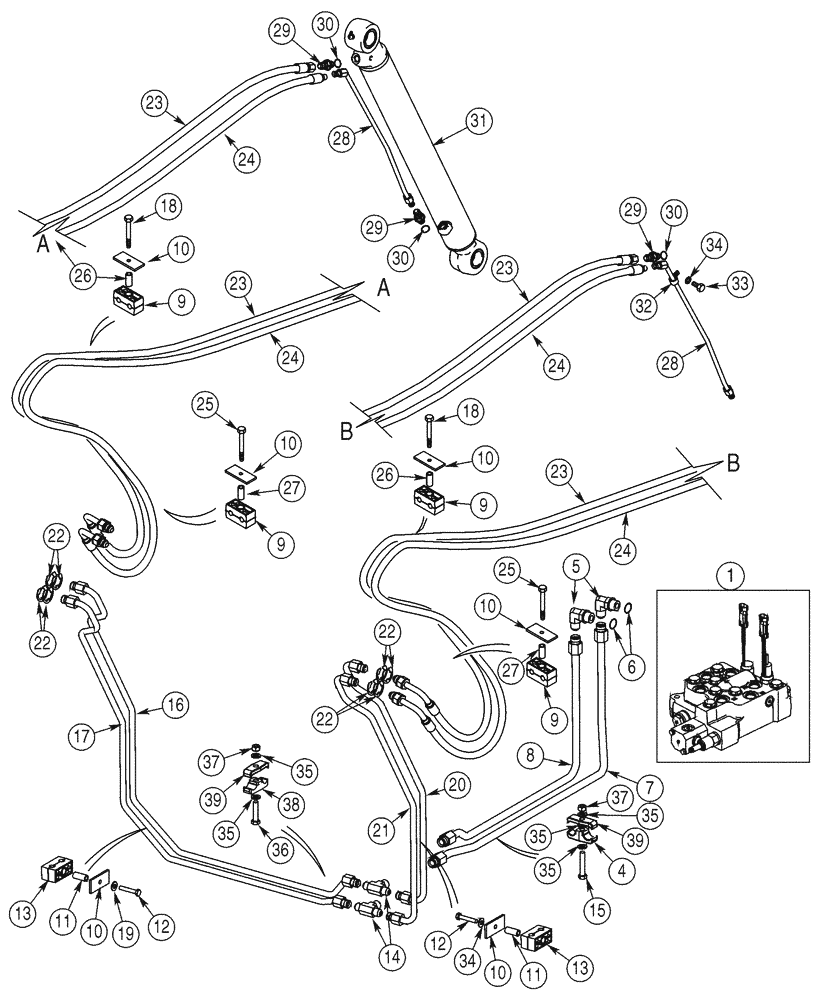

Схема запчастей Case 85XT - (08-05) - HYDRAULICS LOADER BUCKET, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (08) - HYDRAULICS
17
25
23
36
10
33
12
27
37
10
10
38
35
24
13
9
15
25
24
24
39
35
6
28
22
27
7
18
30
19
29
10
30
8
23
11
35
18
16
31
21
24
26
22
32
30
1
9
5
11
34
10
22
13
26
23
29
4
12
20
28
23
39
14
29
22
9
9
35
35
10
34
37

Артикул

Название

Примечание

Количество

1

409062A2

VALVE

Two-Spool, See Figure 08-16, 08-17, 08-19

1шт.

1

87431787

VALVE

Control; See Figure 08-08, 08-09; If Used; Replaces 409062A2

1шт.

4

D120613

CLAMP,20mm ID

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

418988A1

TUBE

Curl

1шт.

8

418992A1

TUBE

Dump

1шт.

9

257857A1

CLAMP

2-Piece

4шт.

10

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

6шт.

11

259905A1

SPACER

2шт.

12

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

13

257919A1

CLAMP BRACKET

2-Piece

2шт.

14

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

15

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

16

419006A1

HYD TUBE

1шт.

17

419004A1

HYD TUBE

1шт.

18

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

20

419010A1

HYD TUBE

1шт.

21

419008A1

HYD TUBE

1шт.

22

103-3398

SNAP RING,#X98, .822" Dia, E-Type

8шт.

23

258894A2

HOSE ASSY.,9.53mm ID x 3265mm L

3265 mm (128-5/8 in.)

2шт.

24

258895A2

HOSE ASSY.,9.53mm ID x 3250mm L

3250 mm (128 in.)

2шт.

25

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

26

293891A1

SPACER

2шт.

27

293892A1

SPACER

2шт.

28

254351A4

TUBE,591 mm Length

2шт.

29

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 30

4шт.

31

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

Loader Bucket, 70 ID x 525 mm strk, see Figure 08-24

2шт.

31

258426A3R

REMAN-HYD CYLINDER

85 XT, ASN JAF0352233

2шт.

31

258426A3C

CORE-HYD CYLINDER

Return Number

2шт.

32

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

36

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

37

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

38

D120679

CLAMP,Tube, 1/2"

1шт.

39

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
