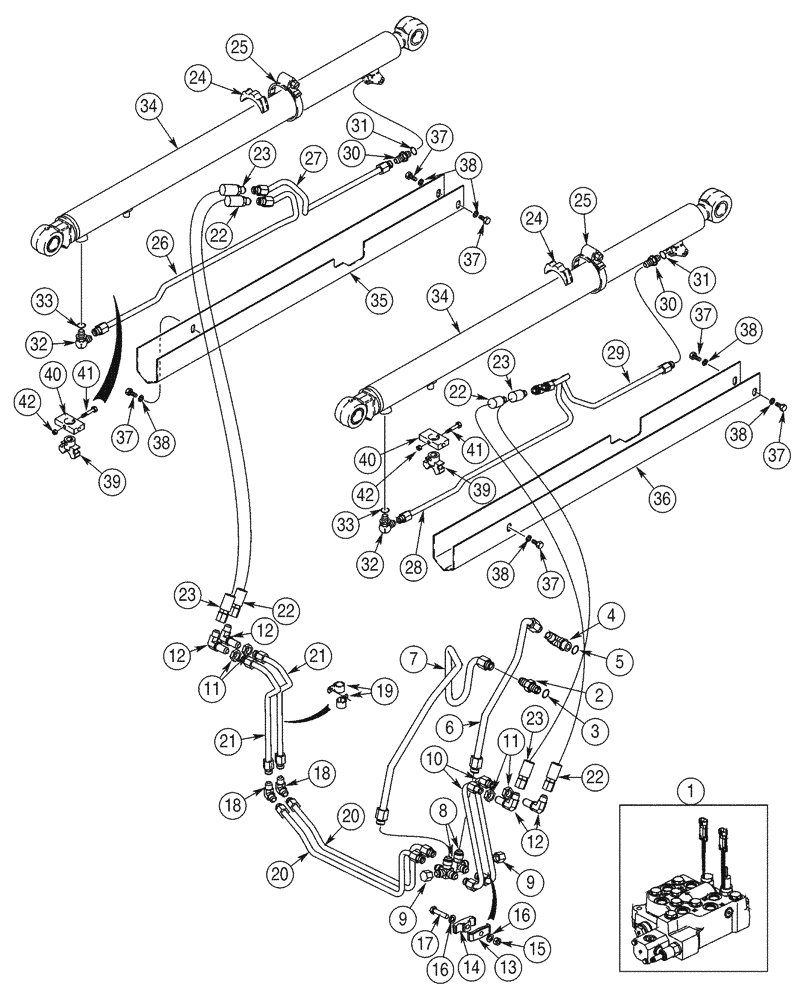

Запчасти Case 85XT (08-03) - HYDRAULICS LOADER LIFT, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE Control, See Page(s) 8-73, 8-73B, 8-83 - 8-89

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5062

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5107

1шт.

6

418990A1

TUBE

Raise

1шт.

7

419002A1

TUBE

Lower

1шт.

8

280107A1

TEE

2шт.

9

218-755

CAP,37 Degree, 3/4"-16

Models without Ride Control, See Figure 08-04

2шт.

10

284834A3

TUBE,280, 66 mm Length

Right-Hand

2шт.

11

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

12

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

13

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

14

D120679

CLAMP,Tube, 1/2"

1шт.

15

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

Note: See Figure 08-06 For Self-Leveling Hydraulics.

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

18

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

20

419000A1

TUBE

Lift, Left-Hand

2шт.

21

418998A1

TUBE

Lift, Left-Hand

2шт.

22

258892A3

HOSE ASSY.,12.7mm ID x 892mm L

Closed End, 892 mm (35-1/8 in.)

2шт.

23

258893A4

HOSE ASSY.,12.7mm ID x 922mm L

Rod End, 922 mm (36-5/16 in.)

2шт.

24

255245A1

BLOCK

2шт.

25

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

2шт.

26

282738A4

TUBE,12.7 mm OD, 651, 126 mm Length

Closed End

1шт.

27

282740A5

TUBE,454, 112 mm Length

Rod End

1шт.

28

282734A4

TUBE,651, 126 mm Length

Closed End

1шт.

29

282736A5

TUBE,454, 96 mm Length

Rod End

1шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 31

2шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 33

2шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5106

1шт.

34

189980A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

Lift, 64 ID x 1049 mm strk, See Figure 08-23

2шт.

35

258905A2

PROTECTOR

Left-Hand

1шт.

36

258904A2

PROTECTOR

Right-Hand

1шт.

37

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

38

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

39

197508A1

HOLDER

2шт.

40

197509A1

PROTECTOR

2шт.

41

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

42

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
