Запчасти Case 85XT (08-02) - HYDRAULICS LOADER LIFT, N. AMERICAN MODELS JAF0255762-0352233, EUROPEAN MODELS JAF0255762-0352714 (08) - HYDRAULICS

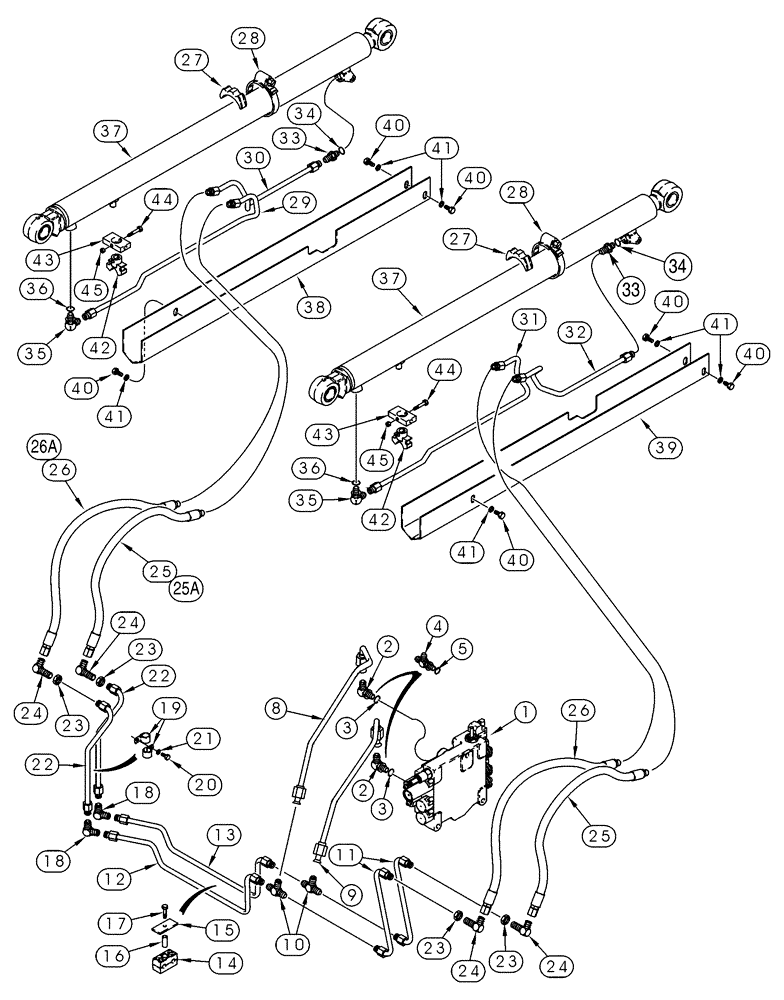

Схема запчастей Case 85XT - (08-02) - HYDRAULICS LOADER LIFT, N. AMERICAN MODELS JAF0255762-0352233, EUROPEAN MODELS JAF0255762-0352714 (08) - HYDRAULICS
27
42
26
40
29
26
36
35
23
40
33
24
2
1
34
32
18
30
24
15
25
16
42
21
41
45
28
40
22
23
14
43
25
24
19
26a
27
28
12
20
3
25a
10
44
9
13
4
44
38
24
3
39
40
17
33
2
23
40
11
43
40
37
41
5
41
35
23
34
41
45
18
36
22
8
31
37

Артикул

Название

Примечание

Количество

1

228188A5

VALVE

3-Spool, See Figure 08-04

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5107

1шт.

4

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl br x fl x Or, See Figure 08-09, Models With Ride Control, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5241

1шт.

8

307949A1

PIPE

See Note

1шт.

9

307954A1

PIPE

1шт.

10

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

11

284834A2

PIPE

Right-Hand

2шт.

12

284838A2

PIPE

Left-Hand, No Longer Available, Order 284836A2, Ref. 13

1шт.

13

284836A2

PIPE

Left-Hand, Replaces: 284838A2

1-2шт.

14

257919A1

CLAMP BRACKET

2-Piece

1шт.

16

259905A1

SPACER

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

18

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

22

259310A3

PIPE

2шт.

23

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

24

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

25

258892A2

HOSE ASSY.

Closed End, 840 mm (33-1/8 in.), No Longer Available, Order 258892A3, Ref. 25A, 258893A4, Ref. 26A

2шт.

25a

258892A3

HOSE ASSY.,12.7mm ID x 892mm L

Closed End, 892 mm (35-1/8 in.)

2шт.

26

258893A3

HOSE ASSY.

Rod End, 885 mm (34-7/8 in.), No Longer Available, Order 258892A3, Ref. 25A, 258893A4, Ref. 26A

2шт.

26a

258893A4

HOSE ASSY.,12.7mm ID x 922mm L

Rod End, 922 mm (36-5/16 in.)

2шт.

27

255245A1

BLOCK

2шт.

28

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

2шт.

29

282738A3

PIPE

Closed End, Replaces: 282738A2

1шт.

30

282740A4

PIPE

Rod End, Replaces: 282740A2, 282740A3

1шт.

31

282734A3

PIPE

Closed End, Replaces: 282734A2

1шт.

32

282736A4

PIPE

Rod End, Replaces: 282736A2, 282736A3

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 34

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 36

2шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5106

1шт.

37

189980A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

Lift, 64 ID x 1049 mm strk, See Figure 08-23

2шт.

38

258905A2

PROTECTOR

Left-Hand

1шт.

39

258904A2

PROTECTOR

Right-Hand

1шт.

40

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

41

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

42

197508A1

HOLDER

2шт.

43

197509A1

PROTECTOR

2шт.

44

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

45

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 48
