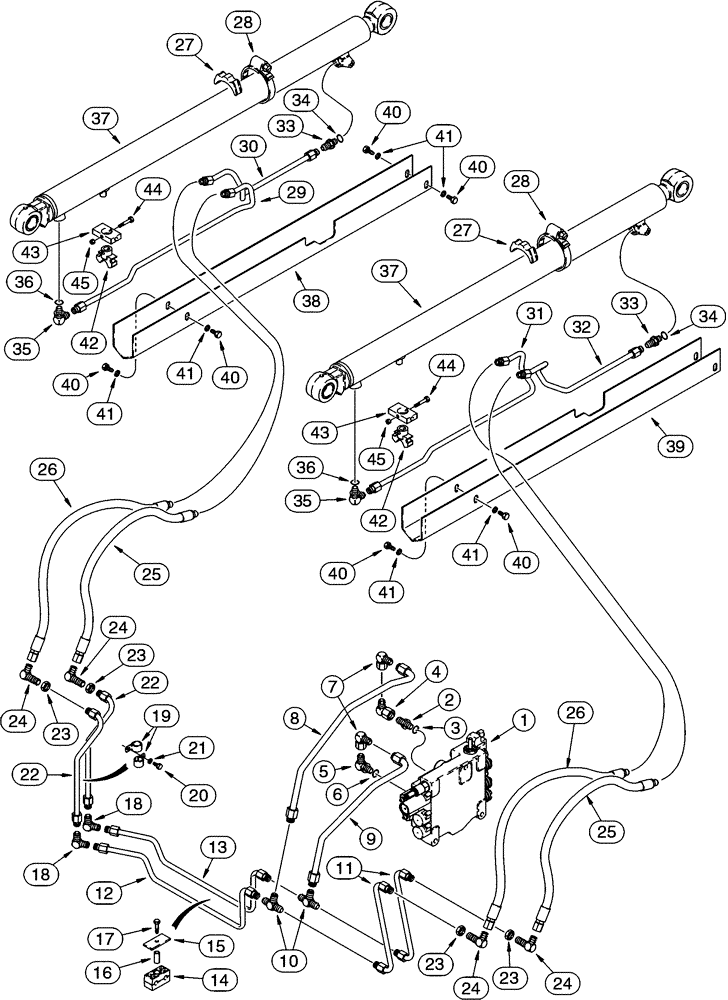

Запчасти Case 85XT (08-01) - HYDRAULICS LOADER LIFT -JAF0255761 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE Control, 3-Spool, See Page(s) 8-67, 8-69, 8-75 - 8-81

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5065

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

5

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5123

1шт.

7

218-5377

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

5/8 fl x 3/4 sw

2шт.

8

284830A2

PIPE

Replaces: 284830A1, See Note

1шт.

9

284828A2

PIPE

Replaces: 284828A1

1шт.

10

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

11

284834A1

PIPE

Right-Hand

2шт.

12

284838A1

PIPE

Left-Hand

1шт.

13

284836A1

PIPE

Left-Hand

1шт.

14

257919A1

CLAMP BRACKET

2-Piece

1шт.

15

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

16

259905A1

SPACER

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

18

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

22

259310A2

PIPE

2шт.

23

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

24

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

Note: See Figure 08-06 For Self-Leveling Hydraulics.

1шт.

25

258892A2

HOSE ASSY.

Closed End, 840 mm (33-1/8 in.)

2шт.

26

258893A3

HOSE ASSY.

Rod End, 885 mm (34-7/8 in.)

2шт.

27

255245A1

BLOCK

2шт.

28

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

2шт.

29

282738A1

PIPE

Closed End

1шт.

30

282740A1

PIPE

Rod End

1шт.

31

282734A1

PIPE

Closed End

1шт.

32

282736A1

PIPE

Rod End

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 34

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 36

2шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5106

1шт.

37

189980A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

Lift, 64 ID x 1049 mm strk, See Figure 08-23

2шт.

38

258905A2

PROTECTOR

Left-Hand

1шт.

39

258904A2

PROTECTOR

Right-Hand

1шт.

40

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

42

197508A1

HOLDER

2шт.

43

197509A1

PROTECTOR

2шт.

44

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

45

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

41

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
