Запчасти Case 85XT (02-04) - AIR CLEANER ENGINE, IF USED (02) - ENGINE

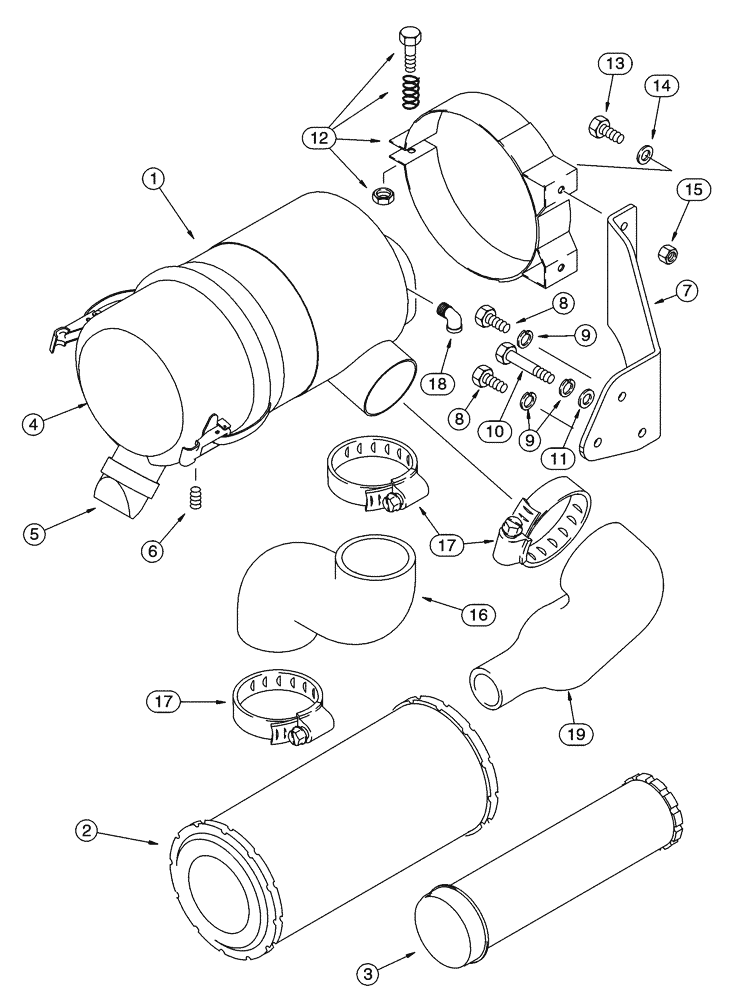

Схема запчастей Case 85XT - (02-04) - AIR CLEANER ENGINE, IF USED (02) - ENGINE
15
3
6
18
8
10
12
11
19
14
2
9
8
17
7
13
5
1
4
17
9
16

Артикул

Название

Примечание

Количество

258906A2

AIR CLEANER

Consists Of: Ref. 1 - 6

1шт.

1

284256A1

CASE

1шт.

Part of air cleaner P/N 258906A2

1шт.

2

222425A1

AIR FILTER

Primary

1шт.

Part of air cleaner P/N 258906A2

1шт.

3

222429A1

AIR FILTER

Secondary

1шт.

Part of air cleaner P/N 258906A2

1шт.

4

284257A1

COVER

1шт.

Part of air cleaner P/N 258906A2

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

Part of air cleaner P/N 258906A2

1шт.

6

236690A1

PLUG

If Equipped

1шт.

Part of air cleaner P/N 258906A2

1шт.

7

87582485

BRACKET

Replaces 257865A2, 257865A1

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

9

892-11010

LOCK WASHER,M10

3шт.

10

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

12

188231A1

COLLAR ASSY.

With Hardware

1шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

15

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

16

257823A1

INTAKE AIR HOSE,76.00 mm ID x 180.00 mm, SAE J200

1шт.

17

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

3шт.

18

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

19

87573940

HOSE

Intake Tube; Replaces 315522A1

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
