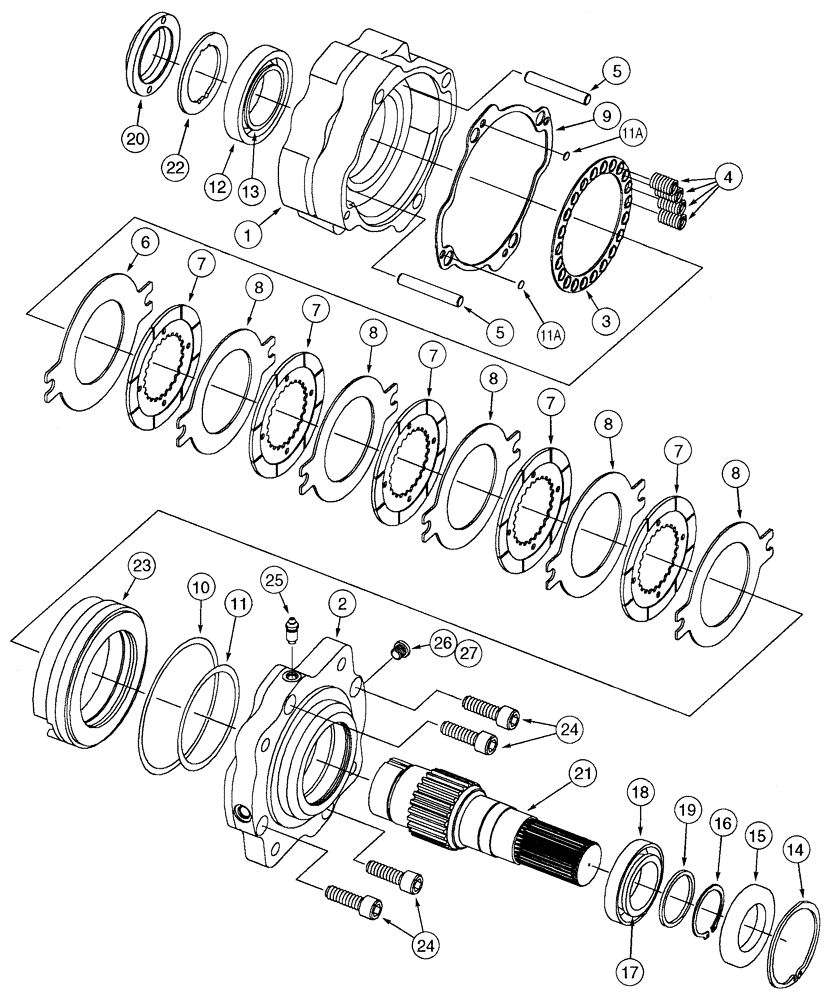

Запчасти Case 85XT (07-01) - BRAKE (07) - BRAKES

282807A1

BRAKE ASSY.

Vendor Part Number 20226-001, No Longer Available, Order 359619A2, See Figure 07-02, Consists Of: Ref. 1 - 27

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE

1шт.

298550A1

SET OF PARTS

Consists Of: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

Part of set of parts P/N 298550A1

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

19шт.

Part of set of parts P/N 298550A1

1шт.

5

NSS

NOT SOLD SEPARAT

PIN

2шт.

Part of set of parts P/N 298550A1

1шт.

6

NSS

NOT SOLD SEPARAT

DISC Brake, Primary

1шт.

Part of set of parts P/N 298550A1

1шт.

7

NSS

NOT SOLD SEPARAT

DISC Friction

5шт.

Part of set of parts P/N 298550A1

1шт.

8

NSS

NOT SOLD SEPARAT

DISC Brake

5шт.

Part of set of parts P/N 298550A1

1шт.

298551A1

SEAL KIT

Consists Of: Ref. 9 - 11A

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of gasket kit P/N 298551A1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of gasket kit P/N 298551A1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of gasket kit P/N 298551A1

1шт.

11a

NSS

NOT SOLD SEPARAT

SHIM

4шт.

Part of gasket kit P/N 298551A1

1шт.

298552A1

SET OF PARTS

Consists Of: Ref. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING Cup

1шт.

Part of set of parts P/N 298552A1

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING Cone

1шт.

Part of set of parts P/N 298552A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING Snap

1шт.

Part of set of parts P/N 298552A1

1шт.

15

298559A2

OIL SEAL

Replaces: 298559A1

1шт.

Part of set of parts P/N 298552A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING Snap

1шт.

Part of set of parts P/N 298552A1

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING Cup

1шт.

Part of set of parts P/N 298552A1

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING Cone

1шт.

Part of set of parts P/N 298552A1

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of set of parts P/N 298552A1

1шт.

20

298553A1

NUT

1шт.

21

298554A1

SHAFT

1шт.

22

298555A1

WASHER

1шт.

23

298556A1

PISTON

1шт.

24

61-36232

HEX SOC SCREW,5/8"-11 x 2"

5/8 x 2

4шт.

25

S109458

SCREW

1шт.

26

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of plug P/N 218-5209

1шт.
