Serial Numbers JAF0297637, 38, 39, 40, And 41
1шт.
REF
INSTRUCTION

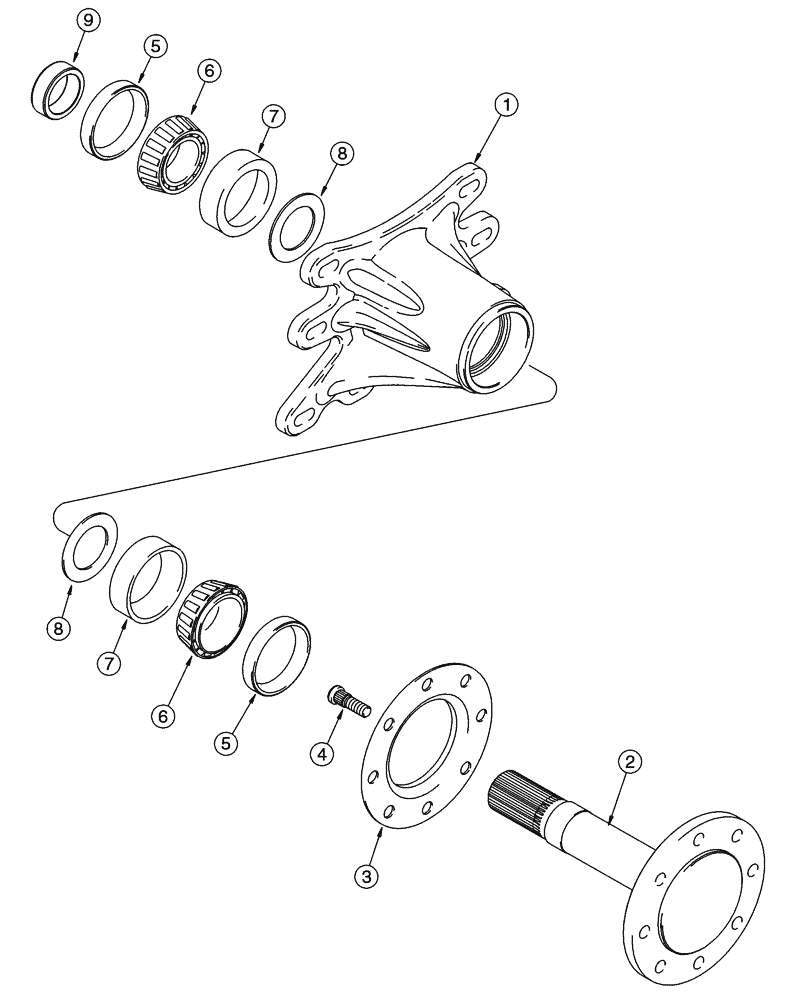

AXLE ASSY, Small, Incl. Ref. 1 - 9
4шт.
1
386799A1
HUB ASSY.
Replaces 189988A2
1шт.
338550A2
AXLE
Incl. Ref. 2 - 4, Replaces 189994A1, 338550A1
1шт.
338550A4
MAIN SHAFT
Incl. Ref. 2 - 4; Also Order Screw, 86577946, When Replacing 338550A4
1шт.
2
NSS
NOT SOLD SEPARAT
SHAFT Axle; Part of axle P/N 338550A2
1шт.
4
191048A2
STUD
M16; Plain; Grade 9.8; If Used; Part of axle P/N 338550A2
8шт.
4
87618650
STUD
M16; Phosphate Coated; Grade 9.8; If Used
8шт.
5
D63674
SEAL,63.5mm ID x 89.15mm OD x 11.13mm Thk
Used With Ref 9, 230873A1
2шт.
6
287902
ROLLER BEARING,50.8mm ID x 22.23mm W
Replaces 364463C91
2шт.
7
199955
BEARING CUP,82mm OD x 17mm W
Replaces 376463C1
2шт.
8
197805A1
WASHER,51.8mm ID x 74mm OD x 3.2mm Thk
1шт.
9
230873A1
SPACER
Used With Ref 5, D63674
1шт.
