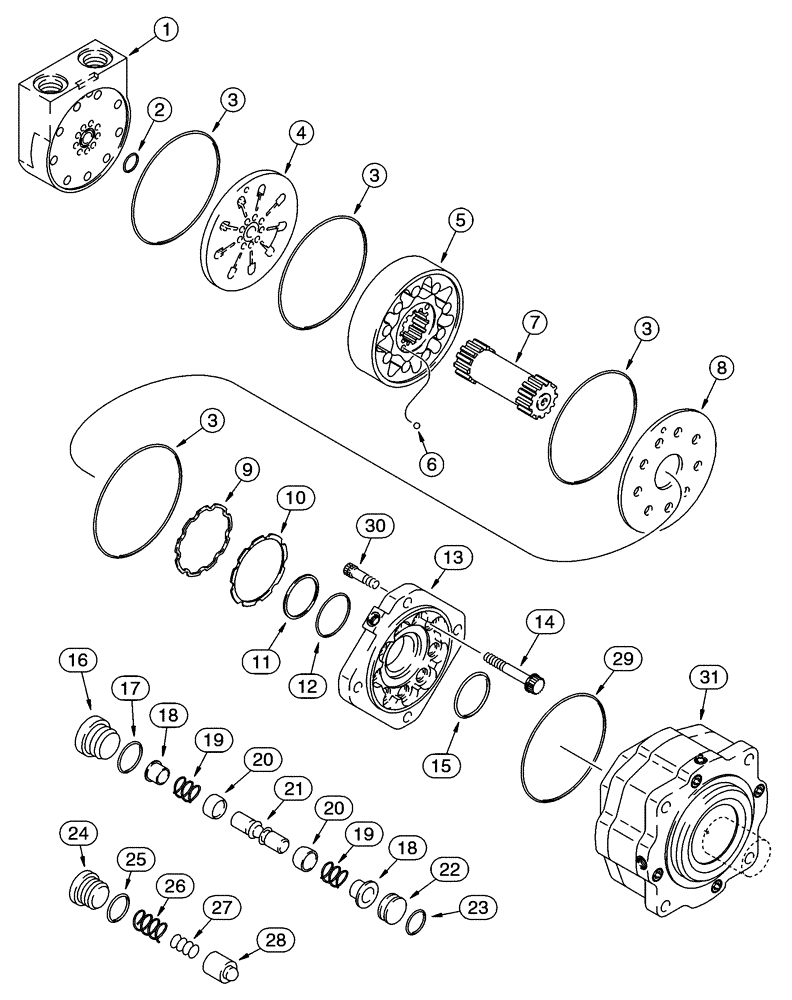

Запчасти Case 85XT (06-18) - MOTOR ASSY - JAF0273131 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
259534A1
MOTOR, HYDRAULIC
See Figure 06-04, No Longer Available, Order 349157A2, Consists of: Ref. 1 - 31
2шт.
1
282784A1
COVER
1шт.
2
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
3
NSS
NOT SOLD SEPARAT
SEAL, Order 282810A1
4шт.
Part of gasket kit P/N 282810A1
1шт.
4
282806A1
PLATE
1шт.
5
282791A1
GEAR-SET
1шт.
6
140784A1
BALL
2шт.
7
282794A1
DRIVE DOG
1шт.
8
282785A1
LARGE PLATE
PLATE, LARGE
1шт.
9
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
Part of gasket kit P/N 282810A1
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
11
NSS
NOT SOLD SEPARAT
RING Backup, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
13
282793A1
FLANGE
1шт.
14
282799A1
SCREW
9шт.
15
NSS
NOT SOLD SEPARAT
SEAL, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
16
282804A1
PLUG
Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of plug P/N 282804A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
18
251509A1
RING
2шт.
19
251506A1
SPRING
2шт.
20
251511A1
VALVE POPPET
2шт.
21
282802A1
PISTON ASSY.
1шт.
22
282805A1
PLUG
Includes: Ref. 23
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of plug P/N 282805A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
24
282787A1
PLUG
Includes: Ref. 25
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of plug P/N 282787A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
26
282789A1
SPRING
1шт.
27
282788A1
SHIM
1шт.
28
282790A1
VALVE POPPET
1шт.
29
238-5164
O-RING,0.103" Thk x 6.25" ID, -164, Cl 5, 75 Duro
Used with 259534A1
1шт.
30
282809A1
SCREW
4шт.
31
282807A1
BRAKE ASSY.
See Figures 07-01, 07-02, No Longer Available, Order 359619A2
1шт.
282810A1
SEAL KIT
Consists Of: Ref. 2, 3, 9, 10, 11, 12, 15, 17, 23 and 25
1шт.
349157A2
MOTOR, HYDRAULIC
See Figure 07-02, Consists of: Ref. 1 - 31, Also Includes 359619A2
2шт.
1
282784A1
COVER
1шт.
2
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
3
NSS
NOT SOLD SEPARAT
SEAL, Order 282810A1
4шт.
Part of gasket kit P/N 282810A1
1шт.
4
282806A1
PLATE
1шт.
5
282791A1
GEAR-SET
1шт.
6
140784A1
BALL
2шт.
7
282794A1
DRIVE DOG
1шт.
8
282785A1
LARGE PLATE
PLATE, LARGE
1шт.
9
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
Part of gasket kit P/N 282810A1
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
11
NSS
NOT SOLD SEPARAT
RING Backup, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
13
282793A1
FLANGE
1шт.
14
282799A1
SCREW
9шт.
15
NSS
NOT SOLD SEPARAT
SEAL, Order 282810A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
16
282804A1
PLUG
Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of plug P/N 282804A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
18
251509A1
RING
2шт.
19
251506A1
SPRING
2шт.
20
251511A1
VALVE POPPET
2шт.
21
282802A1
PISTON ASSY.
1шт.
22
282805A1
PLUG
Includes: Ref. 23
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of plug P/N 282805A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
24
282787A1
PLUG
Includes: Ref. 25
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING, Order 282810A1
1шт.
Part of plug P/N 282787A1
1шт.
Part of gasket kit P/N 282810A1
1шт.
26
282789A1
SPRING
1шт.
27
282788A1
SHIM
1шт.
28
282790A1
VALVE POPPET
1шт.
29
360750A1
O-RING
1шт.
30
282809A1
SCREW
4шт.
31
359619A2
BRAKE ASSY.
See Figure 07-02
1шт.
282810A1
SEAL KIT
Consists Of: Ref. 2, 3, 9, 10, 11, 12, 15, 17, 23 and 25
1шт.
360763A1
KIT
Service, Consists Of: Ref. 1 - 28, Also Includes 282810A1
2шт.
Выбрано товаров: 93
