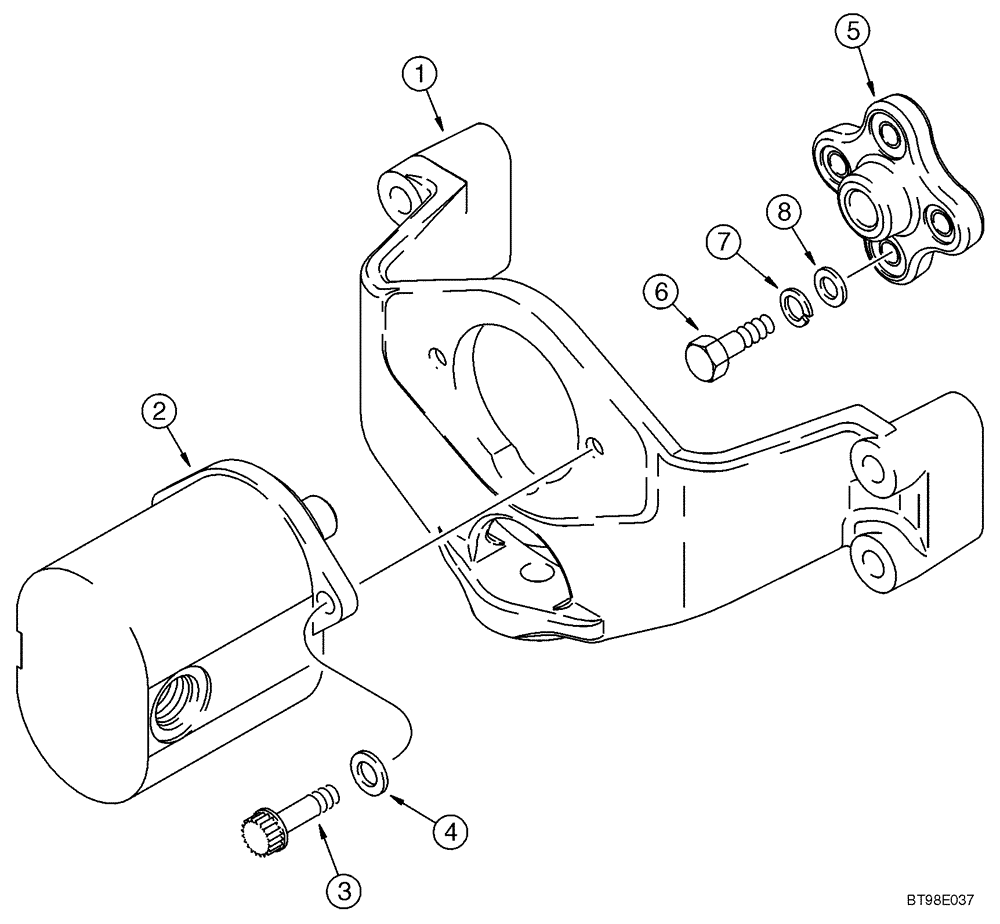

Запчасти Case 75XT (06-06A) - PUMP, GEAR - MOUNTING (06) - POWER TRAIN

1

247421A1

SUPPORT

Engine Mounting; Pump; See Figure 02-06

1шт.

2

298851A2

PUMP

See Figure 06-11

1шт.

84561841R

REMAN-HYD PUMP

75XT ASN JAF0318922 (NA), Reman for new PN 298851A2

1шт.

84561841C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

5

131693A1

FLEXIBLE COUPLING,13T

1шт.

6

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2

4шт.

7

492-11044

LOCK WASHER,7/16"

4шт.

8

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.
