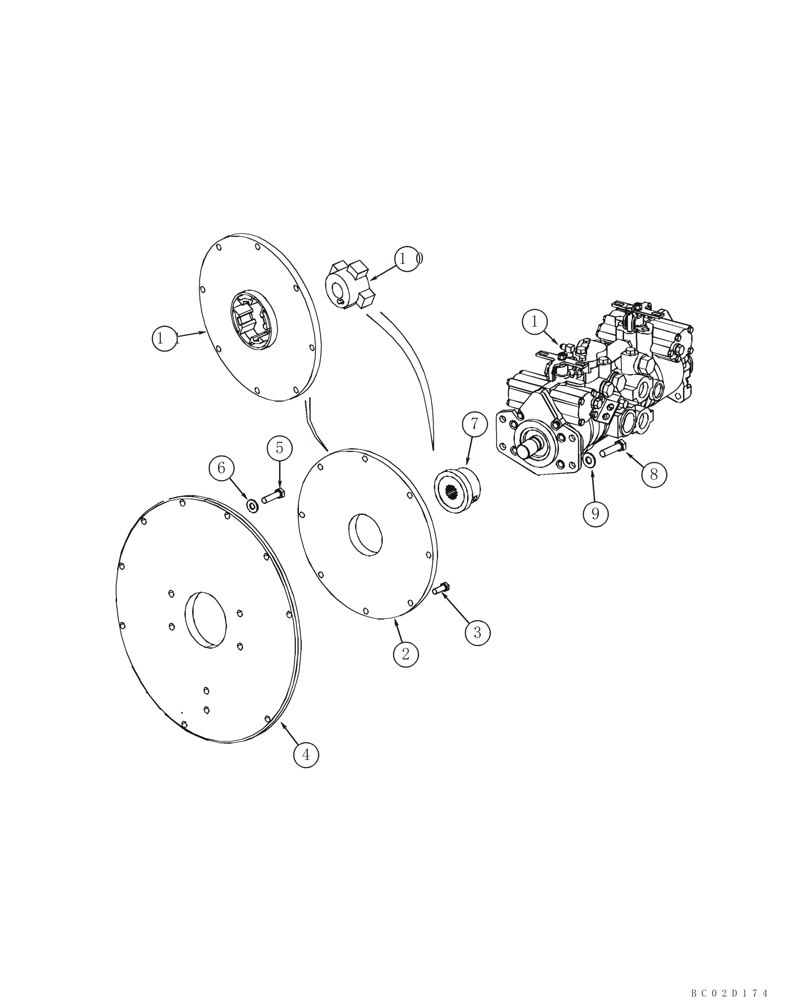

Запчасти Case 75XT (06-06) - PUMP, TANDEM - MOUNTING (Aug 13 2010 12:51PM) (06) - POWER TRAIN

1

394132A2

PUMP, HYDRAULIC,46 CC

See Figure 06-07 - 06-10B

1шт.

1

87298030

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

1

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

2

357801A1

FLANGE

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

4

434636A2

PLATE

1шт.

5

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

9шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

9шт.

7

341008A2

COUPLING

19T

1шт.

8

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

B17577

LOCTITE

No. 242

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

10

436435A1

HUB

1шт.

11

436436A1

DRIVE PLATE,314.32mm OD

1шт.
