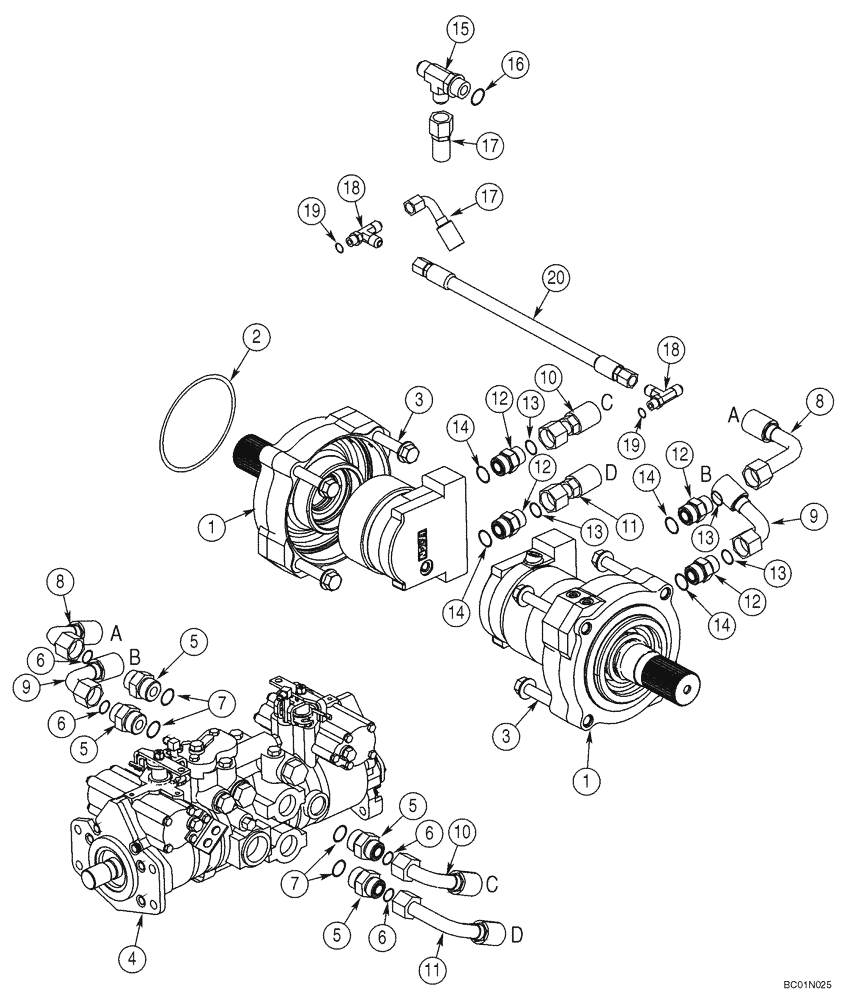

Запчасти Case 75XT (06-04) - HYDROSTATICS - PUMP AND DRIVE MOTORS (Oct 1 2010 9:54AM) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
394539A1
MOTOR, HYDRAULIC
See Figure 06-12, 07-02
2шт.
87359410
MOTOR, HYDRAULIC
Hydraulic Motor
1шт.
87359410R
REMAN-HYD MOTOR
Remanufactured Hydraulic Motor
1шт.
87359410C
CORE-MOTOR HYDRAULIC
Return Number
1шт.
2
238-5433
O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro
2шт.
3
396491A1
BOLT
8шт.
4
394132A2
PUMP, HYDRAULIC,46 CC
See Figure 06-07 - 06-10B
1шт.
4
87298030
REMAN-HYD PUMP
Remanufactured HYDRAULIC PUMP
1шт.
4
87298031
CORE-HYDRAULIC PUMP
Return No, HYDRAULIC PUMP
1шт.
5
201-129
HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB
1-3/16 fc x 1-5/16 Or; Incl. 6, 7
4шт.
6
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
8
430385A1
HOSE ASSY.
575 mm (22-21/32 in); Pump to Right Hand Drive Motor
1шт.
9
397094A1
HOSE ASSY.,19.05mm ID x 540mm L
525 mm (20-11/16 in); Pump to Right Hand Drive Motor
1шт.
10
430237A1
HOSE ASSY.
770 mm (30-11/32 in); Pump to Left Hand Drive Motor
1шт.
11
430236A1
HOSE ASSY.
820 mm (32-5/16 in); Pump to Left Hand Drive Motor
1шт.
12
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Includes Ref. 13, 14
4шт.
13
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
14
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
15
218-5239
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
1-1/16 fl x fl x Or; Incl. 16
1шт.
16
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
17
428902A1
HOSE ASSY.
510 mm (20-3/32 in); Motor Case to Tandem Pump Case
1шт.
18
218-5650
TEE,37 Degree, 3/4"-16, 9/16"-18 O-Ring Run, 3/4"-16
3/4 fl x fl x 9/16 Or; Incl. 19
2шт.
20
397093A1
HOSE ASSY.
488 mm (19-1/4 in); Motor to Motor Case Drain; For Attaching Parts, See Figure 07-01, Ref 10
1шт.
19
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 25
