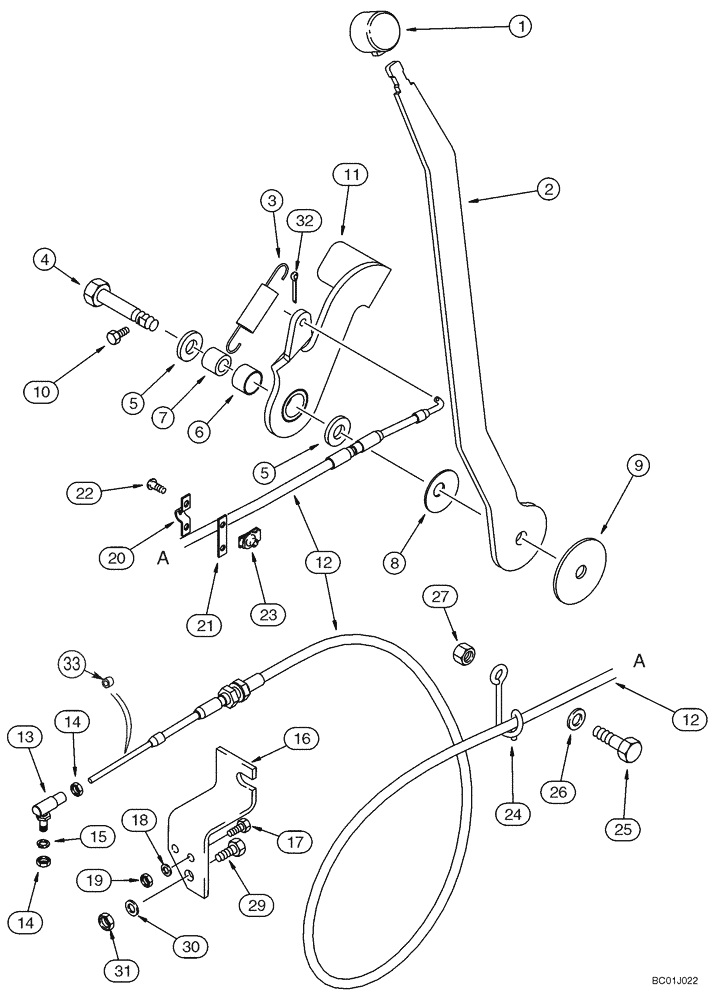

Запчасти Case 75XT (03-03) - CONTROLS - THROTTLE (EUROPE) (03) - FUEL SYSTEM

REF

INSTRUCTION

4-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

A177436

KNOB

1шт.

2

186904A1

CONTROL LEVER

Hand Operated

1шт.

3

D124939

SPRING

1шт.

4

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60; 10.9

1шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

6

186905A1

BUSHING

1шт.

7

187035A2

SLEEVE

1шт.

8

R14771

WASHER

Belleville

1шт.

9

1342374C1

DISC

Friction

1шт.

10

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

11

186908A2

LEVER

Foot Operated

1шт.

11

87352487

LEVER

Lever, Control, Foot Operated; Replaces 186908A2

1шт.

12

296270A1

CABLE,2032mm L

1шт.

13

L12437

BALL JOINT,#10 - 32 x 7/8"

1шт.

14

225-14210

NUT,#10-32

2шт.

15

492-11010

LOCK WASHER,#10

1шт.

16

309699A1

BRACKET

Foot Operated

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

832-41406

NUT,M6 x 1, Cl 8

2шт.

20

304818A1

COLLAR CLAMP

1шт.

21

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

1шт.

22

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

23

833-40304

SPRING NUT,M4, U

M4

2шт.

24

236217A1

CRADLE

1шт.

25

811-8025

BOLT,Sht Sq Nk, M8 x 1.25 x 25mm, Cl 8.8

M8 x 25

1шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

27

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

29

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

31

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

32

432-48

COTTER PIN,1/16" x 1/2"

1шт.

33

386880A2

STOP

1шт.
