(09-20) - COUNTERWEIGHTS - DRAWBAR (Nov 3 2009 8:28AM)

Запчасти Case 75XT (09-20) - COUNTERWEIGHTS - DRAWBAR (Nov 3 2009 8:28AM) (09) - CHASSIS

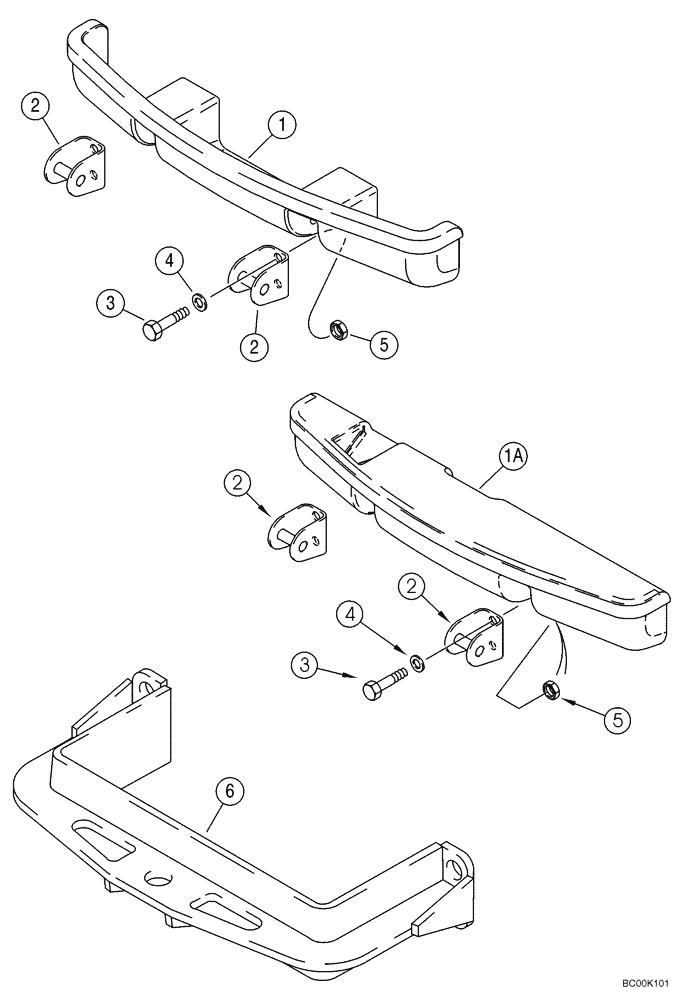

Схема запчастей Case 75XT - (09-20) - COUNTERWEIGHTS - DRAWBAR (Nov 3 2009 8:28AM) (09) - CHASSIS
2
4
1a
6
5
4
2
2
5
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

192275A1

BALANCER

150 lbs.; Bumper, Rear; Models With Heavy Rear Bumper

1шт.

1a

248143A1

BALANCER

Heavy; Bumper, Rear

1шт.

2

248938A1

SUPPORT

North American Models; Models Without Drawbar; If Used

2шт.

3

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

5

832-41320

NUT,M20 x 2.5, Cl 10

M20; 10.9

4шт.

6

258483A1

DRAWBAR

If Equipped

1шт.

Выбрано товаров: 7
