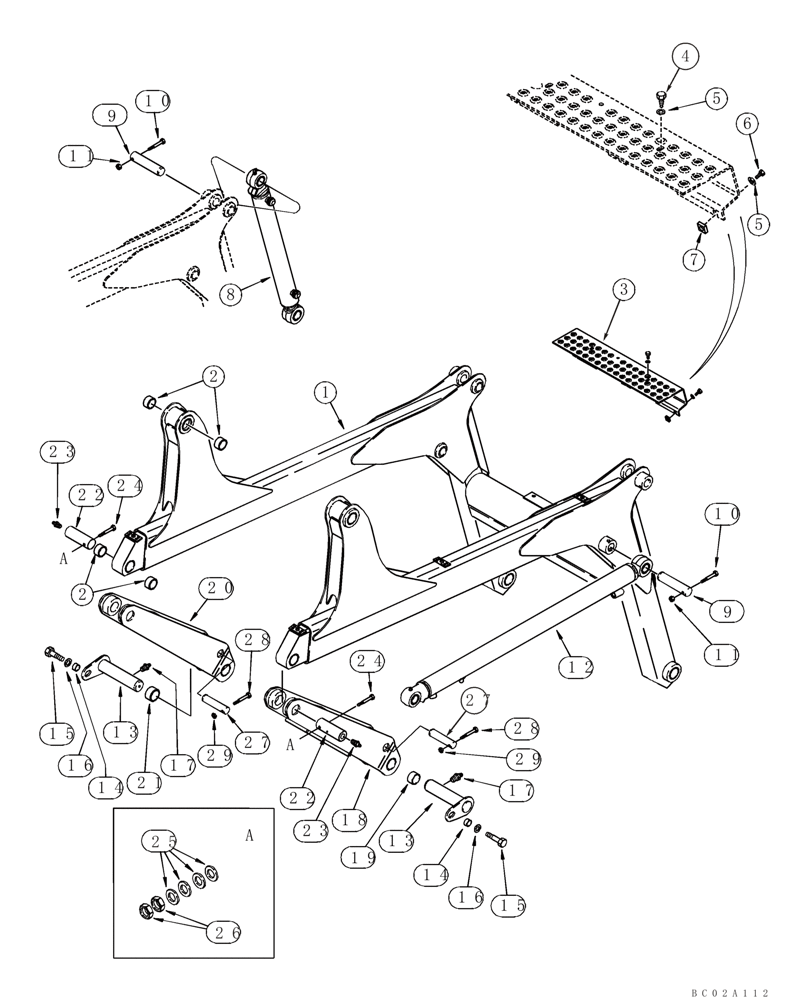

Запчасти Case 75XT (09-01) - FRAME - LOADER LIFT (NOV 14 2011 2:11PM) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
276208A5
ARM, WITH LOADER; Incl. 1, 2; Used In Production Only; For Service Order 337837A2, REF 1
1шт.
87415618
LIFT ARM
Replaces 276208A5
1шт.
1
337837A2
ARM ASSY.
Frame; Incl. 2; Incl. Decals
1шт.
2
141008A1
BUSHING,45.19mm ID x 55mm OD x 30mm L
4шт.
3
87620408
PLATE
476 mm (18-3/4 in) wide; Replaces 432327A1
1шт.
4
779-14819
SELF-TAP SCREW,Hex Hd, M8 x 19
St 8 x 19
2шт.
5
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
5шт.
7
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
M8
3шт.
8
259694A3
CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke
63.5 ID x 525 mm strk; Bucket Tilt; See Figure 08-12
2шт.
8
259694A3R
REMAN-HYD CYLINDER
75XT, ASN JAF0318922
2шт.
8
259694A3C
CORE-HYD CYLINDER
Return Number
2шт.
9
139089A1
PIN,35mm OD x 149mm L
4шт.
10
814-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
4шт.
11
832-41410
NUT,M10 x 1.5, Cl 10
4шт.
12
336187A1
CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke
63,5 ID x 1049 mm strk; Loader Lift; See Figure 08-11
2шт.
12
336187A1R
REMAN-HYD CYLINDER
75XT ASN JAF0318922 (NA)
2шт.
12
336187A1C
CORE-HYD CYLINDER
Return number
2шт.
13
254431A2
PIN
Ear 4.52 mm thick
2шт.
14
49335K
SPACER,1/2" X-Strng Pipe x .406"
2шт.
15
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
2шт.
17
219-86
LUBE NIPPLE,1/8" NPTF
2шт.
18
277133A3
ROD, CONNECTING
Right Hand; Incl. 19
1шт.
19
141008A1
BUSHING,45.19mm ID x 55mm OD x 30mm L
2шт.
20
277132A2
ROD, CONNECTING
Left Hand; Incl. 22
1шт.
21
141008A1
BUSHING,45.19mm ID x 55mm OD x 30mm L
2шт.
22
179637A1
PIN,45mm OD x 134mm L
2шт.
23
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
24
814-10110
BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8
2шт.
25
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
8шт.
26
829-1410
NUT,M10 x 1.5, Cl 10.9
4шт.
27
199896A1
PIN,35mm OD x 124mm L
2шт.
28
814-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8
2шт.
29
832-41410
NUT,M10 x 1.5, Cl 10
2шт.
Выбрано товаров: 35
