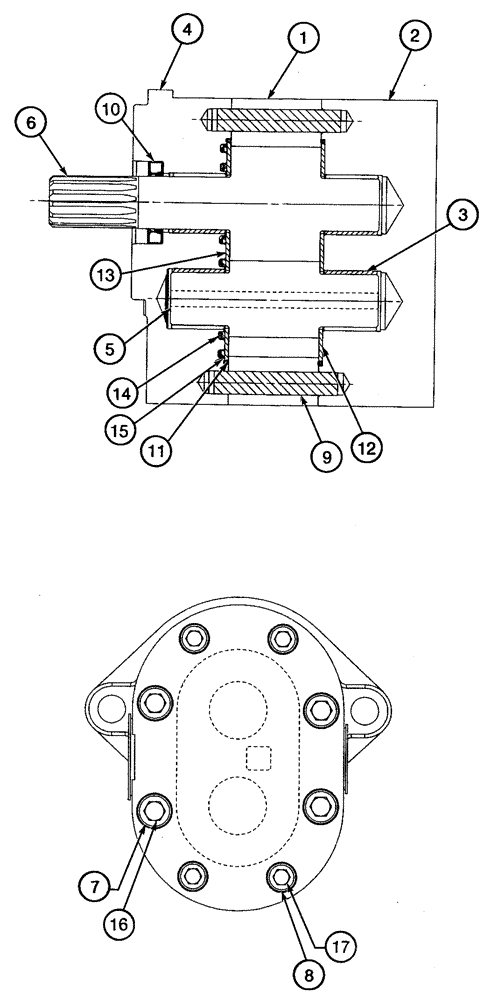

Запчасти Case 75XT (06-18) - PUMP, GEAR (06) - POWER TRAIN

298851A2

PUMP

Includes 1 - 17

1шт.

84561841R

REMAN-HYD PUMP

75XT , Reman for new PN 298851A2

1шт.

84561841C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

324571A1

LARGE PLATE

PLATE, LARGE Gear

1шт.

2

324572A1

COVER

1шт.

3

324574A1

SLEEVE

Bearing

4шт.

84561841R

REMAN-HYD PUMP

75XT, Reman for new PN 324574A1

4шт.

84561841C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

324575A1

BODY

1шт.

5

324576A1

SHAFT

Idler

1шт.

6

324577A1

SHAFT

1шт.

7

A32395

WASHER

4шт.

8

D46324

WASHER

4шт.

9

D149148

DOWEL

2шт.

361942A1

SEAL KIT

Consists Of 10 - 15

1шт.

10

324578A1

OIL SEAL

1шт.

11

324579A1

SEALING RING

2шт.

12

324581A1

LARGE PLATE

PLATE, LARGE

1шт.

13

324582A1

LARGE PLATE

PLATE, LARGE

1шт.

14

324586A1

SEAL

1шт.

15

324587A1

SEAL

1шт.

16

461-33860

HEX SOC SCREW,3/8"-16 x 3 3/4"

3/8 x 3-3/4

4шт.

17

461-33160

HEX SOC SCREW,5/16"-18 x 3 3/4"

5/16 x 3-3/4

4шт.
