Запчасти Case 75XT (06-07) - FILTER ASSY - MOUNTING (06) - POWER TRAIN

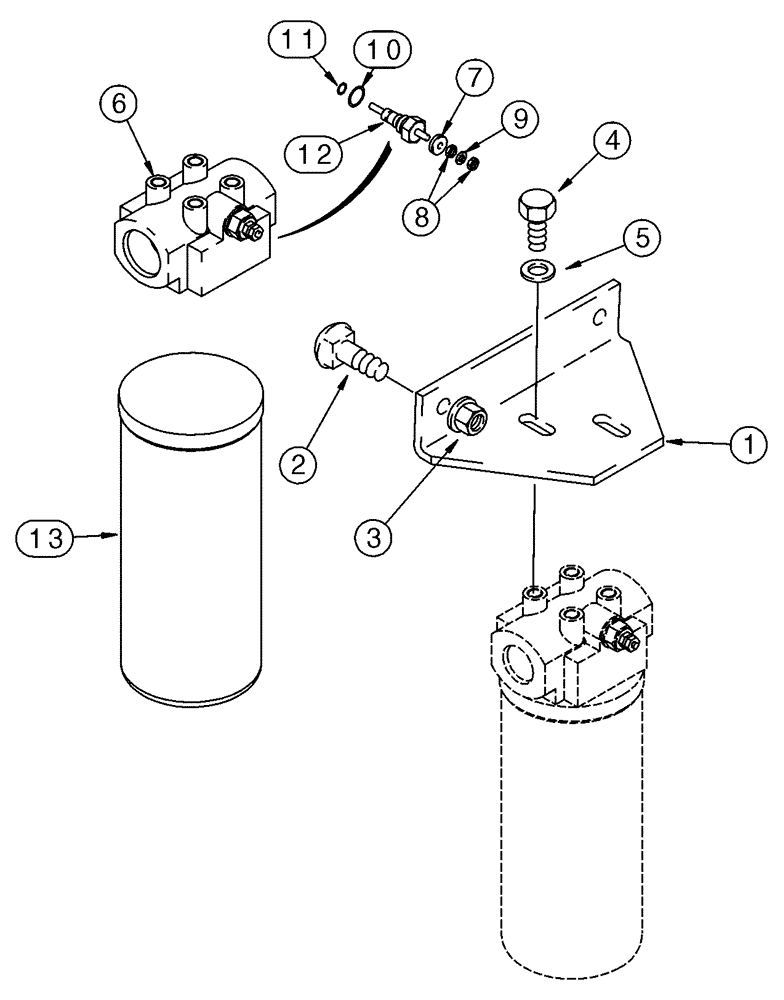

Схема запчастей Case 75XT - (06-07) - FILTER ASSY - MOUNTING (06) - POWER TRAIN
8
9
7
3
1
12
5
13
6
10
4
2
11

Артикул

Название

Примечание

Количество

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

253706A1

ANGLE

1шт.

2

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

222756A2

FILTER ASSY

Return, Consists Of 6 - 13

1шт.

6

222758A1

HEAD

Includes N13268

1шт.

N13268

PRESSURE SWITCH

Consists Of 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

Washer, Special, Red, White

1шт.

8

129-667

NUT,#10-32, LH

2шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

Indicator

1шт.

13

N9025

HYDRAULIC OIL FILTER

1шт.

Выбрано товаров: 17
