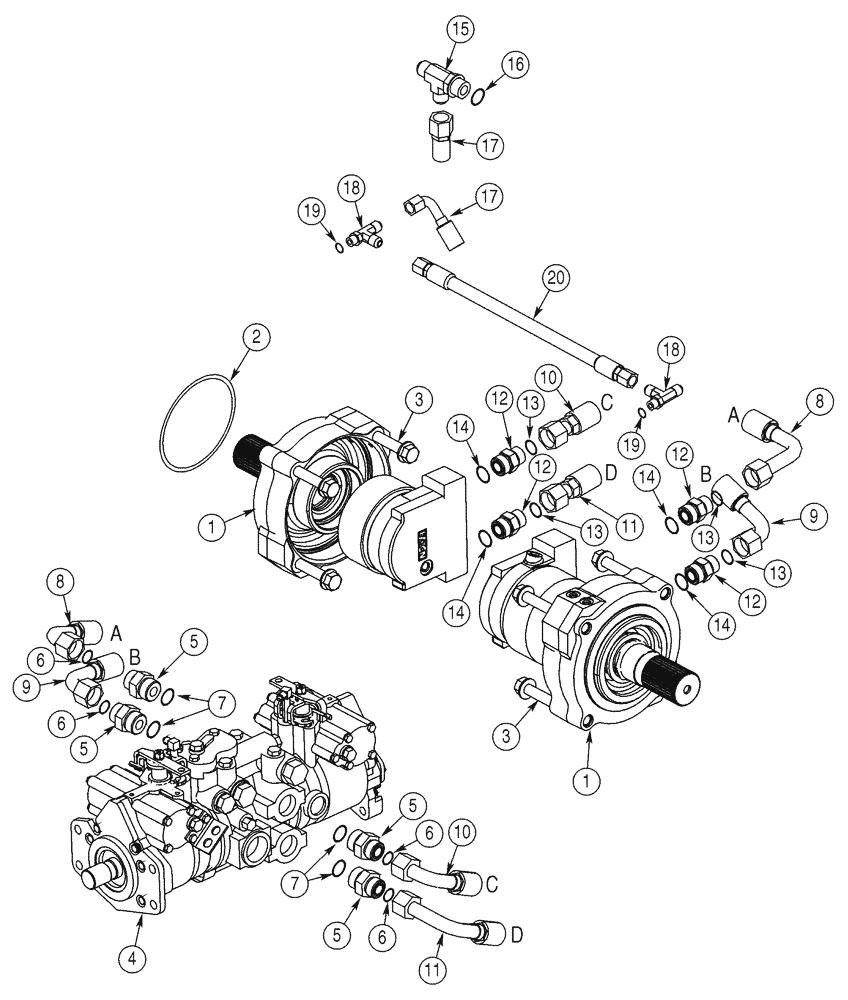

Запчасти Case 75XT (06-06) - HYDROSTATICS - PUMP AND DRIVE MOTORS (06) - POWER TRAIN

*

North American Models JAF0318922-

1шт.

*

European Models JAF0352169-

1шт.

1

394539A1

MOTOR, HYDRAULIC

See Figure 06-20, 07-05

2шт.

2

238-5433

O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro

2шт.

3

396491A1

BOLT

8шт.

4

394132A2

PUMP, HYDRAULIC,46 CC

See Figure 06-12 - 06-17

1шт.

4

87298030

REMAN-HYD PUMP

Remanufactured HYD PUMP

1шт.

4

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

5

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1-3/16 fc x 1-5/16 Or, Inc. 6, 7

4шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

430385A1

HOSE ASSY.

575 mm (22-21/32 in), Pump to Right Hand Drive Motor

1шт.

9

397094A1

HOSE ASSY.,19.05mm ID x 540mm L

525 mm (20-11/16 in), Pump to Right Hand Drive Motor

1шт.

10

430237A1

HOSE ASSY.

770 mm (30-11/32 in), Pump to Left Hand Drive Motor

1шт.

11

430236A1

HOSE ASSY.

820 mm (32-5/16 in), Pump to Left Hand Drive Motor

1шт.

12

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 13, 14

4шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x Or, Includes 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

428902A1

HOSE ASSY.

510 mm (20-3/32 in), Motor Case to Tandem Pump Case

1шт.

18

218-5650

TEE,37 Degree, 3/4"-16, 9/16"-18 O-Ring Run, 3/4"-16

3/4 fl x fl x 9/16 Or, Includes 19

2шт.

20

397093A1

HOSE ASSY.

488 mm (19-1/4 in), Motor to Motor Case Drain, For Attaching Parts, See Figure 07-03, REF 10

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
