Запчасти Case 75XT (06-05) - HYDROSTATICS - PUMP AND DRIVE MOTORS (06) - POWER TRAIN

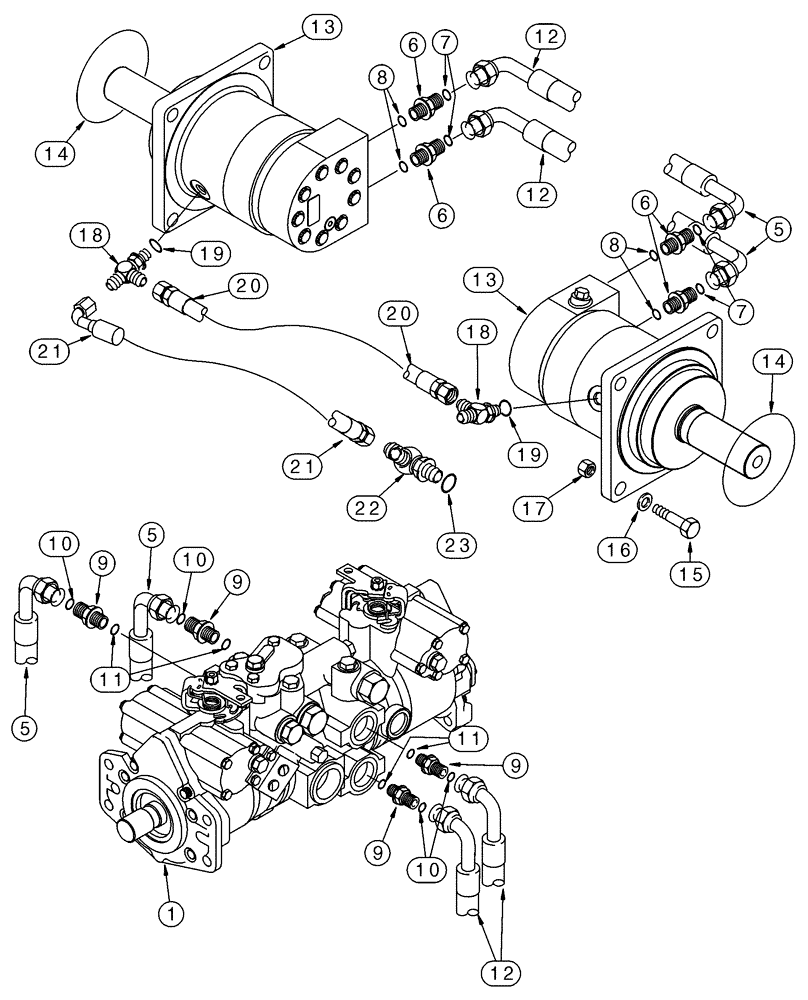

Схема запчастей Case 75XT - (06-05) - HYDROSTATICS - PUMP AND DRIVE MOTORS (06) - POWER TRAIN
8
10
23
5
12
18
15
13
21
19
9
5
10
19
7
12
12
16
11
22
10
6
9
1
6
17
9
18
11
8
21
7
9
20
14
20
5
14
6
13

Артикул

Название

Примечание

Количество

*

North American Models -JAF0318921

1шт.

*

European Models -JAF0352168

1шт.

1

394132A1

PUMP, HYDRAULIC

Replaces 198150A4, 198150A5, See Figure 06-09, 06-12 - 06-17, If Used

1шт.

1

394132A2

PUMP, HYDRAULIC,46 CC

See Figure 06-09, 06-12 - 06-17, If Used

1шт.

1

87298030

REMAN-HYD PUMP

Remanufactured HYD PUMP

1шт.

1

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

5

292729A1

HOSE ASSY.

575 mm (22-5/8 in)

2шт.

5

397094A1

HOSE ASSY.,19.05mm ID x 540mm L

525 mm (20-11/16 in), Use With 394132A2, Pump to Right Hand Drive Motor

2шт.

6

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 7, 8

4шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1-3/16 fc x 1-5/16 Or, Inc. 10, 11

4шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

312563A1

HOSE ASSY.,19.05mm ID x 567mm L

567 mm (22-5/16 in)

2шт.

12

397095A1

HOSE ASSY.,19.05mm ID x 517mm L

517 mm (20-3/8 in), Use With 394132A2, Pump to Left Hand Drive Motor

2шт.

13

308606A3

MOTOR, HYDRAULIC

-JAF0318181; Replaces 308606A2, See Figure 06-19

2шт.

13

371561A1

MOTOR, HYDRAULIC

JAF0318182 - JAF0318921; Models With Hydraulic Actuated Brake, See Figure 06-20

2шт.

13

87523832

MOTOR, HYDRAULIC

Replaces 371561A1 See Fig 06-22A

2шт.

13

87523832R

REMAN-HYD MOTOR

75XT

2шт.

13

87523832C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

14

238-5433

O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro

2шт.

15

319619A1

BOLT,M16 x 2 x 60mm, Cl 10.9

M16 x 60; 10.9, Replaces 868-16060

8шт.

15

396491A1

BOLT

8шт.

16

496-81004

WASHER,41/64" x 1.047" x .134", HDN

41/64 x 1-15/32 x 5/32, Replaces 896-11016

8шт.

17

832-41316

NUT,M16 x 2, Cl 10

8шт.

18

218-5650

TEE,37 Degree, 3/4"-16, 9/16"-18 O-Ring Run, 3/4"-16

3/4 fl x fl x 9/16 Or, Case Drain Drive Motor, Includes 19

2шт.

20

314407A2

HOSE ASSY.

600 mm (23-5/8 in)

1шт.

20

397093A1

HOSE ASSY.

488 mm (19-1/4 in), Use With 371561A1, Motor to Motor Case Drain

1шт.

21

313617A1

HOSE ASSY.

575 mm (22-5/8 in)

1шт.

22

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x Or, Includes 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 33
