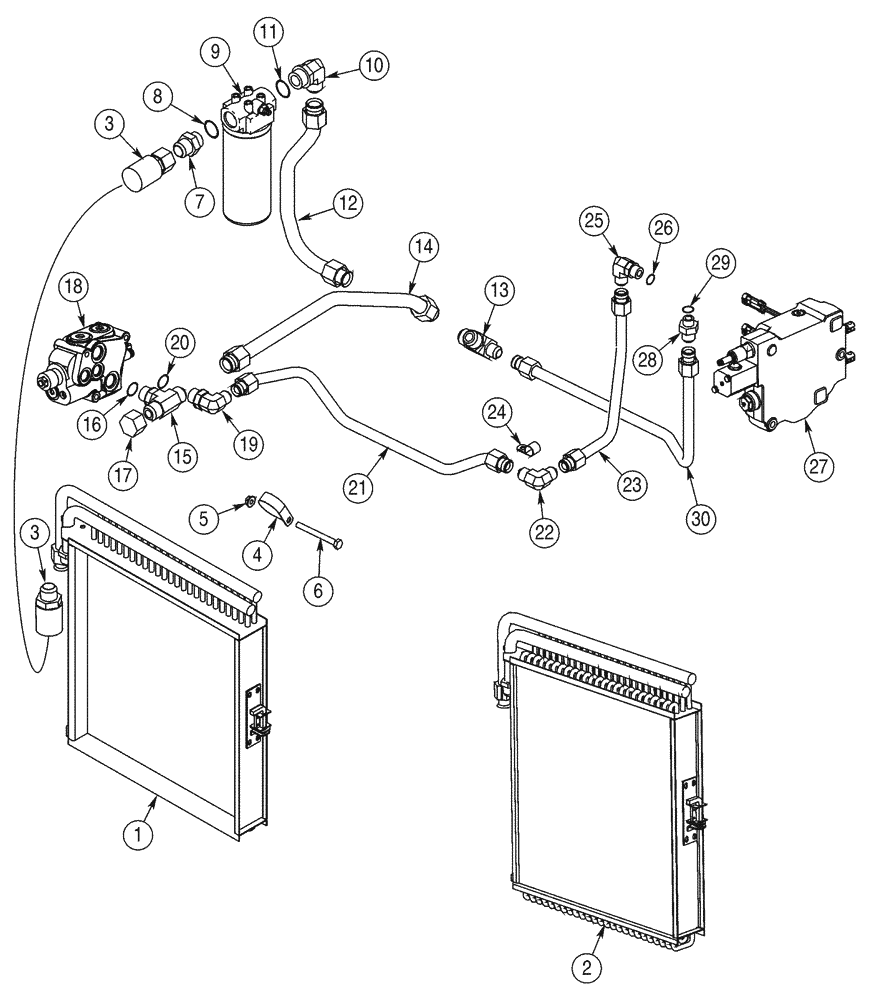

Запчасти Case 75XT (06-04) - HYDROSTATICS - AUXILIARY VALVE PLUMBING (06) - POWER TRAIN

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

238693A1

COOLER, OIL

Without Turbulators, Behr# BM20565 And Core Length Of 20-1/4"

1шт.

2

237994A2

COOLER, OIL

Models With High Flow Gear, See Figure 08-32 - 08-37; With Turbulators, Behr# BM20561 And Core Length Of 20-1/4"

1шт.

3

430163A1

HOSE ASSY.

1550 mm (61-1/32 in), Serial Range: Filter-Cooler

1шт.

4

515-23476

CLAMP,1 7/8", Insul, 3/8" Bolt

1-7/8 ID

1шт.

5

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

6

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 x 95

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

222756A2

FILTER ASSY

Return, See Figure 06-07

1шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

419055A1

TUBE

Return Filter Inlet

1шт.

13

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

1шт.

14

419058A1

TUBE

Auxiliary Valve Outlet

1шт.

15

218-5512

TEE,1 5/16"-12, 37 Degree x1 5/16"-12 x 1 1/16"-12, O-Ring Br

Includes 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

218-758

CAP,37 Degree, 1 5/16"-12

1-5/16

1шт.

18

417369A1

VALVE

1 spool, Auxiliary, See Figure 08-08, 08-20

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

419091A1

TUBE

Auxiliary Valve Supply

1шт.

22

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

1-1/16 fl x fl

1шт.

23

419063A1

TUBE

Loader Valve Power Beyond Port

1шт.

24

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

25

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

REF

INSTRUCTION

Valve, Control, See Figure 08-15, 08-17

1шт.

28

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

419053A1

TUBE

Loader Valve Outlet

1шт.
