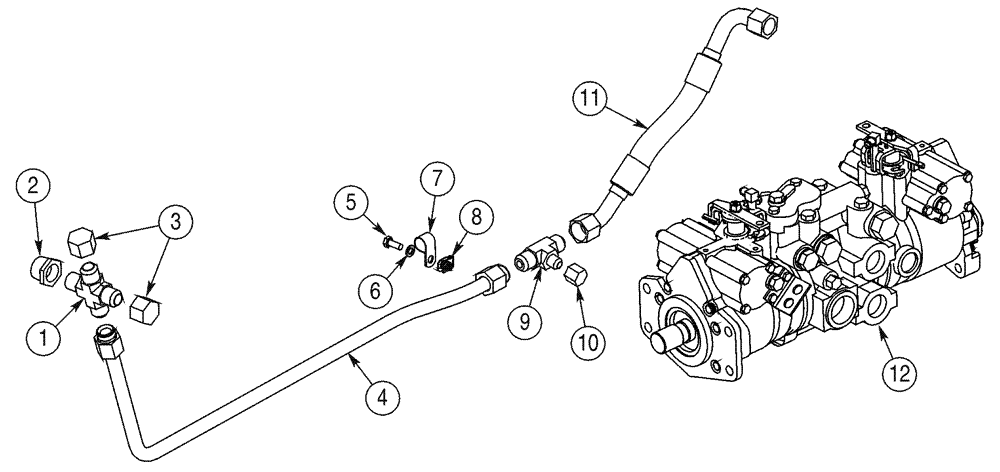

Запчасти Case 75XT (06-03) - HYDROSTATICS - PUMP AND RETURN LINES (06) - POWER TRAIN

*

North American Models JAF0318922-

1шт.

*

European Models JAF0352169-

1шт.

1

306389A1

CROSS

1шт.

2

221-1604

REDUCER,Hex, 1" x 3/4" NPT

1 x 3/4

1шт.

3

218-335

CAP,37 Degree, 1 1/16"-12

If Used

2шт.

3

218-756

CAP,37 Degree, 7/8"-14

If Used

2шт.

4

419093A1

TUBE

Case, Serial Range: Drain-Tank

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

1шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

8

122158A1

NUT,M8, U

1шт.

9

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

1шт.

10

218-755

CAP,37 Degree, 3/4"-16

1шт.

11

429623A1

HOSE ASSY.

430 mm (16-15/16 in), Pump Case To Tank

1шт.

12

394132A2

PUMP, HYDRAULIC,46 CC

See Figure 06-12 - 06-17

1шт.

12

87298030

REMAN-HYD PUMP

Remanfuactured HYD PUMP

1шт.

12

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.
