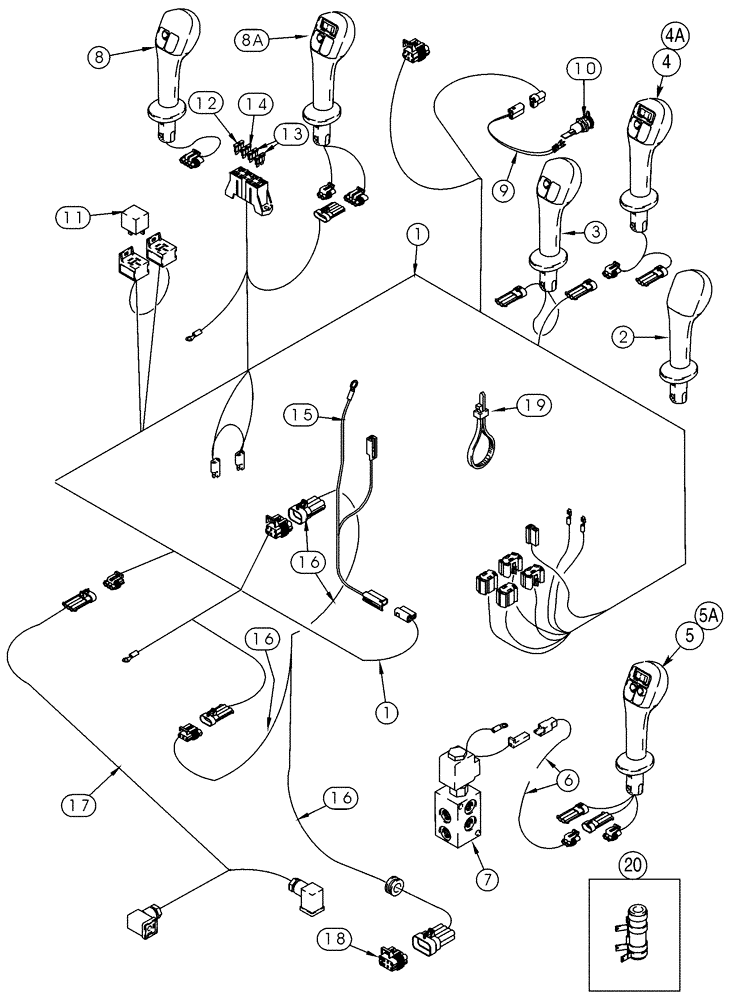

Запчасти Case 75XT (04-11) - HARNESS - CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS

1

230101A6

HARNESS

Chassis Options, With 9-Pin Flasher Connector, Replaces 230101A5, If Used

1шт.

1

377812A1

HARNESS

Chassis Options, With Flasher Harness Connectors, If Used

1шт.

1

400180A1

HARNESS

Chassis Options, With Coupler Timer Harness, If Used

1шт.

2

235763A1

HANDLE

Left Hand, No Switches

1шт.

3

235766A2

HANDLE

Right Hand, Horn, See Figure 04-23

1шт.

4

233436A2

HANDLE

Right Hand, Horn, Turn Signal, See Figure 04-23, If Used

1шт.

4a

379500A1

HANDLE

Right Hand, Horn, Turn Signal, See Figure 04-23, If Used

1шт.

5

308598A1

HANDLE

Right Hand, Horn, Turn Signal, Ride Control, See Figure 04-23, If Used

1шт.

5a

379501A1

HANDLE

Right Hand, Horn, Turn Signal, Ride Control, See Figure 04-23, If Used

1шт.

6

310838A1

HARNESS

Ride Control, See Figure 08-09

1шт.

7

308023A1

VALVE

Ride Control, See Figure 08-09

1шт.

8

235765A2

HANDLE

Left Hand, Brake, See Figure 04-24

1шт.

8a

235909A3

HANDLE

Left Hand, Brake, High Flow, See Figure 04-24

1шт.

9

276912A1

HARNESS

Accessory Outlet, Europe Only

1шт.

10

142211A1

SOCKET

Europe Only

1шт.

11

D128310

RELAY

30 amp, Accessory Power

1шт.

12

A149802

FUSE

20 amp

1шт.

13

A149800

FUSE,10 Amp

10 amp

2шт.

14

A149803

FUSE,25 Amp

25 amp

1шт.

15

259347A1

HARNESS

Hydraulic Coupler, If Equipped, See Figure 08-10, 08-11

1шт.

16

244893A1

HARNESS

Front Auxiliary Controls, If Equipped

1шт.

16

426764A1

HARNESS

Front Auxiliary Controls, North American Models JAF0318922-, European Models JAF0352169-, See Figure 04-20

1шт.

17

381005A1

HARNESS

High Flow, Gear, If Equipped, See Figure 08-27, 08-33

1шт.

18

256350A1

CONNECTOR, ELEC

CONNECTOR If Equipped, See Note

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

307153A1

RESISTOR

12 V, Blower, No Longer Available, Order 359504A1

1шт.

20

359504A1

RESISTOR

Blower

1шт.

314944A1

HARNESS

Blower Switch, If Equipped, See Figure 09-49

1шт.

314945A1

HARNESS

Blower Switch, Main, If Equipped, See Figure 09-49

1шт.

317859A1

HARNESS

Models with Deluxe Heater, See Figure 09-50

1шт.

403512A1

HARNESS

Cab, Models with Deluxe Heater, See Figure 09-50

1шт.

Note:Required for attachments that will mount to the front auxiliary controls harness, REF 16 shown above.

1шт.

Nota: Nécessaires pour les outils posés sur le faisceau des commandes auxiliaires, ref. 16 montré ci-dessus.

1шт.

Hinweis: Für Anbaugeräte erforderlich, die am vorderen Kabelbaum für die Anbaugeräte-Bedienelemente angeschlossen werden, siehe Ref. 16 oben.

1шт.

Nota: Requerido para accesorios que se van a montar en el mazo de los controles auxiliares delanteros, REF 16 que se muestra arriba.

1шт.
