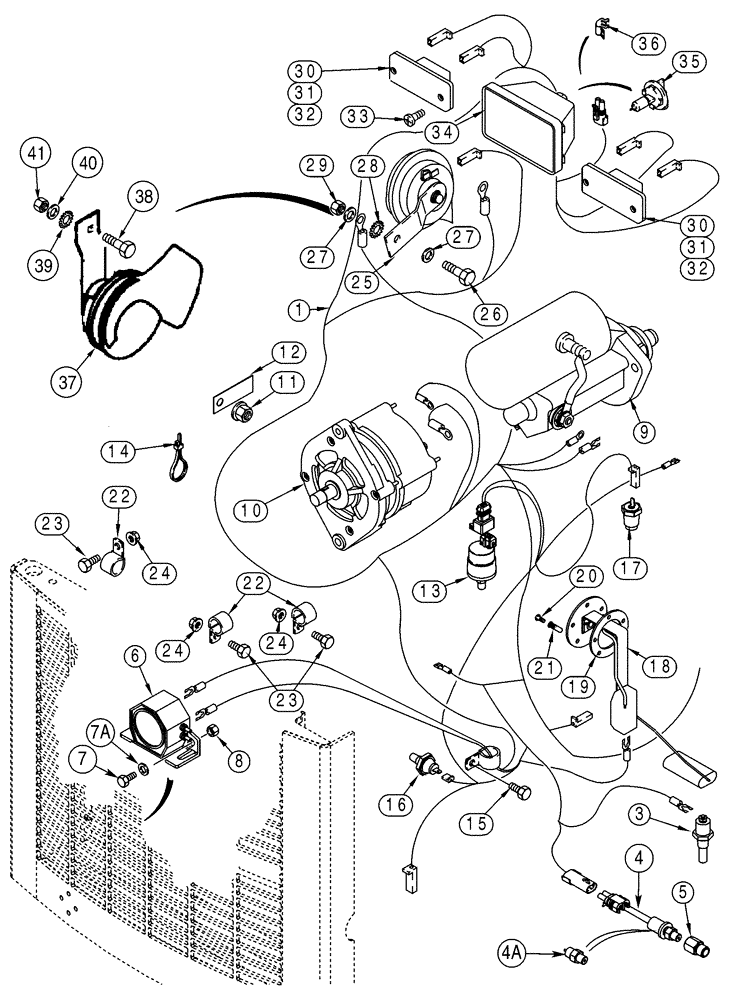

Запчасти Case 75XT (04-08) - HARNESS, REAR - CHASSIS (04) - ELECTRICAL SYSTEMS

*

North American Models -JAF0318921

1шт.

*

European Models -JAF0352168

1шт.

1

255148A6

HARNESS

Chassis, Includes 2, Replaces 255148A5, Use With Injection Pump J931397, See Figure 03-09

1шт.

1

349059A1

HARNESS

Chassis, Includes 2, Use With Injection Pump J935677, See Figure 03-12, - JAF0317913

1шт.

1a

385507A1

HARNESS

Chassis, JAF0317914 -, Not Illustrated

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

Not Illustrated, See Figure 04-07

1шт.

3

H439301

SWITCH

Hydraulic Temperature

1шт.

4

293714A1

IGNITION SWITCH

Backup Alarm, - JAF0317913

1шт.

4a

333268A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm, JAF0317914 -

1шт.

5

D137424

FITTING

9/16 NF Or x 1/8

1шт.

6

324299A1

ALARM

Back-up, Replaces 283178A3, Production Only, For Service Order 325258A1

1шт.

7

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

Replaces 614-6016

2шт.

7a

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

832-41306

NUT,M6 x 1, Cl 10

2шт.

9

1987559C1

STARTING MOTOR

See Figure 04-01

1шт.

9

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter 12 volt 2.5KW

1шт.

9

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

9

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

9

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

10

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, See Figure 04-02

1шт.

10

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

12

A37179

CLIP

1шт.

13

293797A1

RESTRICTION SWITCH

Air

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

277016A1

PRESSURE SWITCH

Engine Oil, M10

1шт.

17

1345488C2

PRESSURE SWITCH

Engine Temp

1шт.

18

238143A1

SENDER UNIT

Fuel Level

1шт.

19

A11822

GASKET

If Used

1шт.

19

528359R4

GASKET,3.05mm Thk

If Used

1шт.

20

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

5шт.

21

196985A1

ROD,THREADED

THREADED ROD Used With 490-11012, Use Loctite No. 243

5шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

22

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

25

341825A1

HORN

12V, Replaces 190155A1, N.A. Only, See Figure 04-26

1шт.

26

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

29

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

30

233163A2

LAMP, TAIL

LIGHT, TAIL Includes 31 - 33

2шт.

31

NSS

NOT SOLD SEPARAT

Lens, Red

1шт.

32

259499A1

BULB

12V, 5W

1шт.

33

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

No. 8 st x 7/8

2шт.

34

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Includes 35, 36

1шт.

35

259702A1

BULB

1шт.

36

259701A1

CLIP,ELECTRICAL

1шт.

Europe Only

1шт.

37

341825A1

HORN

12V, See Figure 04-26

1шт.

38

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

39

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

40

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

41

832-10406

NUT,M6 x 1, Cl 8

1шт.
