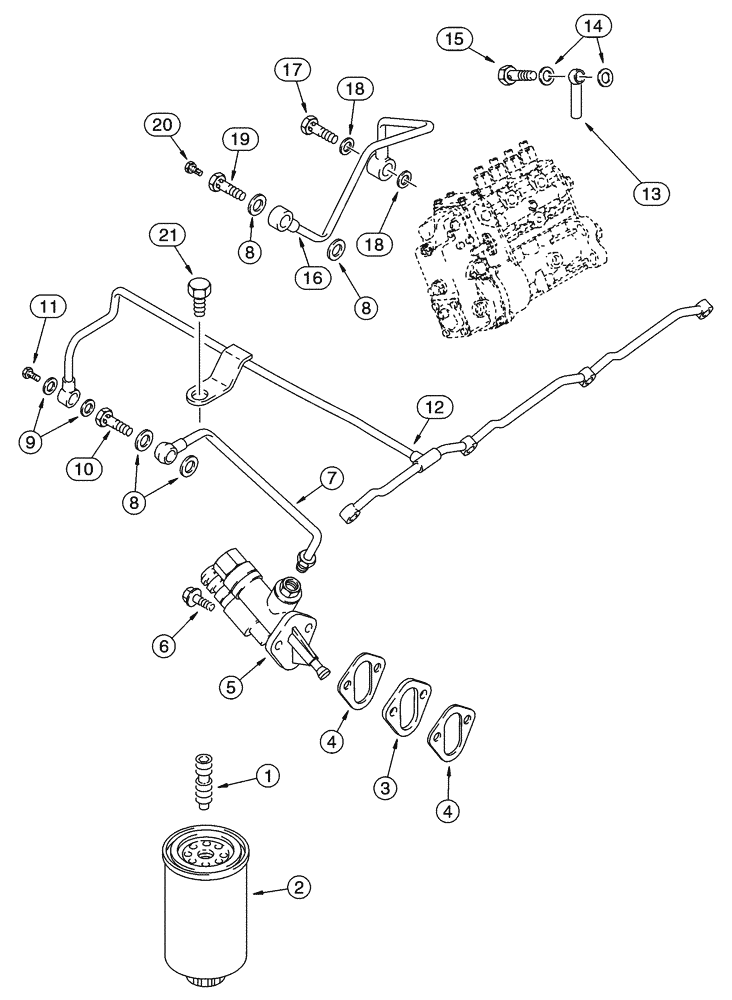

Запчасти Case 75XT (03-08) - FUEL FILTER - PUMP, TRANSFER (03) - FUEL SYSTEM

4-390 Emissions Certified Engine

1шт.

Use With Injection Pump J931397

1шт.

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J931062

FILTER

1шт.

3

J914284

SPACER

1шт.

4

J931059

GASKET

Replaces J931348

2шт.

5

J933254

FEED PUMP

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

1шт.

8

J918191

PACKING RING

12 x 18 x 1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

M12 x 24

1шт.

11

J924726

BANJO BOLT

1шт.

12

J927633

TUBE

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J932096

VALVE

1шт.

16

J935023

FUEL TUBE,8 mm OD

Replaces J932035

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

Includes 19, 20

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.
