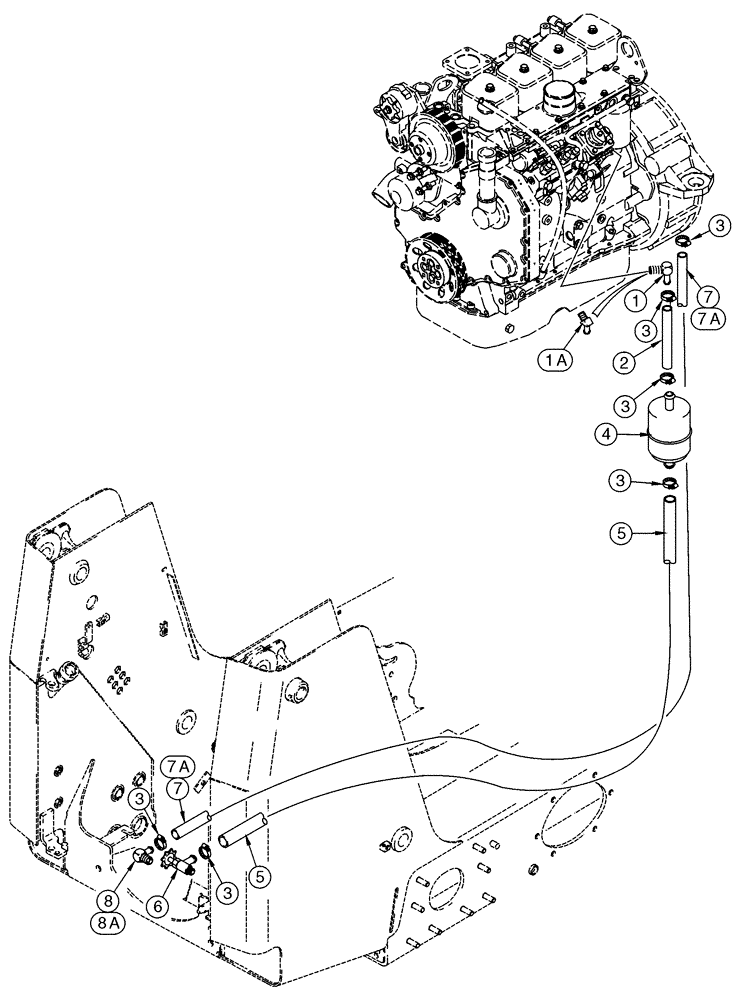

Запчасти Case 75XT (03-01) - FUEL LINES (03) - FUEL SYSTEM

4-390 Emissions Certified Engine

1шт.

1

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT, Use With Injection Pump J931397, See Figure 03-09

1шт.

1a

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 stem x 1/4 PT, Use With Injection Pump J935677, See Figure 03-09

1шт.

2

D138967

FUEL HOSE

80 mm (3-1/4 in), Cut From A21561X

1шт.

3

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

4

D139225

FILTER, FUEL

In-Line

1шт.

5

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in)

1шт.

6

H434805

VALVE

For Additional Fuel Shut Off Valve For 75XT Models With High-Flow Hydraulics , See Figure 08-30, Ref 11, 12, 13 0r 08-36, Ref 15, 16, 17

1шт.

7

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in), Use With Injection Pump J931397, See Figure 03-06

1шт.

7a

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

Use with Injection Pump J935677, See Figure 03-10

1шт.

8

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT, Use With Injection Pump J931397, See Figure 03-09

1шт.

8a

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

Use with Injection Pump J935677, See Figure 03-10

1шт.
