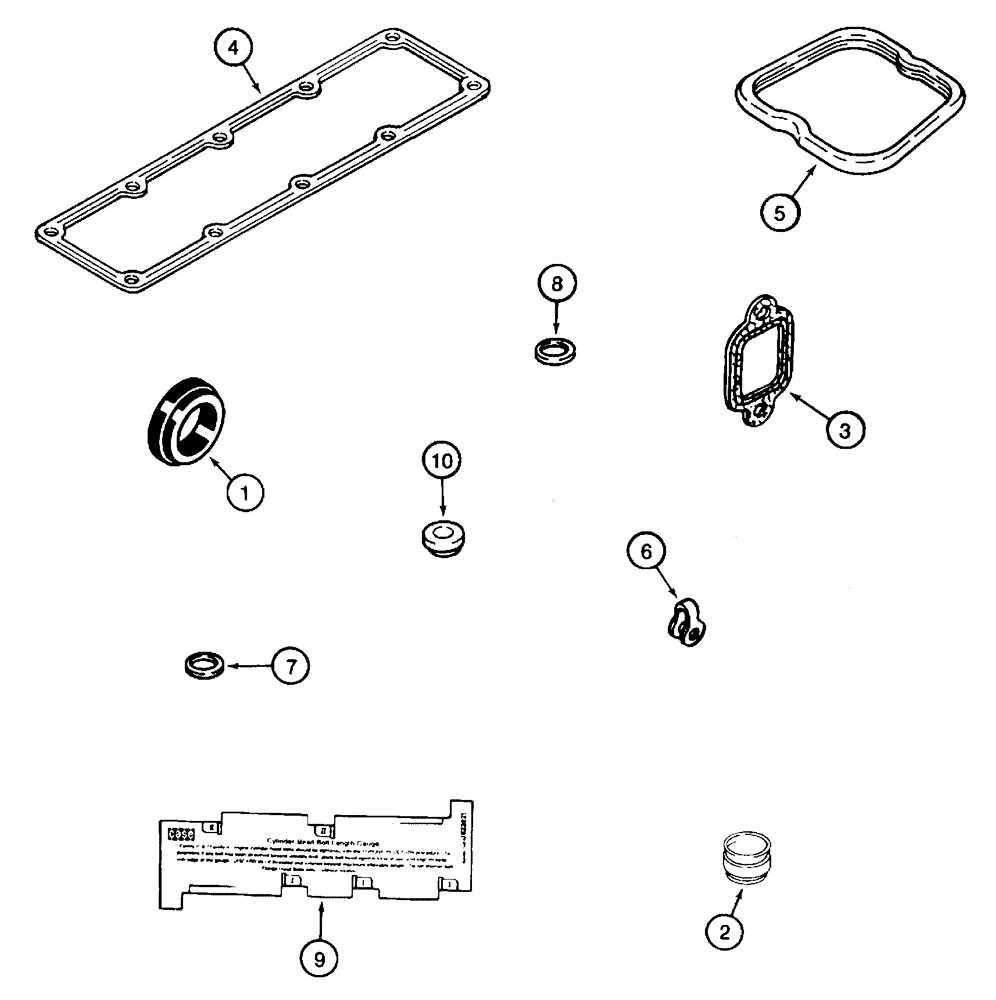

Запчасти Case 75XT (02-22) - GASKET KIT (02) - ENGINE

4-390 Emissions Certified Engine

1шт.

Use With Injection Pump J931397

1шт.

Valve Grind

1шт.

A77911

SEAL PACKAGE

Consists Of 1 - 10, No Longer Available, Order A77975, See Figure 02-23

1шт.

1

J923331

GASKET

See Figure 02-23

1шт.

2

J901097

SEAL

See Figure 02-15

4шт.

3

J905443

MANIFOLD GASKET

See Figure 02-16

4шт.

4

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-12

1шт.

5

J930906

GASKET

See Figure 02-12

4шт.

6

J903380

SEAL

See Figure 03-06

4шт.

7

J930324

SEAL

See Figure 03-06

4шт.

8

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-11

4шт.

9

J823921

GAUGE

1шт.

10

J928406

ISOLATOR

See Figure 02-15

4шт.

North America

1шт.

A77931

SPARE PART SET

Consists Of 1 - 10

1шт.

1

J923331

GASKET

See Figure 02-15

1шт.

2

J921640

SEAL

See Figure 02-16

8шт.

3

J905443

MANIFOLD GASKET

See Figure 02-12

4шт.

4

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-12

1шт.

5

J930906

GASKET

See Figure 02-15

4шт.

6

J903380

SEAL

See Figure 03-07

4шт.

7

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, See Figure 03-07, 03-11

4шт.

8

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-11

4шт.

9

J823921

GAUGE

1шт.

10

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-15

4шт.
