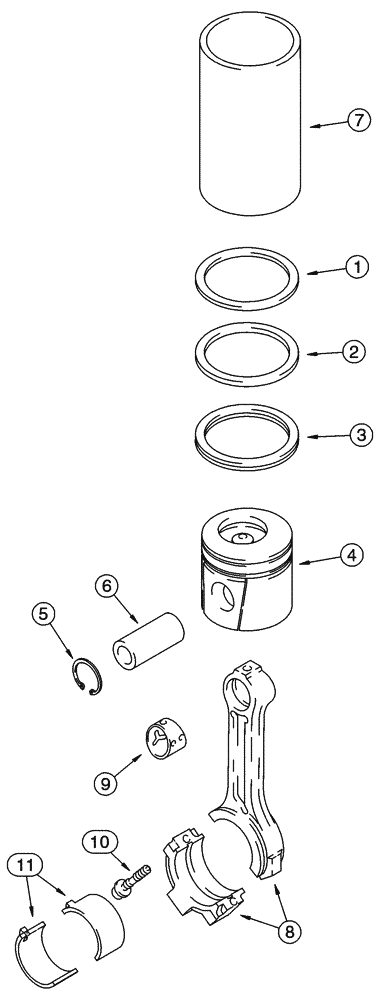

Запчасти Case 75XT (02-21) - PISTONS - CONNECTING RODS (02) - ENGINE

*

4-390 Emissions Certified Engine

1шт.

*

Use With Injection Pump J931397

1шт.

J800455

PISTON ASSY.

Standard, Consists Of J804930, 1 - 5

6шт.

J804930

PISTON RING SET

Standard, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J800456

PISTON ASSY.

0,5 mm, Oversize, Consists Of J804931, 1 - 5

4шт.

J804931

PISTON RING SET

0,5 mm, Oversize, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J800457

PISTON ASSY.

1,0 mm, Oversize, Consists Of J804932, 1 - 5

1шт.

J804932

PISTON RING SET

1,0 mm, Oversize, Consists Of 1 - 3

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

Use With J800455

1шт.

*

Connecting Rod

1шт.

J942581

ROD, CONNECTING

Consists Of 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod

4шт.

84145405R

REMAN-CONNECTING ROD

75XT, Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

J901085

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Standard

4шт.

11

A77466

BEARING SET

0,25 mm, Undersize

4шт.

11

A77467

BEARING LINER

0,50 mm, Undersize

4шт.

11

A77468

BEARING SET

0,75 mm, Undersize

4шт.

11

A77469

BEARING SET

1,0 mm, Undersize

4шт.

*

4-390 Emissions Certified Engine

1шт.

J800681

SET OF PARTS

Use to Service Piston 3935447, Consists Of J804930, 1 - 3

4шт.

*

Use With Injection Pump J935677

1шт.

J800682

SET OF PARTS

Use to Service Piston 3935442, Consists Of J804930, 1 - 3

4шт.

J800683

SET OF PARTS

Use to Service Piston 3935443, Consists Of J804930, 1 - 3

4шт.

*

Note: Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid

1шт.

*

Note: La hauteur du piston a été sélectionnée pour obtenir le rapport maximal par cylindre. Pour l'entretien, vérifier la référence des pistons dans le moteur et commander le colis d'entretien correspondant à la référence. La référence du piston a 4 chiff

1шт.

J804930

PISTON RING SET

Standard, Consists Of 1 - 3

1шт.

*

Hinweis: Die Kolbenhöhe wurde so gewählt, daß ein optimales Zylinder-Übersetzungsverhältnis gegeben ist. Zur Wartung die Teilnummer der Kolben im Motor überprüfen und das Servicekit für die entsprechende Nummer anfordern. Die Kolbennummer bzw. die letzten

1шт.

*

Nota: La altura del pistón se seleccionó para obtener la razón óptima por cilindro. Para realizar mantenimiento, comprobar el n° de pieza del pistón en el motor y pedir el juego de mantenimiento para esa pieza, el n° de pistón o los últimos 4 dígitos grab

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

J800684

SET OF PARTS

0,5 mm, Oversize, Consists Of J804931, 1 - 5

4шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

J804931

PISTON RING SET

0,5 mm, Oversize, Consists Of 1 - 3

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

J804932

PISTON RING SET

1,0 mm, Oversize, Consists Of 1 - 3

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

J800685

SET OF PARTS

1,0 mm, Oversize, Consists Of J804932, 1 - 5

4шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

Use With J800455

1шт.

*

Connecting Rod

1шт.

J942581

ROD, CONNECTING

Consists Of 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod

4шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Standard

4шт.

11

A77466

BEARING SET

0,25 mm, Undersize

4шт.

11

A77467

BEARING LINER

0,50 mm, Undersize

4шт.

11

A77468

BEARING SET

0,75 mm, Undersize

4шт.

11

A77469

BEARING SET

1,0 mm, Undersize

4шт.

*

4-390 Emissions Certified Engine

1шт.

*

Use With Injection Pump J935671

1шт.

*

Europe

1шт.

J804980

PISTON & RINGS KIT

Use to Service Piston 3932514, Consists Of J804930, 1 - 5

4шт.

J800345

PISTON & RINGS KIT

Use to Service Piston 3934975, Consists Of J804930, 1 - 5

4шт.

J800349

PISTON & RINGS KIT

Use to Service Piston 3934976, Consists Of J804930, 1 - 5

4шт.

J804930

PISTON RING SET

Standard, Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J920691

SPECIAL RING

2шт.

6

J919053

PISTON PIN

1шт.

J804981

PISTON & RINGS KIT

0,5 mm, Oversize, Consists Of J804931, 1 - 5

4шт.

J804931

PISTON RING SET

0,5 mm, Oversize, Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0,5 mm

1шт.

5

J920691

SPECIAL RING

2шт.

6

J919053

PISTON PIN

1шт.

J804982

PISTON & RINGS KIT

1,0 mm, Oversize, Consists Of J804932, 1 - 5

4шт.

J804932

PISTON RING SET

1,0 mm, Oversize, Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1,0 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

Use With J800455

1шт.
