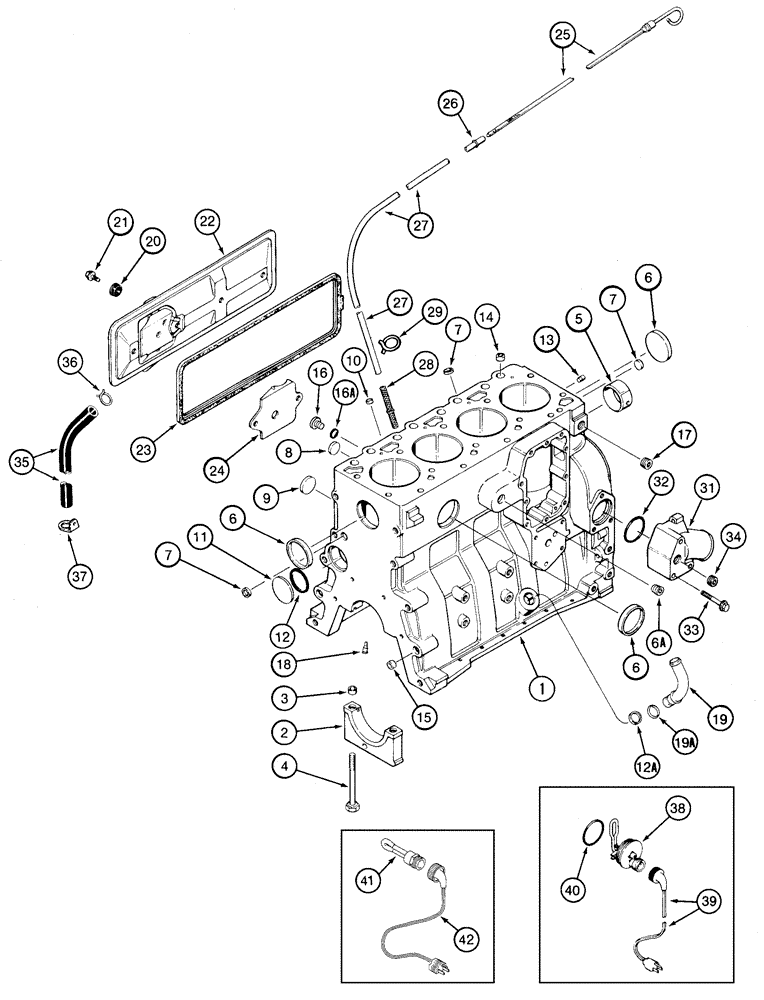

Запчасти Case 75XT (02-18) - CYLINDER BLOCK (NORTH AMERICA) (02) - ENGINE
№
Артикул
Название
Примечание
Количество
*
4-390 Emissions Certified Engine
1шт.
*
Use With Injection Pump J931397
1шт.
*
236304A1
ENGINE ASSEMBLY
ENGINE ASSY Complete Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, No Longer Available, Order 315916A1
1шт.
*
315916A1R
ENGINE, EXCHANGE
ENGINE (EXCHANGE) Basic Service Engine, Remanufactured, For N.A. Only
1шт.
*
315916A1C
CORE-ENGINE
1шт.
*
315916A1
BASIC ENGINE
Basic Service Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner
1шт.
*
J935233
BLOCK ASSY.
Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Consists Of 1 - 8
1шт.
*
JR935233
ENGINE, EXCHANGE
ENGINE (EXCHANGE) Short, Remanufactured, For N.A. Only
1шт.
1
87444172
BLOCK ASSY.
Stripped, Consists Of 2 - 8, Order J933220
1шт.
2
J936791
BEARING CAP
Includes 3, Replaces J903492
5шт.
3
J900068
BEARING WASHER
18 mm OD
10шт.
4
J927948
BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9
10шт.
5
REF
INSTRUCTION
Bushing, See Figure 02-17
1шт.
6
A77782
PLUG
58 mm
1шт.
6a
A77505
PLUG
3/4 PT
1шт.
7
J900956
PLUG
18 mm OD
3шт.
8
41-1616
PLUG,Cup, 1", Stainless
2шт.
*
J933220
PACKAGE,SERVICE
Includes 9 - 18
1шт.
9
J900958
PLUG
32 mm OD
2шт.
10
J900955
PLUG
10 mm OD
3шт.
11
172599
PLUG,Exp, 2 3/8"
60 mm OD, Includes 12
1шт.
12
J926047
O-RING,0.07" Thk x 2.239" ID
57 mm ID
1шт.
12a
J920706
PLUG
22 mm
1шт.
14
J902343
DOWEL
16 mm OD
2шт.
15
J900068
BEARING WASHER
18 mm OD
2шт.
16
J678923
PLUG,M10 x 1
10 mm, Includes 16A
3шт.
16a
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
17
A77429
PLUG
1/2 PT
1шт.
18
J930139
NOZZLE CAP
4шт.
19
J931973
TUBE,0.875" OD
Not Used In This Application
1шт.
19a
J931824
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
Not Used In This Application
1шт.
20
J900267
SEAL
4шт.
21
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
22
J925680
COVER
1шт.
23
J283767
GASKET,7.4mm Thk
1шт.
24
J907586
BAFFLE
1шт.
25
J933333
DIPSTICK
1шт.
26
J905802
FITTING,9.53 mm OD x 39 mm L
1шт.
27
J905801
TUBE
1шт.
28
A77645
TUBE
1шт.
29
214-1308
HOSE CLAMP,#8, 1/2", Spring
2шт.
31
J903102
CONNECTION
1шт.
32
J906697
SEAL,Square, 5.16mm Thk x 50.17mm ID
50 mm ID
1шт.
33
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
3шт.
34
A77429
PLUG
1/2 PT
2шт.
35
J918612
TUBE,360.00 mm
1шт.
36
J904230
CLAMP,25.4mm
1шт.
37
J928989
CLIP
1шт.
37a
J905401
PLUG
35 mm, Oil Filler, Not Illustrated
1шт.
*
Engine Block Heater
1шт.
*
120 Volt
1шт.
*
196803A1
KIT
120V, Consists Of 38 - 40
1шт.
38
NSS
NOT SOLD SEPARAT
Element
1шт.
39
196466A1
ELECTRIC CABLE
1829 mm (72 in)
1шт.
40
J910517
O-RING
1шт.
*
309651A1
KIT
120V, Consists Of 41, 42
1шт.
8
4-390 Emissions Certified Engine
1шт.
*
Use With Injection Pump J931397
1шт.
41
NSS
NOT SOLD SEPARAT
Element, Replaces A77505
1шт.
42
196466A1
ELECTRIC CABLE
1829 mm (72 in)
1шт.
*
240 Volt
1шт.
*
309652A1
KIT
240V, Consists Of 41, 42
1шт.
41
NSS
NOT SOLD SEPARAT
Element, Replaces A77505
1шт.
42
J905114
ELECTRIC CABLE
1829 mm (72 in)
1шт.
*
Repair Kit
1шт.
*
A77907
PACKAGE, REPAIR
Engine Block, Not Illustrated, Consists Of 45 - 52
1шт.
45
J800455
PISTON ASSY.
See Figure 02-21
4шт.
46
J919053
PISTON PIN
See Figure 02-21
4шт.
48
J804940
BEARING SET
See Figure 02-19
4шт.
49
A77895
THRUST BEARING,KIT
See Figure 02-19
1шт.
50
A77911
SEAL PACKAGE
See Figure 02-22
1шт.
51
J283333
CYLINDER HEAD GASKET,2.32mm Thk
See Figure 02-15
1шт.
52
A77673
GASKET KIT
See Figure 02-14
1шт.
*
4-390 Emissions Certified Engine
1шт.
*
326956A1
ENGINE ASSEMBLY
ENGINE ASSY Complete Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Use With Injection Pump J935677, Order 349469A1, No Longer Used
1шт.
*
349469A1R
ENGINE ASSEMBLY
ENGINE ASSY Basic Service Engine, Remanufactured, For N.A. Only; See Note
1шт.
*
349469A1C
CORE-BASIC ENGINE
Return Number
1шт.
*
349469A1
BASIC ENGINE
Basic Service Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner; See Note
1шт.
*
379986A1
Complete Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Use With Injection Pump J935671, Order 377987A1
1шт.
*
87605125
ENGINE,4 Cylinders
Basic Service Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner; See Note
1шт.
*
377987A1R
REMAN-BASIC ENGINE,4 Cylinders
Basic Service Engine With Three Bolt Hole Injection Pump Mounting, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner
1шт.
*
377987A1C
CORE-BASIC ENGINE,4 Cylinders
Return Number
1шт.
*
395885A1
Complete Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Use With Injection Pump J935671, Order 377987A1
1шт.
*
377987A1
BASIC ENGINE,4 Cylinders
Basic Service Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner
1шт.
*
47465946R
REMAN-BASIC ENGINE
Basic Service Engine With Four Bolt Hole Injection Pump Mounting, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner
1шт.
*
47465946C
CORE-BASIC ENGINE
Return Number
1шт.
*
J935600
SHORT ENGINE
Short, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Use With Injection Pump J935677
1шт.
*
J933649
SHORT ENGINE
Short, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Use With Injection Pump J935671
1шт.
*
JR933649
REMAN-SHORT ENGINE
Remanufactured, For N.A. Only
1шт.
*
JC933649
CORE-SHORT ENGINE
Return Number, For N.A. Only
1шт.
1
87444172
BLOCK ASSY.
Stripped, Consists Of 2 - 8, Also Order J933220
1шт.
2
J936791
BEARING CAP
Includes 3, Replaces J903492
5шт.
3
J900068
BEARING WASHER
18 mm OD
2шт.
4
J927948
BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9
10шт.
*
4-390 Emissions Certified Engine
1шт.
*
Use With Injection Pump J935677, J935671
1шт.
5
REF
INSTRUCTION
Bushing, See Figure 02-17
1шт.
6
A77782
PLUG
58 mm
1шт.
6a
A77505
PLUG
3/4 PT
1шт.
7
J900956
PLUG
18 mm OD
3шт.
8
41-1616
PLUG,Cup, 1", Stainless
2шт.
*
J933220
PACKAGE,SERVICE
Includes 9 - 18
1шт.
9
J905369
PLUG
Oil Fill, Left Hand Side, For N.A. Only
2шт.
9
J900958
PLUG
32 mm OD, Europe Only
2шт.
10
J900955
PLUG
10 mm OD
3шт.
11
172599
PLUG,Exp, 2 3/8"
60 mm OD, Includes 12
1шт.
12
J926047
O-RING,0.07" Thk x 2.239" ID
57 mm ID
1шт.
12a
J920706
PLUG
22 mm
1шт.
14
J902343
DOWEL
16 mm OD
2шт.
15
J900068
BEARING WASHER
18 mm OD
2шт.
16
J678923
PLUG,M10 x 1
10 mm, Includes 16A
3шт.
16a
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
17
A77429
PLUG
1/2 PT
1шт.
17a
J678921
PLUG
14 mm, Not Used In This Application, Includes 17B
1шт.
17b
J678912
O-RING,2.2mm Thk x 11.3mm ID
Not used in this application
1шт.
17c
J932296
PLUG
Not Used In This Application, Includes 17D
1шт.
17d
J330478
O-RING,0.07" Thk x 0.676" ID
Not Used In This Application
1шт.
17e
844-8016
BOLT,Hex, M8 x 16mm, Cl 8.8
Not Used In This Application
1шт.
18
J937214
NOZZLE CAP
Replaces J930139
4шт.
19
J931973
TUBE,0.875" OD
Not Used In This Application
1шт.
19a
J931824
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
Not Used In This Application
1шт.
20
J928759
SEALING WASHER
2шт.
21
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
22
J936186
COVER
Replaces J925680
1шт.
23
J283767
GASKET,7.4mm Thk
1шт.
24
J907586
BAFFLE
1шт.
25
J933333
DIPSTICK
1шт.
26
J905802
FITTING,9.53 mm OD x 39 mm L
1шт.
27
J905801
TUBE
1шт.
28
A77645
TUBE
1шт.
29
214-1308
HOSE CLAMP,#8, 1/2", Spring
2шт.
31
J934877
HYD CONNECTOR
1шт.
32
J906697
SEAL,Square, 5.16mm Thk x 50.17mm ID
50 mm ID
1шт.
33
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
3шт.
34
A77429
PLUG
1/2 PT
2шт.
35
J918612
TUBE,360.00 mm
1шт.
36
J904230
CLAMP,25.4mm
1шт.
37
J928989
CLIP
1шт.
37a
J905401
PLUG
35 mm, Oil Filler, Not Illustrated
1шт.
*
Engine Block Heater
1шт.
*
196803A1
KIT
Engine Block Heater, 120V - 750W; Incl. 38 - 40; Install Ref. 38 In Place Of Ref. 6 Plug
1шт.
38
NSS
NOT SOLD SEPARAT
Element, 120V - 750W; Installs In Place Of Ref. 6 Plug
1шт.
39
196466A1
ELECTRIC CABLE
120V - 750W, 1829 mm (72 in)
1шт.
40
J910517
O-RING
1шт.
*
124340A1
KIT
Engine Block Heater, 240V - 750W; Incl 38 - 40; Install Ref 38 In Place Of Ref 6 Plug; Europe Only
1шт.
38
NSS
NOT SOLD SEPARAT
240V - 750W, Element; Install In Place Of Ref 6 Plug
1шт.
39
J905114
ELECTRIC CABLE
240V - 750W, 1829 mm (72 in)
1шт.
40
J910517
O-RING
1шт.
*
309651A1
KIT
Engine Block Heater, 120V - 750W; Incl. 41, 42; Install Ref. 41 In Place Of Ref. 6A Plug
1шт.
41
NSS
NOT SOLD SEPARAT
Element, 120V - 750W; Installs In Place Of Ref. 6A Plug
1шт.
42
196466A1
ELECTRIC CABLE
120V - 750W, 1829 mm (72 in)
1шт.
*
309652A1
KIT
Engine Block Heater, 240V - 750W; Install Ref 41 In Place Of Ref 6A Plug
1шт.
41
NSS
NOT SOLD SEPARAT
240V - 750W, Element; Installs In Place Of Ref 6A Plug
1шт.
42
J905114
ELECTRIC CABLE
240V - 750W, 1829 mm (72 in)
1шт.
*
240 Volt
1шт.
