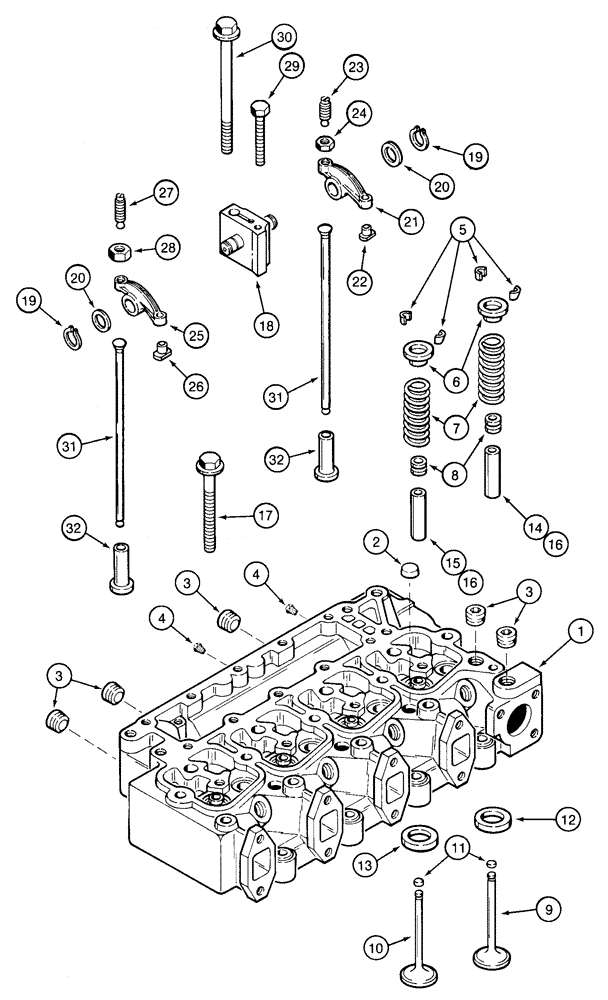

Запчасти Case 75XT (02-16) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

4-390 Emissions Certified Engine

1шт.

JR933494

REMAN-CYLINDER HEAD

Remanufactured, N.A. Only

1шт.

JC929736

CORE-CYLINDER HEAD

1шт.

J933494

HEAD (CYLINDER)

Consists Of 1 - 10

1шт.

1

J933419

HEAD (CYLINDER)

Includes 2

1шт.

2

A77783

PLUG

21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

Replaces A77429

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

CASJ900250

RETAINER

16шт.

6

J935038

RETAINER

Replaces J900299

8шт.

7

J932453

SPRING

8шт.

8

J921640

SEAL

Replaces J901097

8шт.

9

J920867

VALVE

4шт.

10

J920868

VALVE

4шт.

11

J280911

WEAR PAD

N.A. Only, Intake And Exhaust, Service Repair Only

1шт.

11

J910412

WEAR PAD

Europe Only, Intake And Exhaust, Service Repair Only

1шт.

12

J906854

SEAT, VALVE

Intake, Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust, Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD, Intake, Service Repair Only, Ream To Fit

4шт.

15

J904409

GUIDE

14 mm OD, Exhaust, Service Repair Only, Ream To Fit

4шт.

16

J906206

GUIDE

11 mm OD, Intake And Exhaust, Service Repair Only, Ream To Fit

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Includes 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert

1шт.

23

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

Replaces J900706

1шт.

24

A77902

NUT

3/8 - 24 NF, Replaces 425-116

1шт.

25

J910810

ROCKER

Includes 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

Replaces J900706

1шт.

28

A77902

NUT

3/8 - 24 NF, Replaces 425-116

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

31

J284377

PUSH ROD

Replaces J923262

8шт.

32

J931623

TAPPET

8шт.
