Запчасти Case 75XT (02-15) - CYLINDER HEAD - COVER (02) - ENGINE

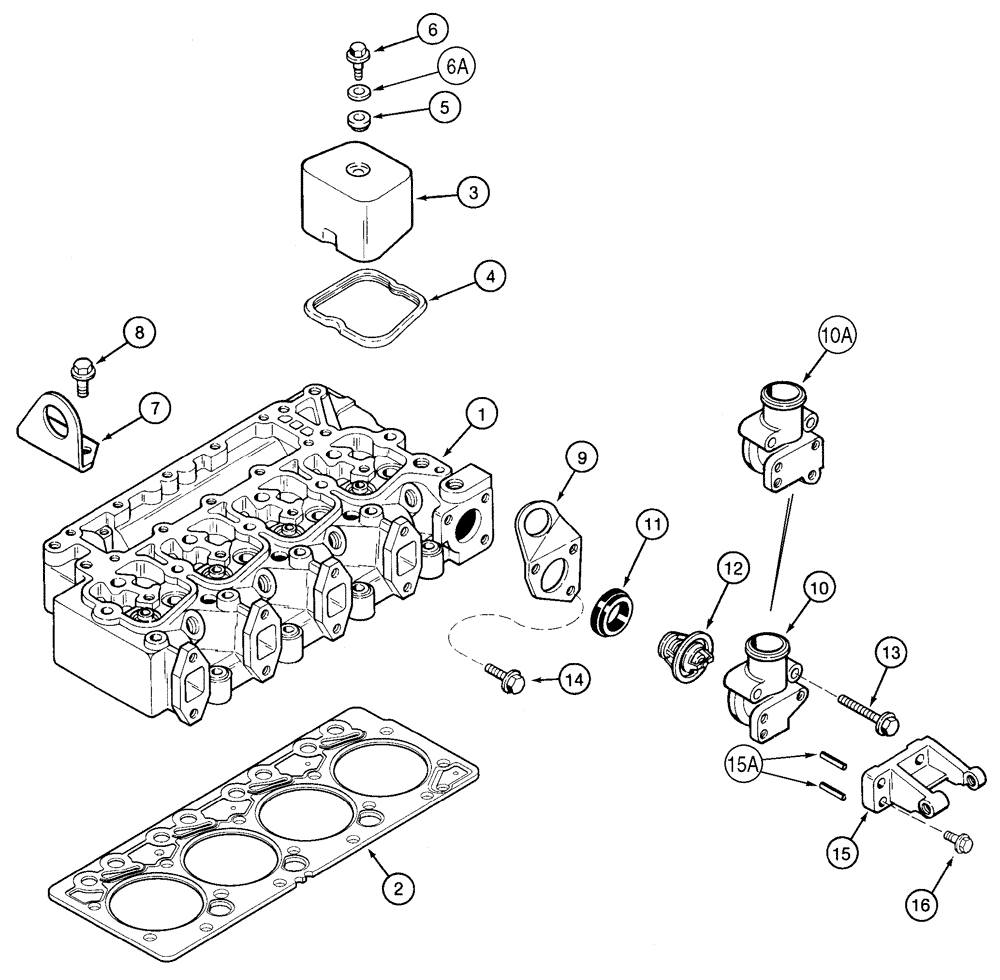

Схема запчастей Case 75XT - (02-15) - CYLINDER HEAD - COVER (02) - ENGINE
1
7
2
6
8
10
15a
15
13
4
3
11
16
6a
10a
14
5
9
12

Артикул

Название

Примечание

Количество

4-390 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

Head Assy, See Figure 02-16

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

1шт.

2

J283336

GASKET

0,25 mm

1шт.

2

J283338

GASKET

0,50 mm

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Replaces J928406

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"), No Longer Used, Order J935449

4шт.

7

J908118

BRACKET

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

M12 x 30; 10.9

2шт.

Thermostat and Housing

1шт.

9

J903757

BRACKET

1шт.

10

J914409

HOUSING

No Longer Used, Order J285102

1шт.

10a

J285102

HOUSING

1шт.

A77736

THERMOSTAT

Thermostat, Consists Of 11, 12

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

M8 x 70 mm

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

1шт.

15a

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.

Выбрано товаров: 24
