Запчасти Case 75XT (09-59) - DECALS (09) - CHASSIS

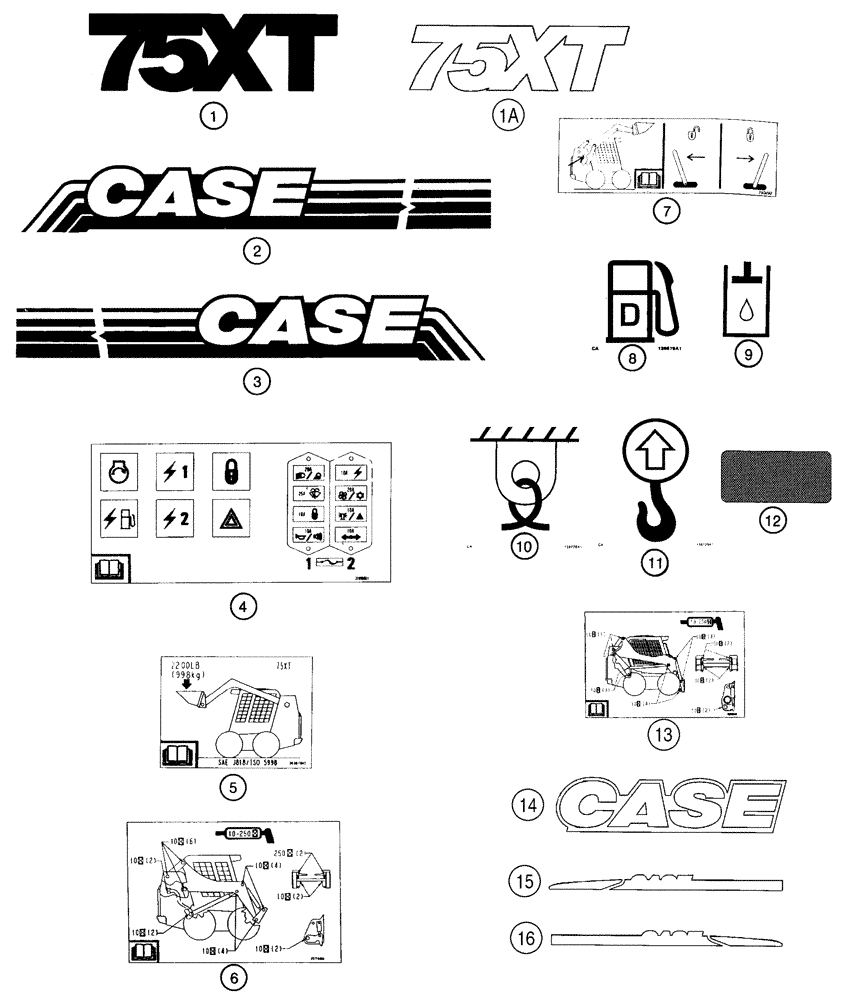

Схема запчастей Case 75XT - (09-59) - DECALS (09) - CHASSIS
15
9
13
5
7
12
14
8
1
4
11
6
3
10
1a
16
2

Артикул

Название

Примечание

Количество

1

303858A1

DECAL

6 x 19-3/4, If Used

2шт.

1a

419902A1

DECAL

3-5/8 x 11-3/4, If Used

2шт.

2

303845A1

DECAL

Upper Left Hand, If Used

1шт.

3

303844A1

DECAL

Upper Right Hand, If Used

1шт.

4

315955A1

DECAL

Fuse and Relay

1шт.

5

303878A2

DECAL

Operating Capacity

1шт.

6

257744A1

DECAL

Lubrication, No Longer Used, Order 331704A1, REF 13

1шт.

7

256365A2

DECAL

Lock/Unlock

1шт.

8

139879A1

DECAL

Diesel Fuel

1шт.

9

251753A1

DECAL

Hydraulic Fluid

1шт.

10

139728A1

DECAL

Tie Down

4шт.

11

139729A1

DECAL

Lift Hook

1-3шт.

12

294752A1

REFLECTOR,94mm L X 44mm W

Reflector, Red

2шт.

13

331704A1

DECAL

Lubrication

1шт.

14

417654A1

DECAL

3-7/16 x 15-15/16, If Used

2шт.

14

87389374

DECAL

Case; Replaces 417654A1

2шт.

14a

412276A1

DECAL

3-3/4 x 18-11/16, High Flow Models, If Used, Not Illustrated

1шт.

14a

87389371

DECAL

Case, Logo; Replaces 412276A1

1шт.

15

417661A1

DECAL

Case, With Stripes, Left Hand, If Used

1шт.

16

417663A1

DECAL

Case, With Stripes, Right Hand, If Used

1шт.

16a

430311A1

DECAL

Case, With Stripes, Right Hand, High Flow Models, If Used, Not Illustrated

1шт.

Выбрано товаров: 21
