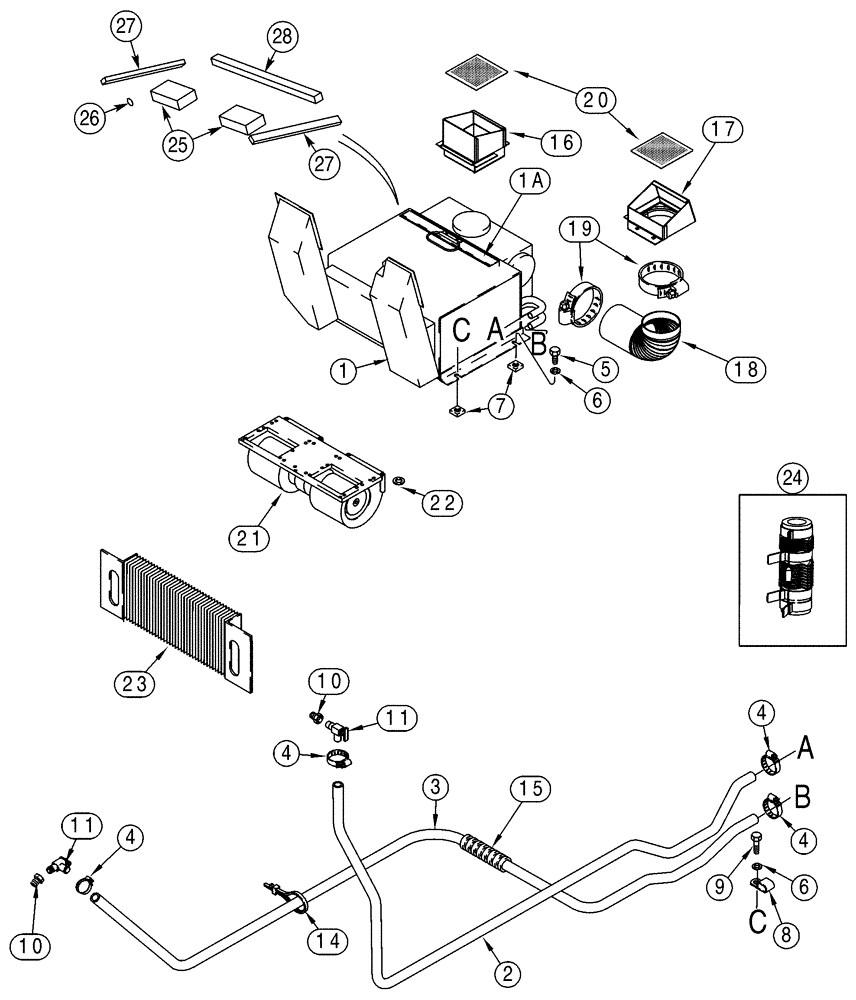

Запчасти Case 75XT (09-49) - HEATING SYSTEM - HEATER, FLOOR (09) - CHASSIS

1

REF

INSTRUCTION

Heater, If Equipped, Includes 1A, 21 - 23

1шт.

1a

282252A1

FILTER

Not Illustrated

1шт.

2

235286A1

HEATER HOSE,1795.00 mm

Supply

1шт.

3

235287A1

HEATER HOSE,2550.00 mm

Return

1шт.

4

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

5

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

4шт.

8

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

2шт.

11

301803R1

SHUT-OFF VALVE

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

15

276739A1

LOOM

1шт.

16

279208A1

DUCT

Center

1шт.

17

279212A1

DUCT

Right Hand

1шт.

18

283938A1

DUCT

1шт.

19

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

2шт.

20

303224A1

FILTER

2шт.

21

178454A2

BLOWER ASSY.

12V, Blower, See Figure 04-11

1шт.

178454A2R

REMAN-BLOWER

75XT

1шт.

178454A2C

CORE-BLOWER

Return Number

1шт.

22

307155A1

WASHER

2шт.

23

314946A1

COIL ASSY.

Heater

1шт.

24

401360A1

RESISTOR

Blower, Replaces 307153A1, 359504A1

1шт.

307155A1

WASHER

2шт.

314944A1

HARNESS

Blower Switch

1шт.

314945A1

HARNESS

Blower Switch

1шт.

315068A1

BALL KNOB

Blower

1шт.

393622A1

DECAL

Air Conditioning and Fan, See Figure 09-60, Ref 12

1шт.

313002A1

Seal, Not Serviced Separately, Includes 25 - 28

1шт.

25

295007A1

SEAL

135 mm (5-3/8 inch), Console, See Figure 09-12, Ref 17

2шт.

26

299274A1

COVER

25 mm (1 in), See Figure 09-09, Ref 42

1шт.

27

313149A1

SEAL

355 mm (14 in), ROPS Screen to Chassis, See Figure 09-35, Ref 30, 09-36, Ref 37

2шт.

28

313150A1

SEAL

774 mm (30-1/2 in), ROPS Side Front Toe Guard, See Figure 09-35, Ref 31, 09-36, Ref 38

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
