Запчасти Case 75XT (09-41) - CANOPY, ROPS - HEADLINER (09) - CHASSIS

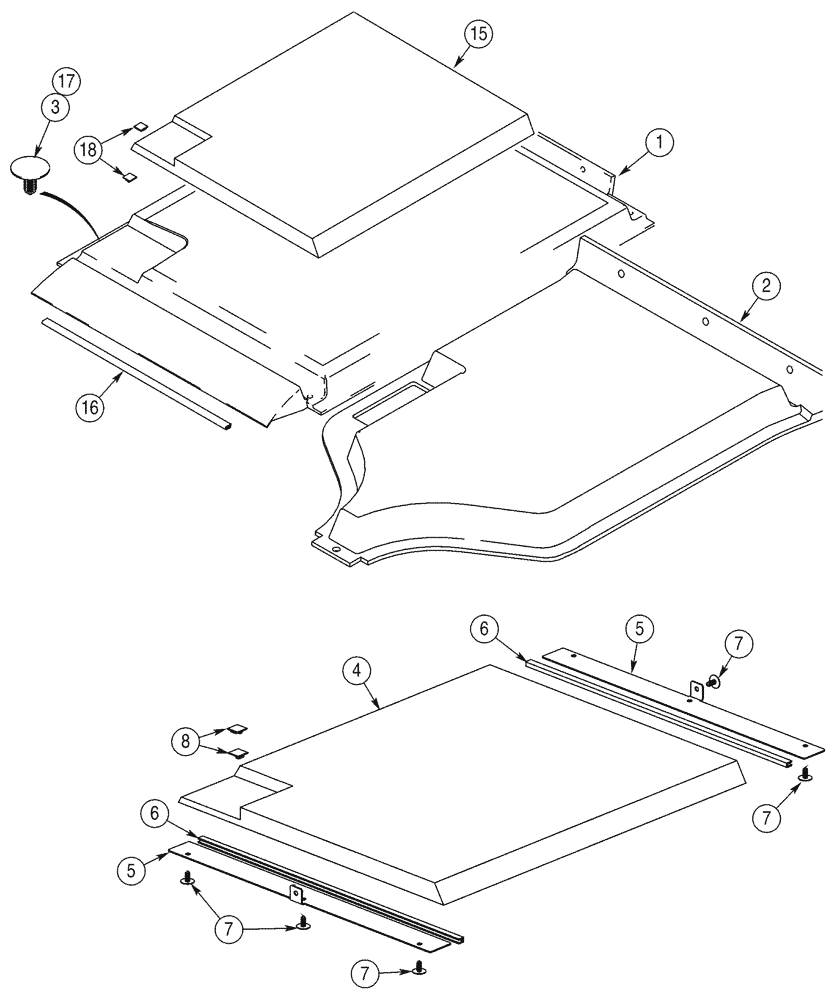

Схема запчастей Case 75XT - (09-41) - CANOPY, ROPS - HEADLINER (09) - CHASSIS
1
15
7
6
4
2
7
6
18
5
7
8
5
17
3
7
16

Артикул

Название

Примечание

Количество

1

189611A3

ROOF LINING

If Used

1шт.

2

280010A2

PANEL

Models with Deluxe Heater, Gray, If Used

1шт.

2

426116A1

PANEL

Models with Deluxe Heater, Tan, If Used

1шт.

3

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

1шт.

4

435675A1

PANEL

Headliner, Models Without Deluxe Heater, If Used

1шт.

5

314588A1

PLATE

Headliner Trim, Models Without Deluxe Heater

2шт.

6

315471A1

GASKET

Headliner, Retainer, Models Without Deluxe Heater

2шт.

7

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

6шт.

8

H439303

CLIP

2шт.

Europe Only

1шт.

15

313874A1

PADDING

Headliner, Models Without Deluxe Heater

1шт.

16

315471A1

GASKET

Headliner, Retainer, Models Without Deluxe Heater

1шт.

17

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Models Without Deluxe Heater

6шт.

18

H439303

CLIP

Harness, Models Without Deluxe Heater

2шт.

Выбрано товаров: 14
