Запчасти Case 75XT (09-40) - CANOPY, ROPS - HEAT SHIELD (09) - CHASSIS

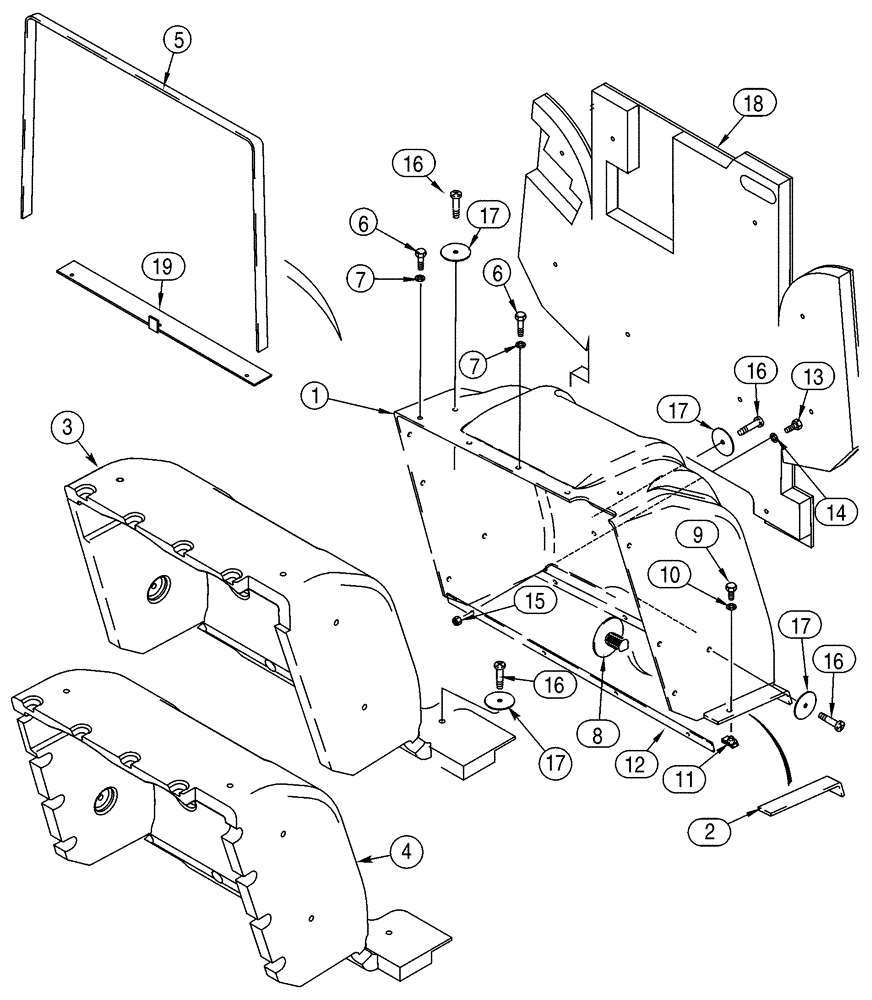

Схема запчастей Case 75XT - (09-40) - CANOPY, ROPS - HEAT SHIELD (09) - CHASSIS
4
18
2
5
12
1
7
17
8
11
10
14
16
19
17
15
6
17
16
6
13
7
9
17
16
16
3

Артикул

Название

Примечание

Количество

1

347214A1

BRACKET

Gray, If Used

1шт.

1

426114A1

SHIELD

Tan, If Used

1шт.

2

313324A1

SEAL

227 mm (9 in), Heat Shield, Models with Deluxe Heater

2шт.

3

335015A1

INSULATOR

No Longer Available, Order 335015A2, REF 4

1шт.

4

335015A2

INSULATOR

1шт.

5

250705A2

BAND

1650 mm

1шт.

6

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

8шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

10

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

11

127367A1

NUT,M6, U

2шт.

12

247118A1

BAND

1шт.

13

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

832-41306

NUT,M6 x 1, Cl 10

4шт.

16

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia, Push-In

11шт.

17

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

11шт.

18

313457A1

INSULATOR

Europe Only

1шт.

19

314588A1

PLATE

Models Without Deluxe Heater, Headliner, Europe Only

2шт.

Выбрано товаров: 20
