Запчасти Case 75XT (09-29) - SEAT, MOUNTING - NON-SUSPENSION (09) - CHASSIS

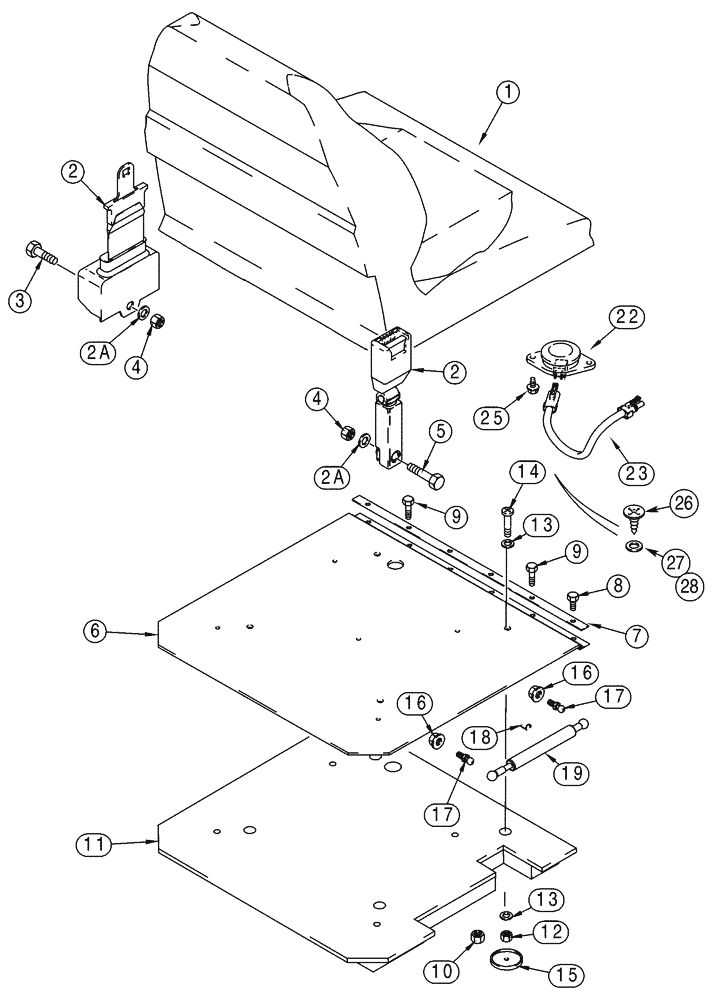

Схема запчастей Case 75XT - (09-29) - SEAT, MOUNTING - NON-SUSPENSION (09) - CHASSIS
16
2a
10
6
13
2a
3
11
14
19
28
16
23
4
15
9
7
2
12
1
9
25
13
4
27
8
5
26
2
17
18
17
22

Артикул

Название

Примечание

Количество

1

308306A2

SEAT

Replaces 308306A1, Includes 22

1шт.

2

249116A1

SAFETY BELT ,50.80 mm W

Includes 2A

1шт.

2a

NSS

NOT SOLD SEPARAT

Washer

2шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

4

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

5

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

6

302136A1

LARGE PLATE

PLATE, LARGE

1шт.

7

259875A1

CROSSMEMBER

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

9

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

10

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

11

245174A1

INSULATOR

1шт.

12

824-1405

NUT,M5, Cl 5

If Used

5шт.

13

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), If used

10шт.

14

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

If Used

5шт.

15

E99641

CAP

If Used

5шт.

16

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

17

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

18

254307A1

CLIP

2шт.

19

189787A2

SHOCK ABSORBER

1шт.

291768A1

ASSEMBLY

Slide, Consists Of 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Slide, Left Hand, Order 291768A1, Not Illustrated, See Figure 09-33, REF 17

1шт.

21

NSS

NOT SOLD SEPARAT

Slide, Right Hand, Order 291768A1, Not Illustrated, See Figure 09-33, REF 18

1шт.

22

242306A2

SWITCH

Operator Presence

1шт.

23

302137A2

HARNESS

Seat, Two Connector

1шт.

25

NSS

NOT SOLD SEPARAT

Bolt

4шт.

26

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia, If Used

5шт.

27

D136108

WASHER

If Used

5шт.

28

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD, If Used

5шт.

Выбрано товаров: 29
